Grandview Ultimate PP-G Series Manual

②
Installation of screen:
Referring to "Customized non-standard 8xed frame screen installation
drawing", Firstly, connecting the mounting brackets to the frame,
measure the installation holes of several mounting brackets accurately
and draw lines and punch holes in the wall which is going to install.
Then uninstall the brackets from the screen, use tapping screws and
expansion 8xture to 8x matched mounting brackets on the wall. Make
sure mounting brackets are 8xed 8rm. Hand the screen onto upper
mounting bracket and tighten the screws between the bracket and the
frame.
connect to the frame
use use tapping
screws and
expansion 8xture
to 8x 8rm on
the wall
frame
Maintainance:
In order to maintain the screen, please retract fully
the screen when it is not used. Before retraction,
pleasecheck the front and rear side of screen
fabric and makesure there is no apparent dirt,
insects, or something else might affect the fabric
material. If there aresundries or dirty, please use
*
Locking parts should be,
soft brush or cloth to cleanit off.
referring to "Customized
non-standard 8xed
frame screen installation
Clean the screen material:
drawing", put into the
frame in order before
frame assembling
Please mix warm water with soft detergent to ruboff
8nished.
the dirt on casing or fabric material. Afterrubbing,
please use soft cloth or towel to get dry ofit. Do not
leave it dry by itself.
mounting bracket
Please do not use any dissolvent, chemical agentor
of curved frame
any tool with strong friction for clean, which would
cause permanent damage to the screen.
locking bezel
inside the
frame
installation drawing
GRANDVIEW CRYSTAL SCREEN CO., LTD.
Add: No. 43 South International Trade Avenue, Hualong
Town,Panyu, Guangzhou, GuangDong, China
Tel: +86-20-84899499

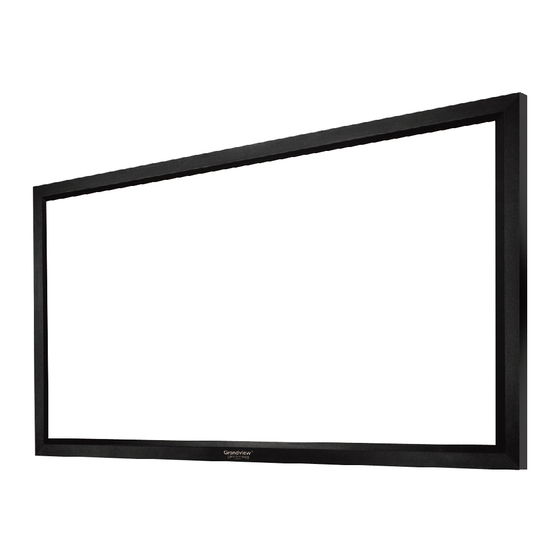

Utimate Fixed Frame
Screen Manual
Model: PP-Gxx(R1)
