Proofer Oven with Touch
screen Controls (TSC)
Models:
TSC3-6/18
TSC3-3/9
CAUTION:
Please read this manual completely before attempting
to install, operate or service this equipment
WARNING: Cancer and Reproductive Harm -
www.p65warnings.ca.gov
This manual is Copyright © 2022 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Installation and
Operation Manual
Rev M 08/11/2022
P/N 120085
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Duke TSC3-6/18
Summary of Contents for Duke TSC3-6/18
- Page 1 WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov This manual is Copyright © 2022 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.
-
Page 2: Table Of Contents

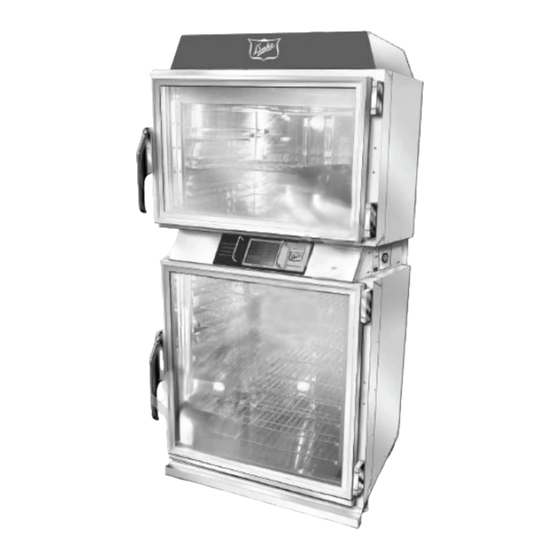

The Duke TSC (Touch Screen Control) Proofer Oven was developed in response to the Customer's need for uniform baking capabilities and to provide consistently high quality just-baked bread.The Duke Proofer Oven utilizes Duke’s unique directional convection airflow technology that provides even heat... -
Page 3: Important Safety Instructions
• Do not use corrosive chemicals on this equipment. • This equipment must be serviced by qualified personnel only. Contact the nearest Duke authorized service facility for adjustment or repair. • Do not block or cover any openings on the unit. - Page 4 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls The following warnings and cautions appear throughout this manual and should be carefully observed. • Turn the unit off, disconnect the power source and allow unit to cool down before performing any service or maintenance on the unit.
-
Page 5: Specifications
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls SPECIFICATIONS Patent Pending - Model TSCM, TSC3 Unit Weight: 580 lbs / 263 kg Shipping Weight: 630 lbs / 286 kg Carton Box Shipping Weight: 720 lbs / 327 kg Wooden Crate Line Ratings - TSCM &... -
Page 6: Main Features
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls MAIN FEATURES LOW VOLTAGE LIGHTING SYSTEM CONVECTION 12V HALOGEN LAMP OVEN 10WATT MAX 3 SHELVES COOL TOUCH DOORS AND AIR- WASH HINGES DOOR ARE REVERSIBLE TOUCH SCREEN CONTROL PANEL... - Page 7 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls DOMESTIC INTERNATIONAL (CE) FRONT VIEW - DIMEMSIONS FRONT VIEW - DIMENSIONS 945.4mm (37.22in) 945.4 mm (37.22 in.) 1975.6mm 2027.7mm 2006.2mm (77.78in) (79.83in) (78.985in) 1826.4mm (71.906in) 1826.4mm (71.90in) 1086.6mm 1086.6mm...
- Page 8 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls SIDE VIEW - DIMENSIONS 770.5mm (30.34in) 665.1mm (26.19in) 159.8mm (6.30in) Light Circuit High Limit Breaker Reset Button Side Panel 92mm (3.62in)
- Page 9 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls BACK VIEW - DIMENSIONS 472.7mm (18.61in) ELECTRICAL INLET 246.8mm (9.72in) WATER INLET 919mm (36.18in) W/O OPTIONAL 1149.2mm BACK FLOW VALVE (45.24in) 585.2mm (23.04in) W/OPTIONAL BACK FLOW VALVE WATER OUTLET W/OPTIONAL BACK FLOW VALVE 700.6mm...
-
Page 10: Installation
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls INSTALLATION UNPACKING UNIT ELECTRICAL AND SUPPLY CONNECTIONS Connection of the unit to the mains supply Inspect the shipping carton and/or container, MUST be performed by an authorized person... - Page 11 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls INSTALLATION - continued INSTALLATION 1. This unit can be converted to other mains HAZARDOUS VOLTAGE RISK OF ELECTRIC SHOCK supply configurations by Duke Manufacturing approved service personnel. Call Duke Service...
- Page 12 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls INSTALLATION - continued TECHNICAL DESCRIPTION AND APPLICATION NOTES FOR TSC PROOFER OVEN BACK FLOW PREVENTER SYSTEM Check with your local authority having jurisdiction regarding approvals for connecting the Duke TSC...
- Page 13 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls INSTALLATION - continued INSTALLATION OF WALL-BRACKETS INSTALLATION OF WATER FILTER NOTE: Verify interconnections and function prior 1. Install new filter by removing sanitary cap from to installing optional wall brackets...
- Page 14 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls OPERATING INSTRUCTIONS PROOFER OVEN START-UP 4. Verify Humidification of the proofer. Humidification will begin automatically. Humidity level will be controlled according to user-selected %RH set point. ELECTRICAL SHOCK HAZARD.
-
Page 15: Operating Instructions
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls OPERATING INSTRUCTIONS Touch Screen Definitions Main Tool Bar Screen Sleep Button* Info Button Oven Recipe Information Bar 370 F 370 F Recipe Recipe Temp Time Proofer Recipe Information Bar... - Page 16 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls OPERATING INSTRUCTIONS - continued DAILY OVEN/PROOFER START-UP PROOFER OPERATING INSTRUCTIONS 1. Turn power on to the unit with the power switch on the left side of the unit. Boot Screen is displayed 1.
- Page 17 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls OPERATING INSTRUCTIONS - continued 3. Once a Proofer recipe has been selected (i.e. 7. Load the first proofer section with dough and ) and the display has changed to...
- Page 18 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls OPERATING INSTRUCTIONS - continued 2. Allow the oven to preheat 20–30 minutes and 9. You can add 5 minutes to proofing time by touching button adjacent to any of the respective keep the oven door closed, except during count down timers.
- Page 19 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls OPERATING INSTRUCTIONS - continued BAKING TIPS 5. When the bake is complete, an alarm will beep to alert the operator. Touch the Timer • Always select the oven recipe and allow preheat open the oven door to cancel the alarm.
-
Page 20: Care And Cleaning
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls CARE AND CLEANING PROOFER OVEN INTERIOR AND RACKS ARE VERY HOT AND COOL SLOWLY. ALLOW TO COOL BEFORE HANDLING. CAUTION ELECTRICAL SHOCK HAZARD: DO NOT WASH WITH WATER JET OR HOSE. -
Page 21: Programming Controls
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls PROGRAMMING CONTROLS 3. To edit Time, Temperature, Humidity or To access the SPECIAL FUNCTIONS, touch seasoning (proofer only) touch the button on the Main Tool Bar. button adjacent to the field you want to change. - Page 22 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls PROGRAMMING CONTROLS - continued • LANGUAGE – Touching will display a list of included languages. a. Touch the preferred language button that best meets your needs and press the button to save.
- Page 23 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls PROGRAMMING CONTROLS - continued Recipe Export Recipe Import 1. With the unit powered on, insert a BLANK USB 1. With the unit powered on, insert a USB drive, drive into the USB port on the front of the unit.
-
Page 24: Troubleshooting
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls TROUBLESHOOTING PROBLEM 1. Oven does not heat with oven switch in the ON position and Oven Temperature not set at 0°. a. Are oven indicator lights on? Observe Oven Fan. Go to “b”. -
Page 25: Wiring Diagram
Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls WIRING DIAGRAM FOR AUTHORIZED PERSONNEL ONLY Wire Diagram – TSC Gen 3 208/240V 3P 60Hz WD - TSC Gen3 208/240V 1P & 3P (3 Phase) Antenna Antenna 7.0" Touch Screen Display 7.0"... - Page 26 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls WIRING DIAGRAM FOR AUTHORIZED PERSONNEL ONLY Wire Diagram - TSC Gen3 CE / International Antenna Antenna 7.0" Touch Screen Display 7.0" Touch Screen Display 230V 1P 50Hz WD - TSC Gen3 400V 50Hz 3N & 230V 50Hz 1P...
- Page 27 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls...
- Page 28 Installation and Operation of: DUKE TSC3 Proofer Oven with Touch Screen Controls Duke Manufacturing Co. Phone: 314-231-1130 Toll Free: 1-800-735-3853 2305 N. Broadway www.dukemfg.com Fax: 314-231-5074 St. Louis, MO 63102...
