Vaccuperm VGA-113
Gas dosing regulator
Installation and operating instructions
Vaccuperm VGA-113
Installation and operating instructions
Other languages
http://net.grundfos.com/qr/i/QR98028175
GRUNDFOS INSTRUCTIONS
Handling chlorine
Installation and operating instructions
(all available languages)
http://net.grundfos.com/qr/i/96681297
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grundfos Vaccuperm VGA-113
Summary of Contents for Grundfos Vaccuperm VGA-113
- Page 1 GRUNDFOS INSTRUCTIONS Vaccuperm VGA-113 Gas dosing regulator Installation and operating instructions Vaccuperm VGA-113 Handling chlorine Installation and operating instructions Installation and operating instructions Other languages (all available languages) http://net.grundfos.com/qr/i/QR98028175 http://net.grundfos.com/qr/i/96681297...
- Page 3 Vaccuperm VGA-113 English (GB) Installation and operating instructions ............4 Deutsch (DE) Montage- und Betriebsanleitung .
-
Page 4: Table Of Contents
Target group......5 Safety of the system in the event of product failure ..5 The symbols and hazard statements below may appear in Grundfos installation and operating instructions, safety instructions and Working with chemicals . -
Page 5: Target Group

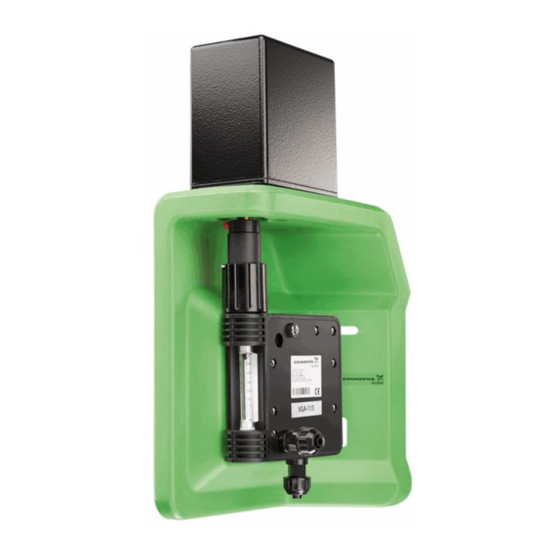

Make sure that parts in contact with the chemicals are resistant to the chemicals under the specific operating conditions. When working with chlorine, see also the guidelines "Handling chlorine" on Grundfos Product Center: http:// net.grundfos.com/qr/i/96681297. 2. Product introduction VGA-113-391 dosing regulator with servomotor 2.1 Intended use... -
Page 6: Installation Examples
2.3 Installation examples Low-budget manual chlorine extraction from one or more cylinders Vaccuperm manual chlorine gas dosing systems with VGA-111 vacuum regulators and a VGA-113-110 dosing regulator. Pos. Component VGA-111 vacuum regulator Chlorine gas adsorption filter 189 change-over device VGA-113-110 dosing regulator VGB injector Injection unit... -
Page 7: Operating Principle Of A Vga-113 Dosing Regulator
Manual or automatic chlorine extraction from two banks of cylinders Vaccuperm manual or automatic chlorine gas dosing systems with VGA-111 vacuum regulators and a VGA-113-311 manual dosing regulator or a VGA-113-391 automatic dosing regulator. Pos. Component VGA-111 vacuum regulator with heated liquid trap (pressure inlet right) VGA-111 vacuum regulator with heated liquid trap (pressure inlet left) Chlorine gas adsorption filter 189 change-over device... -
Page 8: Identification
3. Identification Differential-pressure regulator VGA-113-25/11-M0,Y-G,C3 3.1 Nameplate Without With Logo VGA-113-25/11-M0,Y-G,C3 Grundfos Product certificate VGA-113-25/11-M0,Y-G,C3 Certificate 3.1 (EN 10204) 4. Delivery and handling Pos. Description 4.1 Handling Type designation Observe when transporting and storing the VGA-113 dosing Product number regulator: Serial number •... -
Page 9: Installation
5. Installation 5.1 Mechanical installation WARNING 5.1.1 Installation location Toxic material Death or serious personal injury • Choose a mounting place that is free from vibrations. ‐ Installation must be carried out by authorised and • Observe the permissible ambient temperature. trained experts. -
Page 10: Electrical Installation
5.1.3 Connecting the VGA-113 dosing regulator to the vacuum 5.2.1 Servomotor wiring diagrams lines WARNING 250V AC / 30V DC Toxic material Death or serious personal injury ‐ Before starting to connect, make sure that the valves of all chlorine containers are closed. 4(0) - 20 mA Only tighten the union nuts of the vacuum connections by hand, do not use any tools. -
Page 11: Startup
6. Startup 7.1 Starting the chlorine gas dosing system 1. Close the rate valve at the dosing regulator using the adjusting WARNING knob. Toxic material Death or serious personal injury 2. Open the shut-off valve at the injection unit. ‐ Startup must be carried out by authorised and trained 3. -
Page 12: Setting The Dosing Flow Automatically With The Vga-113-311 Dosing Regulator
7.4 Setting the dosing flow automatically with the 7.6 Stopping the chlorine gas dosing system VGA-113-311 dosing regulator Do not stop the chlorine gas dosing system by closing the The VGA-113-311 dosing regulator is checked and preadjusted in rate valve. the factory with the servomotor. -
Page 13: Fault Finding
8. Fault finding 8.4 Servomotor does not run Cause Remedy 8.1 Maximum dosing flow is not reached Servomotor is switched to • Switch servomotor to Cause Remedy manual operation. automatic operation. See the supplier manual of the Insufficient injector vacuum. •... -
Page 14: Maintenance
9. Maintenance Moist parts can cause corrosion. WARNING Toxic material Death or serious personal injury Mount all parts in reverse sequence. ‐ Cleaning and maintenance must be carried out by authorised and trained experts. 9.3 Cleaning the rate vale ‐ Observe the material safety data sheets (SDS) of the handled chemicals. -
Page 15: Decommissioning
11. Replace the O-rings of the spindle by new ones, slightly apply PTFE grease to them. Do not apply any grease to the groove of the spindle. 12. Replace the O-ring of the rate valve cartridge. Mount all parts in reverse sequence. 10. -
Page 16: Dimensions
11.2 Dimensions VGA-113-110, manual version VGA-113-311, manual version VGA-113-391, automatic version with servomotor Type VGA-113-110 48.5 8x11 VGA-113-311 8x11 VGA-113-391 70.5 8x11... -
Page 17: Service Kits For Vga-113
12. Service kits for VGA-113 (1.54) 3000g 1.55 25/40/100g 1.10 1.57 1.12 1.58 1.32 1.26 2.10 1.28 1.29 2.71 1.81 1.30 1.59 1.62 Drawing 1 1.54 1.57 1.55 1.55 1.58 2.10 1.10 1.32 1.30 1.59 1.62 Drawing 2 Description Content Drawing Product number Service kit for VGA-113 with differential-pressure regulator... -
Page 18: Disposing Of The Product
This product or parts of it must be disposed of in an environmentally sound way. 1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Grundfos company or service workshop. The crossed-out wheelie bin symbol on... - Page 19 Standard used: EN IEC 63000:2018 * Only valid for products with electrical components This EU declaration of conformity is only valid when published as part of the Grundfos installation and operating instructions (publication numbers 95714202, 95714224, 98028175, 95714246, 95714278, 95713929, 95714262, 95714296).
- Page 20 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2019 Standard used: EN IEC 63000:2018 * Only valid for products with electrical components. This UK declaration of conformity is only valid when accompanying Grundfos instructions. UK Importer: Grundfos Pumps ltd. Grovebury Road, Leighton Buzzard, LU7 4TL. Bjerringbro, 01.March 2022...
- Page 21 3-Бөлүк: жабдуунун фирмалык тактасында жайгашкан даярдоо мөөнөтү тууралуу маалымат. Шайкештикти баалоо боюнча маалымат алуу үчүн: Газ эсептөө системасы Vaccuperm VGS-141, VGS-143, VGS-145; Дозатор Vaccuperm VGA-113, VGA- 117 Бажы биримдигинин техникалык регламенттердин талаптарынын сакталышына тастыктоосунан өткөн: TR КС 004/2011 "начардыгы жабдуулардын коопсуздугу жөнүндө"; TR КС 010/2011 "машиналардын...
- Page 22 Vaccuperm VGA-113, VGA-117, VGS-141, VGS-143, VGS-145 Շահագործման ձեռնարկ Տվյալ սարքավորման շահագործման ձեռնարկը բաղկացած է մի քանի մասերից. Մաս 1. սույն «Շահագործման ձեռնարկ»: Մաս 2. էլեկտրոնային մաս. այն է՝ «Անձնագիր: Մոնտաժման և շահագործման ձեռնարկ» տեղադրված «Գրունդֆոս». Անցեք փաստաթղթի վերջում նշված հղումով.
- Page 23 98028175 09.2022 ECM: 1334945 www.grundfos.com...
