FAB209-3B1 Quick Installation Guide

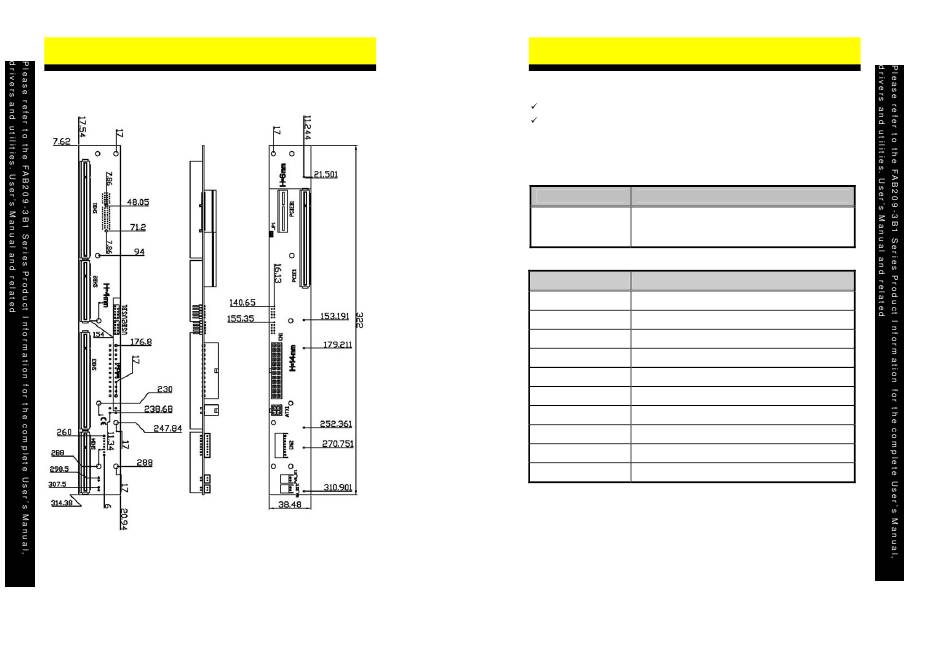

Board Dimensions
4
©Copyright 2012 Axiomtek Co., Ltd.
Version A1 May 2012
Printed in Taiwan
9419B209010E
FAB209-3B1 Quick Installation Guide
I.
Checklist
FAB209-3B1 3-Slot ATX-Supported PICMG 1.3 Bus Backplane x 1
Quick Installation Guide x 1
Note1: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if any damaged components.
II.
Jumper List
Jumper
Auto Power Button Function
JP1
Open : Disable(Default)
III.
Connectors
Connector
ATX1
4Pin ATX +12V Power connector
CN2
8Pin Power Output Connector
CN1
24Pin ATX Power Connector
USB1
USB 0,1
USB2
USB 2,3
PWR_BT1
ATX Power button connector
HW_RST1
Hardware Reset Connector
SHB1 – SHB4
PICMG 1.3 Full-SIZE SBC Slot
PCIE1
PCIe x16 Slot
PCIEB1
PCIe x4 Slots
