Growatt MIC 600-3300TL-X Quick Manual

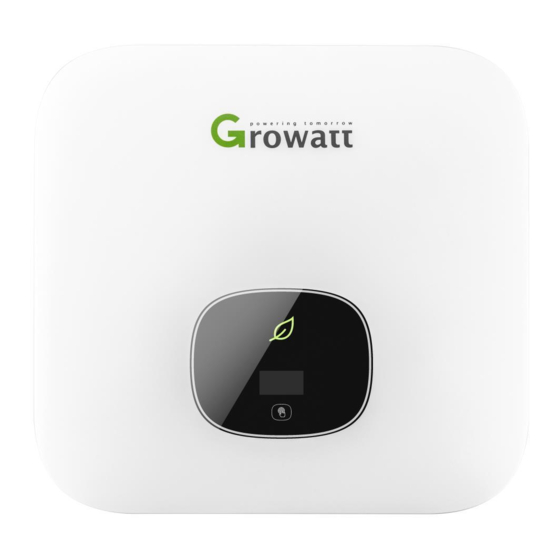

Overview
1 .
1 2 3 4
(1)Front panel (2)Touch button (3)OLED screen
(6)DC switch (7)Vent valve (8)PV terminal
(11)DRM port (12)AC terminal
Note：
1.This document is for quick installation guidance only, please refer to User Manual for more details.
2.Growatt shall not be liable for any damage resulting from unproper installation.
2 . Installation
System overview
2.1 Installation requirements
2.2
Wall mounting
185
12
Note：
1.When drilling holes in the wall, avoid water and electricity pipes, otherwise it may cause danger.
MIC 600-3300TL-X Quick Guide
6 7 9 10 11 12
5 8
(4)LED indicator (5)Heat sink
(9))COM port (10)USB port
274
≥500mm 223.9 25
≥300mm ≥300mm
≥500mm
2.3
Communication module installation
Install
▲Up Inverter side
3 .
Electrical connection
Please prepare the cable before connecting as follows.
No. Cable name
Protective
1
grounding wire
2 AC output wire
3 PV input wire
Communication
4
wire
3.2
3.1
Grounding
Type 1
138
Type 2
Type 3
3.3
DC connection
3.3.1 PV input terminal installation
1
Positive metal terminal 8- 10mm
Negative metal terminal
4
Positive metal terminal
Negative metal terminal
Uninstall
Inverter side
Type Recommend model
Single multi-core
6mm²
yellow-green wire
Two or three polychromatic
6mm²
multi-core copper wires
4mm² - 6mm²
PV wire（such as PV1-F)
RS485 /
AC output connection
2
4mm² - 6mm²
4mm² - 6mm²
Please make sure the cable can not be
pulled out after pressing.
5
Inverter side
Inverter side
Note:
1.Please make sure all switches are in "OFF"
position before wiring. For personal safety,
please do not operate with electricity.
2.If the diameter of the cable does not match
the terminal, or the cable is aluminum wire,
please contact our after-sales personnel.
3
Negative metal terminal
Pull the PV cable make sure there
is no loose or shaking.
Make sure the cable polarity is
correct and voltage is less than
500 or 550V.
