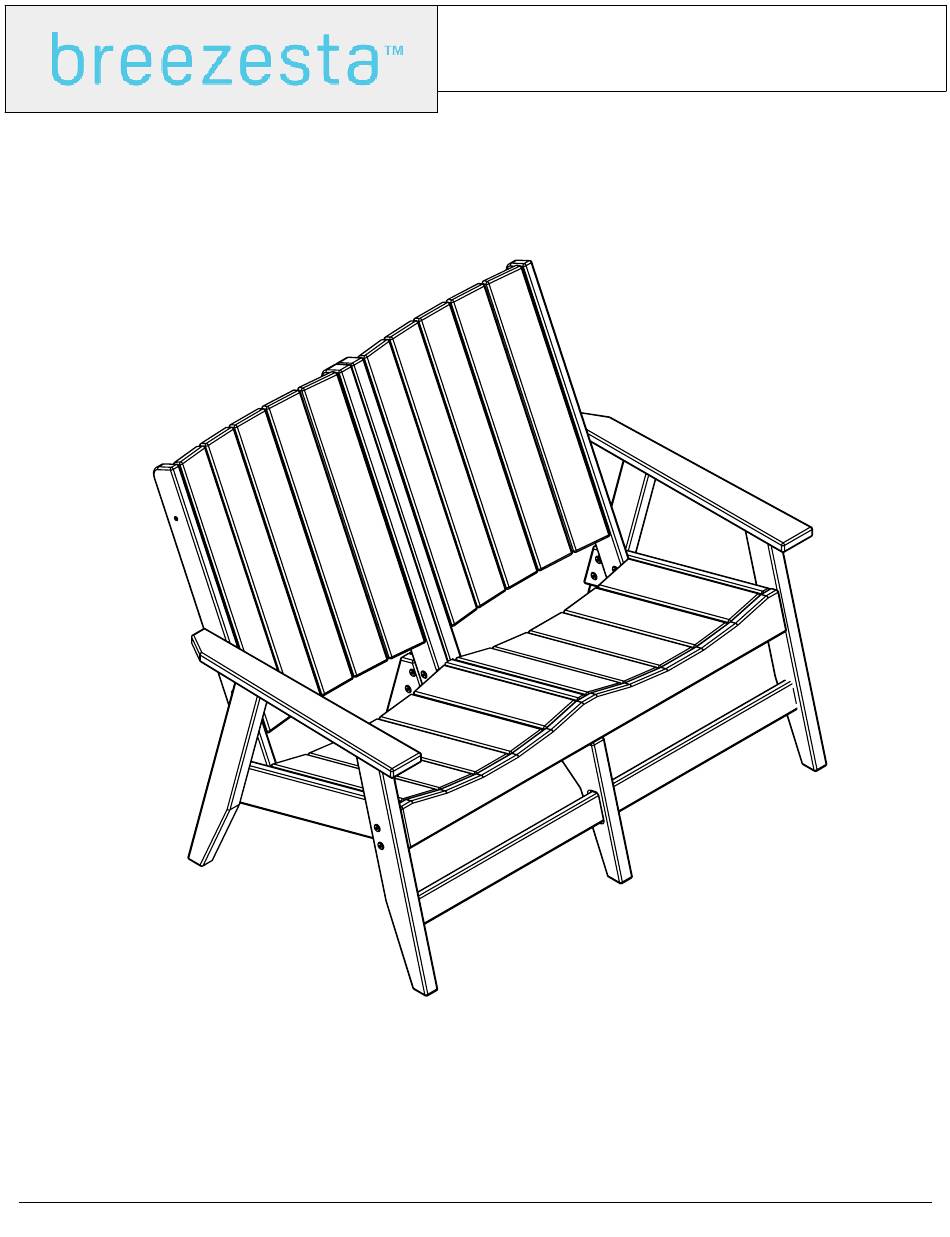

- Page 1 CHILL LOVESEAT CI-1805 CI-1805 Assembly...
- Page 2 #8 X 1-3/4" TORX SCREW H-0000-S8175 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16 X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16 X 2-1/8" CHAIR BOLT H-0000-CB516218 6-INCH T20 TORX BIT H-0000-T20X6 T20 & T25 TORX BIT H-0000-CTD T25 L-KEY H-0000-T25LK CI-1805 Assembly...
- Page 3 L-Key (h). Arm/Leg Assembly from Step 1 Fasten the Lefthand Arm/Leg assembly from Step 1 to the Seat Base (E). Fasten the Back Leg using (2) of hardware (d). Fasten the Front Leg using (2) of hardware (e). CI-1805 Assembly...
- Page 4 4 bottom bolts. Repeat the process for the RH Back Assembly (J), bolt positions 3 & 4. Finally, hand- tighten the middle bolts (position 5). Once all bolts are seated, tighten them fully in the numeric order shown. CI-1805 Assembly...
