COASTAL SWIVEL DINING CHAIR
CO-0100
REV05-02/21
1
CO-0100 Assembly

Advertisement

loading
Need help?

Need help?

Do you have a question about the CO-0100 and is the answer not in the manual?

Questions and answers

Related Manuals for Breezesta CO-0100

Summary of Contents for Breezesta CO-0100

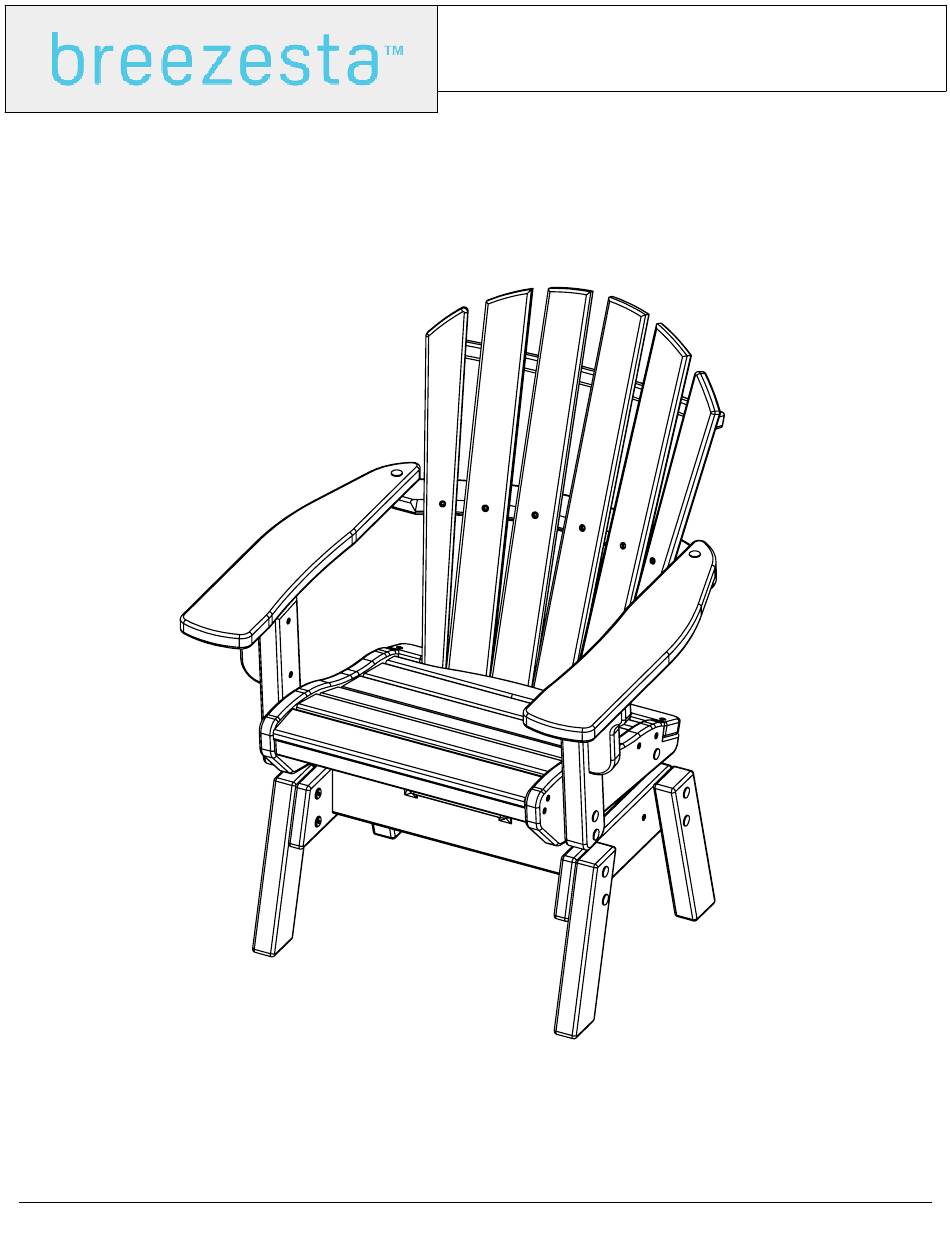

  • Page 1 COASTAL SWIVEL DINING CHAIR CO-0100 REV05-02/21 CO-0100 Assembly...
  • Page 2 1" HEX BOLT 5/16" DIA H-0000-HB1 #8 X 2" TORX SCREW H-0000-S82 #8 X 2-1/2" TORX SCREW H-0000-S825 DOUBLE SCREW H-0000-DS T25 & T20 TORX BIT H-0000-CTD COASTAL SWIVEL ASSEMBLY-GEN 3 H-0000-SAC3 Suggested Tools: Drill, Plastic Mallet, 1/2" Socket Wrench CO-0100 Assembly...
  • Page 3 Rotate top plate slightly to allow access to the holes in the bottom plate of the swivel. (Swivel at left is shown without seat supports for clarity). Attach Seat Assembly D to the swivel assembly i using Hardware d. CO-0100 Assembly...
  • Page 4 Attach Back Assembly I to the seat Attach the two arm assemblies to the seat base using hardware c. base using hardware e, 1 per side. Attach the Back Assembly center support to each arm using hardware b. CO-0100 Assembly...
