LEGRAND CHIEF Koncis DMA1 Quick Setup Manual

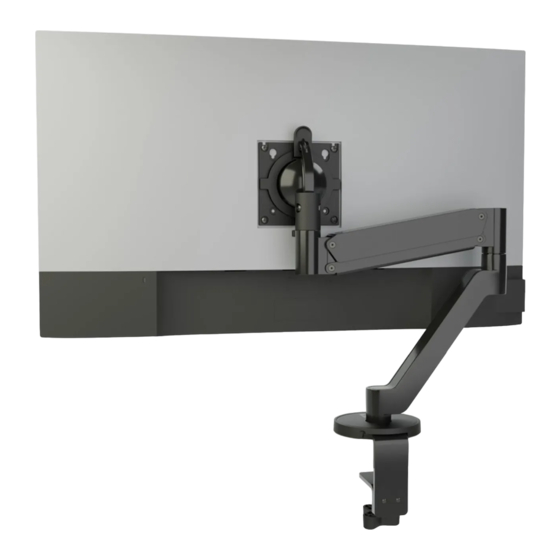

DMA1 Single Monitor Arm
DMA2 Dual Monitor Arm

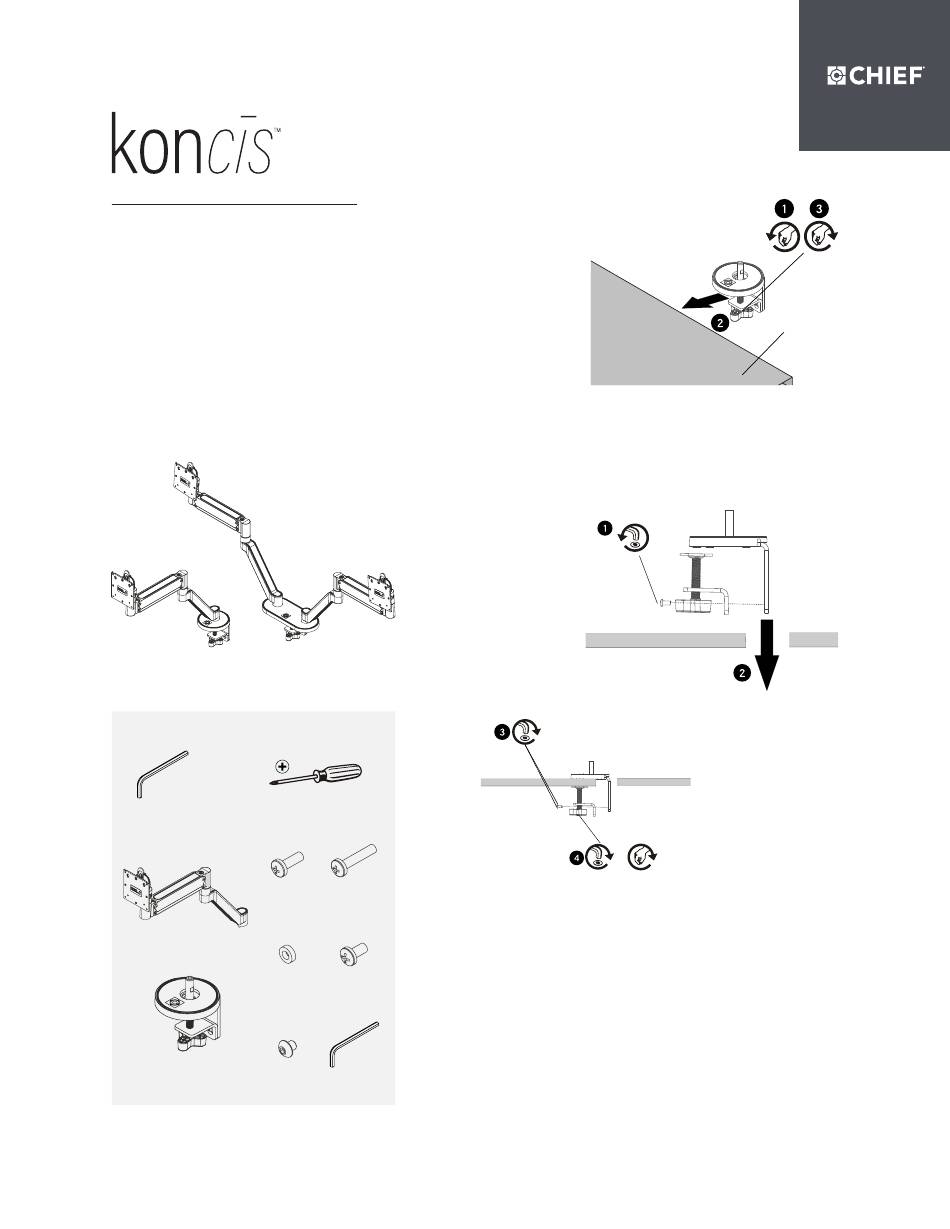

Quick Setup Guide
For complete installation instructions, refer to the
Installation Manual included with this product.
This Quick Setup Guide is meant to provide only an overview
of the various installation steps.
ALWAYS read the Installation Instructions in its entirety before
beginning the Installation.
DMA2
DMA1
Tools Required for Installation
5/32" (included)
Parts
C (4/8)*
M4 x 10mm
A (1)
[Arm assembly]
(DMA1 shown)
E (4/8)*
M10 x 5.3 x 10
B (1)
[Base assembly] G (12)*
(DMA1 shown) #10-32-3/8"
8800-003249, Rev00
Option A
Step 1: Clamp Base to Desk Edge Option
Loosen clamp screw on base, place on desk
and tighten.
Option B
Step 1: Clamp Base through Grommet Hole Option
Remove lower piece of clamp from assembly by removing two
button head cap screws and install remaining part of clamp
through grommet hole.
#2
D (4/8)*
M4 x 20mm
WEIGHT CAPACITY WARNING
Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is
the installer's responsibility to make sure the combined weight of all components and accessories
attached to the DMA Series Monitor Arm up to (and including) the display is between the weight
ranges listed below. Use with products heavier than the maximum weight indicated may result in
collapse of the mount and its accessories causing possible injury. Use with products lighter than
F (4/8)*
the minimum weight indicated may result in the mount not functioning properly.
M4 x 4mm
DISCLAIMER
Legrand | AV and its affiliated corporations and subsidiaries (collectively "Legrand | AV"), intend
to make this manual accurate and complete. However, Legrand | AV makes no claim that the
information contained herein covers all details, conditions or variations, nor does it provide
for every possible contingency in connection with the installation or use of this product. The
information contained in this document is subject to change without notice or obligation of any
H (1)
kind. Legrand | AV makes no representation of warranty, expressed or implied, regarding the
5/32"
information contained herein. Legrand | AV assumes no responsibility for accuracy, completeness
or sufficiency of the information contained in this document.
2
x
Reattach removed piece of clamp and
2 screws and tighten clamp screw.
x
or
desk
10/2020
