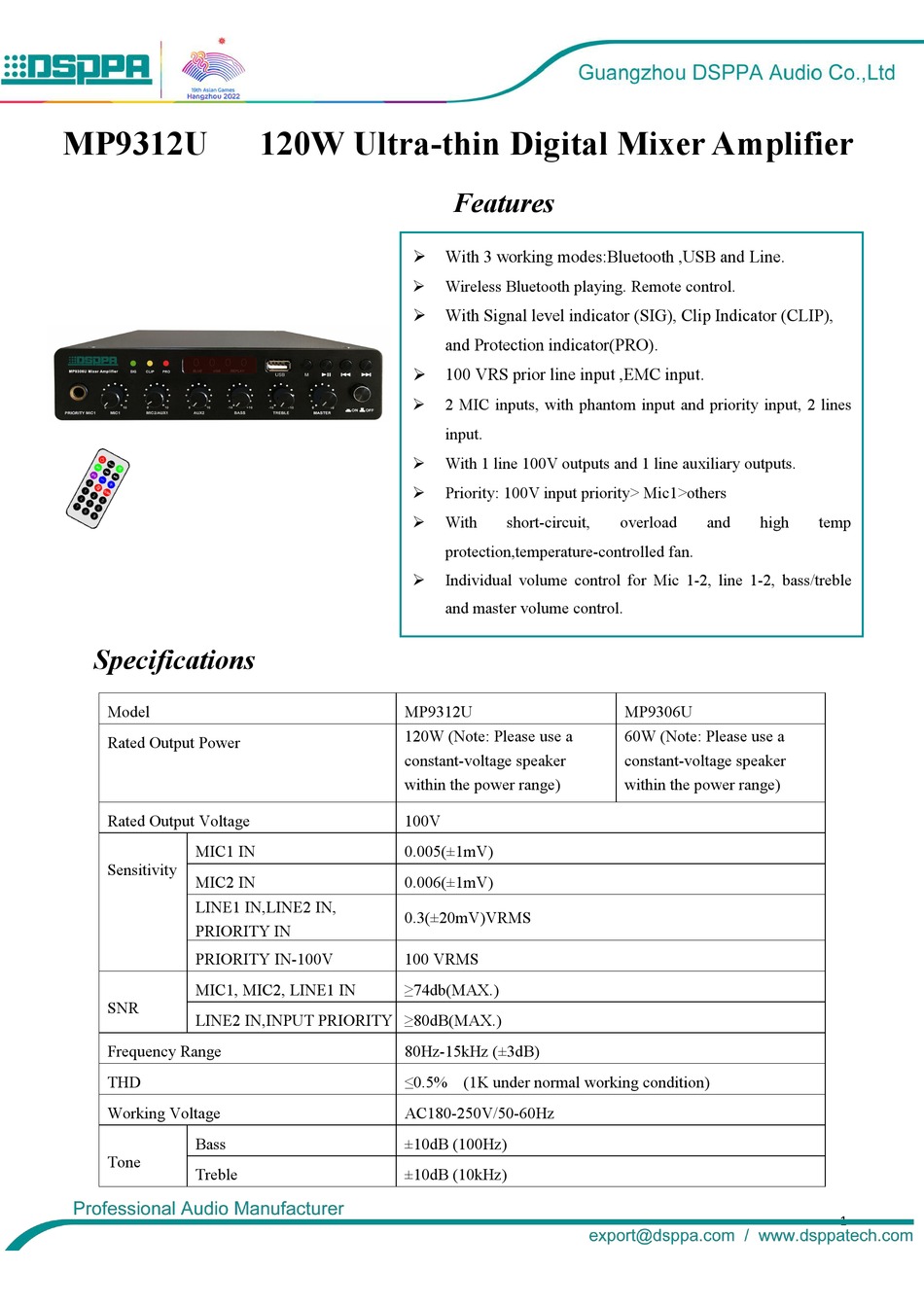

DSPPA MP9312U Quick Start Manual

MP9312U

Specifications

Model
Rated Output Power
Rated Output Voltage
MIC1 IN
Sensitivity
MIC2 IN
LINE1 IN,LINE2 IN,
PRIORITY IN
PRIORITY IN-100V
MIC1, MIC2, LINE1 IN
SNR
LINE2 IN,INPUT PRIORITY ≥80dB(MAX.)
Frequency Range
THD
Working Voltage
Bass
Tone
Treble

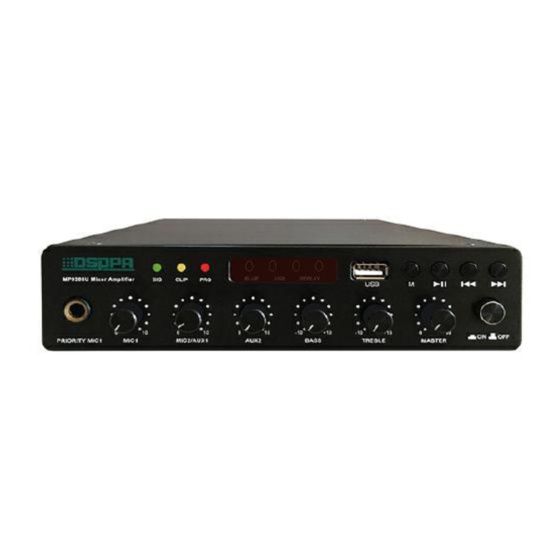

120W Ultra-thin Digital Mixer Amplifier









MP9312U
120W (Note: Please use a
constant-voltage speaker
within the power range)
100V
0.005(±1mV)
0.006(±1mV)
0.3(±20mV)VRMS
100 VRMS
≥74db(MAX.)
80Hz-15kHz (±3dB)
≤0.5% (1K under normal working condition)
AC180-250V/50-60Hz
±10dB (100Hz)
±10dB (10kHz)

Features

With 3 working modes:Bluetooth ,USB and Line.
Wireless Bluetooth playing. Remote control.
With Signal level indicator (SIG), Clip Indicator (CLIP),
and Protection indicator(PRO).
100 VRS prior line input ,EMC input.
2 MIC inputs, with phantom input and priority input, 2 lines
input.
With 1 line 100V outputs and 1 line auxiliary outputs.
Priority: 100V input priority> Mic1>others
With short-circuit,
protection,temperature-controlled fan.
Individual volume control for Mic 1-2, line 1-2, bass/treble
and master volume control.
overload and high
MP9306U
60W (Note: Please use a
constant-voltage speaker
within the power range)
temp
