Summary of Contents for DSPPA MP60U

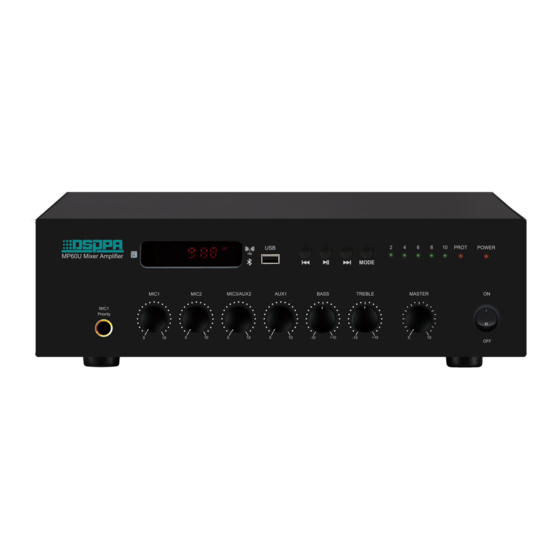

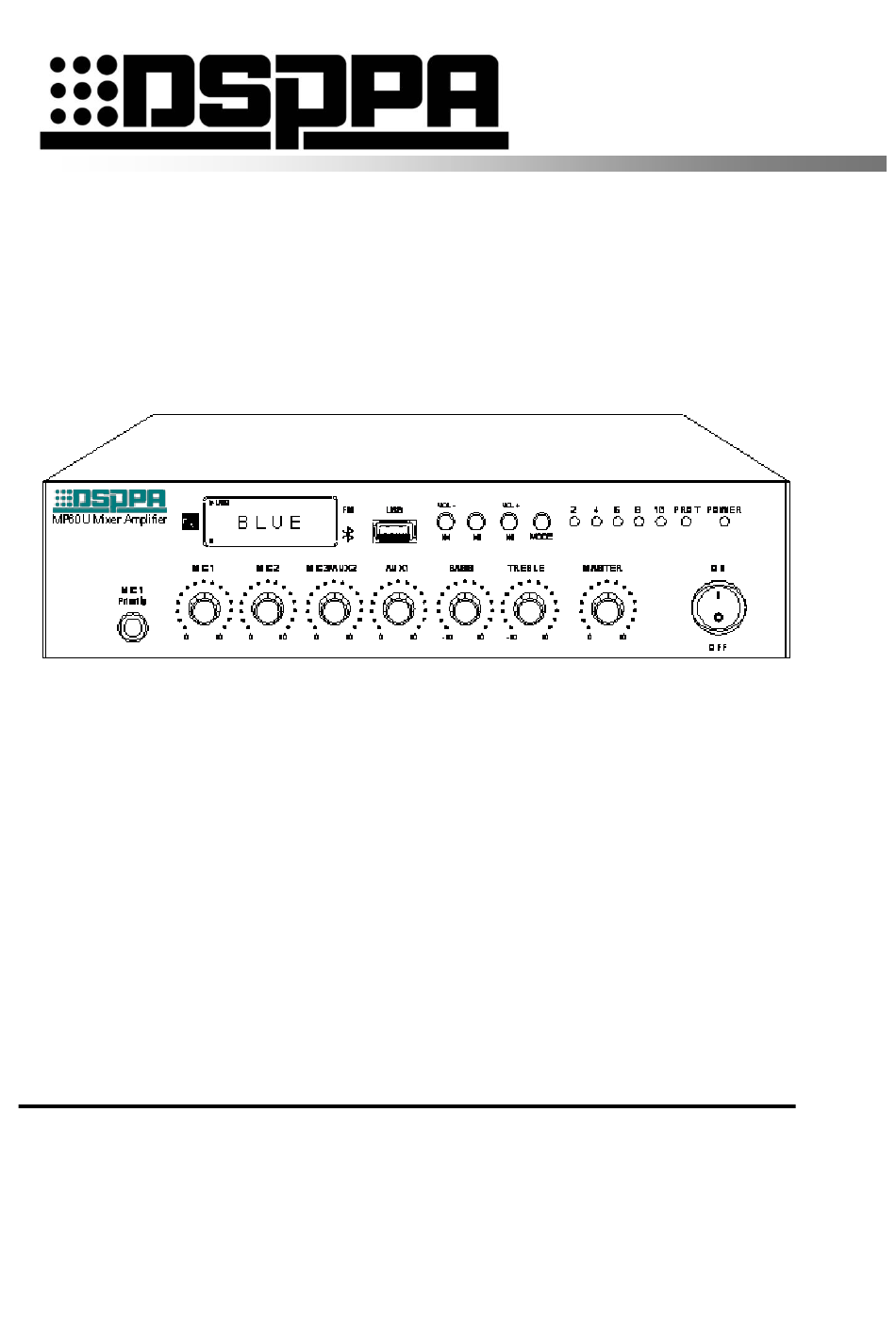

- Page 1 Public Address System Mini Mixer Amplifier MP60U MP120U Operation Instructions Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use.
- Page 2 Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com...
- Page 3 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier MP60U/MP35U. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 4: Table Of Contents
Content 1. PRODUCT DESCRIPTION ........................... - 1 - 1.1 FEATURES ............................. - 1 - 2. APPEARANCE DESCRIPTION ........................- 1 - 2.1 Front panel ............................... - 1 - 2.2 rear panel ..............................- 3 - 2.3 SIDE PANEL............................-4 - 3. -
Page 5: Product Description
1. Product Description 1.1 Features ⚫ Fashionable design, compact mini size public address amplifier. ⚫ Speaker output of 100V or 70V & 4 -16 ohms，rated power outputs of 60W, 35W. ⚫ Built in Mp3 player, FM radio & Bluetooth with remote controller. ⚫... - Page 6 Mini Mixer Amplifier Last song/（Last radio when in FM mode） In USB and Bluetooth mode, press this key to switch to the “last song”, In FM mode, press this key to switch to the “last radio” In FM/Bluetooth/USB mode, long press this key to turn down the volume Play / Pause In USB and Bluetooth mode, pause &...
-
Page 7: Rear Panel
Mini Mixer Amplifier Adjust the volume of MIC2, turn clockwise to turn up, turn counter clockwise to turn down. 17. MIC1 volume adjustment Adjust the volume of MIC1, turn clockwise to turn up, turn counter clockwise to turn down. 18. Emergency input socket(EMC) For fire signal input 2.2 Rear panel AC~110-240VPower input... -
Page 8: Side Panel
Mini Mixer Amplifier 12. Radio antenna interface Radio antenna connect to this interface 2.3 Side Panel Heat dissipation vent 3. W orking mode 3.1 MIC mode When the Microphone is broadcasting in any mode, the system will detect the MIC and mute the others sources. -
Page 9: Remote Control Instructions
Mini Mixer Amplifier 4. Remote control instructions As shown in the following figure: Function key description： ① Mode main function key，working mode switch. ② Power switch ③ Play & Pause/（Search the audio aromatically when in FM) ④ EQ sound effect ⑤... - Page 10 Mini Mixer Amplifier Safety Precautions 1. Safety Precautions ⚫ Please do NOT connect this device to the power source, before the system is correctly wired. ⚫ It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged.
-
Page 11: Packing List
Mini Mixer Amplifier Packing list List Quantity MP60U or MP35U Manual Guarantee card Certificate Power line Remote control FM antenna Performance Model MP60U MP35U Description PA Amplifier with USB/SD & FM & Bluetooth Rated power Speaker Outputs 100V or 70V & 4Ohms-8 Ohms-16 Ohms Mic1 input by unbalance 6.3mm phone jack... - Page 12 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd. - 8 -...
