- Page 1 Public Address System Mixer Amplifier MP135 MP160 User's Manual Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com...
- Page 2 Mixer Amplifier Caution To assure the finest performance, please use or operate the product in accordance with corresponding instructions. This symbol indicates "forbidden content" This symbol indicates "compulsory content" ■ Please make sure that the ■ When the equipment is in use, DO NOT block the air power wire is NOT damaged.
-
Page 3: Table Of Contents
Mixer Amplifier Contents 1. Product Introduction ............................... 1 1.1 Features ................................ 1 2. Description of Appearance ............................. 2 2.1 Description of front panel ..........................2 2.2 Description of rear panel ..........................3 Safety Precautions ..............................4 Matters needing attention ............................4 Packing List ................................ -
Page 4: Product Introduction
Mixer Amplifier 1. Product Introduction This is a 4Ω/100V mixer amplifier with multiple audio source input. It supports MP3, SD card and USB mode with recording and Bluetooth functions. It also has reverberation and MIC prior functions. It can eliminate original singing and intelligently detect transmission line load impedance in real time. -
Page 5: Description Of Appearance

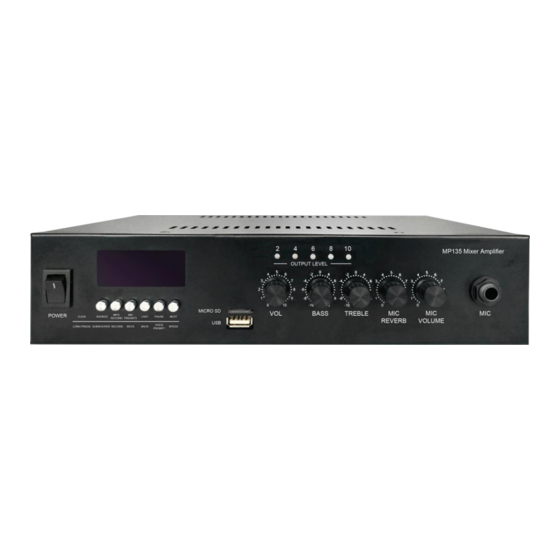

Mixer Amplifier 2. Description of Appearance 2.1 Description of front panel 1. Power 2. Audio source selection: Bluetooth (BT), SD Card, USB, Line (AUX), long press to turn on or turn off subwoofer 3. Record and Play, to switch between recording and recorded file playing modes, long press 3 seconds to start recording 4. -
Page 6: Description Of Rear Panel
Mixer Amplifier 2.2 Description of rear panel 1. AUX in, or line input, connect with tablet computer 2. 4Ω/100V to connect with 4Ω/100V on the speaker (only one type of connection can be chosen for each time) 3. Power Cable 220V... -
Page 7: Safety Precautions
For issues and precautions not mentioned in this User Manual, if required, please contact the distributor or visit our website at http://www.DSPPA.com In case of any failure in the warranty period, please contact service personnel (or distributor) of our company for service. -
Page 8: Packing List
Quantity 3.5mm audio cable Remote User Manual Warranty Card Certificate Specification Note: The performance specifications are subject to changes without further notification. Model MP135 MP160 Output Power 50±5mv MIC Input Sensitivity AUX Input Sensitivity 500±50mv ≥85dB Frequency Response 80Hz-16KHz (±3dB) ≤0.1% (1KHz) - Page 9 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd...
