  • Page 1 MP9312U Mixer Amplifier CLIP PRIORITY MIC1 MIC2/AUX1 AUX2 BASS TREBLE MASTER User’s Manual Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com...
  • Page 2 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier MP9306U/MP9312U. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
  • Page 3: Table Of Contents

    PA system Digital Mixer Amplifier Content 1. PRODUCT DESCRIPTION............................2 1.1 Features................................2 2. APPEARANCE DESCRIPTION..........................3 2.1 Front panel..............................3 2.2 Rear panel............................... 5 2.3 Side Panel................................6 3. WORKING MODE................................ 6 4. REMOTE CONTROL INSTRUCTIONS........................7 1. SAFETY PRECAUTIONS............................8 2. Matters needing attention.........................
  • Page 4: Appearance Description

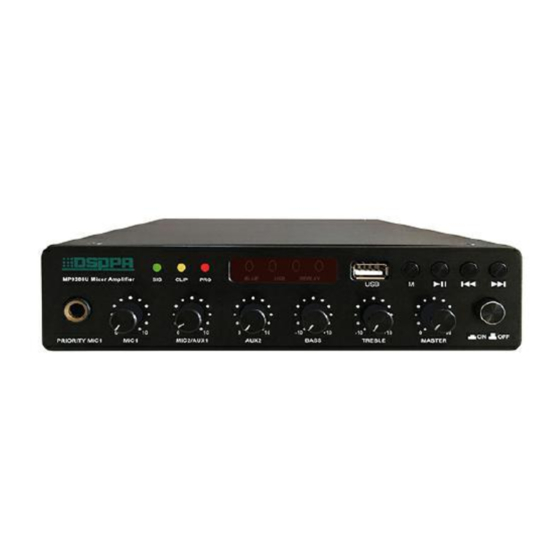

    With short-circuit, overload and high temp protection,temperature-controlled fan.  Individual volume control for Mic 1-2, line 1-2, bass/treble and master volume control.  Remote control.  2. Appearance Description 2.1 Front panel MP9312U Mixer Amplifier CLIP PRIORITY MIC1 MIC2/AUX1 AUX2 BASS TREBLE MASTER 1.
  • Page 5 PA system Digital Mixer Amplifier Adjust the volume of AUX2, turn clockwise to turn up, turn counter clockwise to turn down. 5. Bass volume adjustment The central position as the benchmark, turn counter clockwise to turn down the bass, turn clockwise to turn up the bass 6.
  • Page 6: Rear Panel

    PA system Digital Mixer Amplifier 2.2 Rear panel 1. AC220V Power input socket The interface is to supply the working power. Insert the plug onto the machine, then connect the power grid. 2. Cooling fan window 3. Speaker output interface 4.
  • Page 7: Side Panel

    PA system Digital Mixer Amplifier 2.3 Side Panel Heat dissipation vent 3. Working Mode With 3 mode:USB mode, Bluetooth mode, Line mode 3.1Bluetooth mode Press MODE to display “BLUE” on the digital screen, the “BLUE” will always flash until device and mobile phone pairing success, the name is “Bluetooth”.
  • Page 8: Remote Control Instructions

    PA system Digital Mixer Amplifier 4. Remote Control Instructions As shown in the following figure: Function key description: Mode main function key,working mode switch. Power switch Play & Pause/ EQ sound effect 0-9 song selection key,can be composed of digital channel selection Mute key Last song/ Next song/...
  • Page 9: Safety Precautions

    PA system Digital Mixer Amplifier Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired.  It is important to ensure that input voltage to the device is the same as required voltage of the device; ...
  • Page 10: Packing List

    PA system Digital Mixer Amplifier Packing list List Quantity MP9306U or MP9312U Manual Guarantee card Certificate Power line Remote control Specification Model MP9306U MP9312U MP9306D MP9312D Rated Power 120W 120W Speaker Output 100V 0.06(±0.015) VRMS Sensibility Line 0.3(±20mV)VRMS 100V-IN 100 VRMS ≥74db(Maximum)
  • Page 11 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd.
