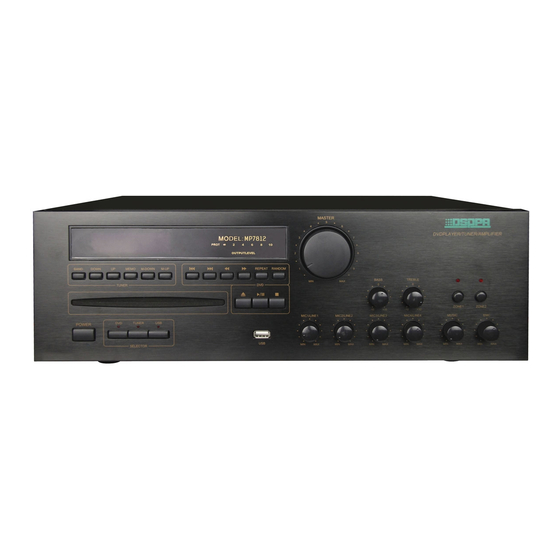

DSPPA MP7812 Operation Manual

DSPPA MP7812 Operation Manual

Dvdplayer/tuner

Advertisement

DVDPLAYER/TUNER/AMPLIFIER
Operation Manual
Welcome to enter my PA system. Please read the manual carefully before use to facilitate your better
application of the equipment.
PUBLIC ADDRESS SYSTEM
Guangzhou DSPPA Audio Co., Ltd.
http://www.DSPPA.com
http://www.dsppatech.com
MP7806
MP7812
MP7825
MP7835

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP7812 and is the answer not in the manual?

Questions and answers

Summary of Contents for DSPPA MP7812

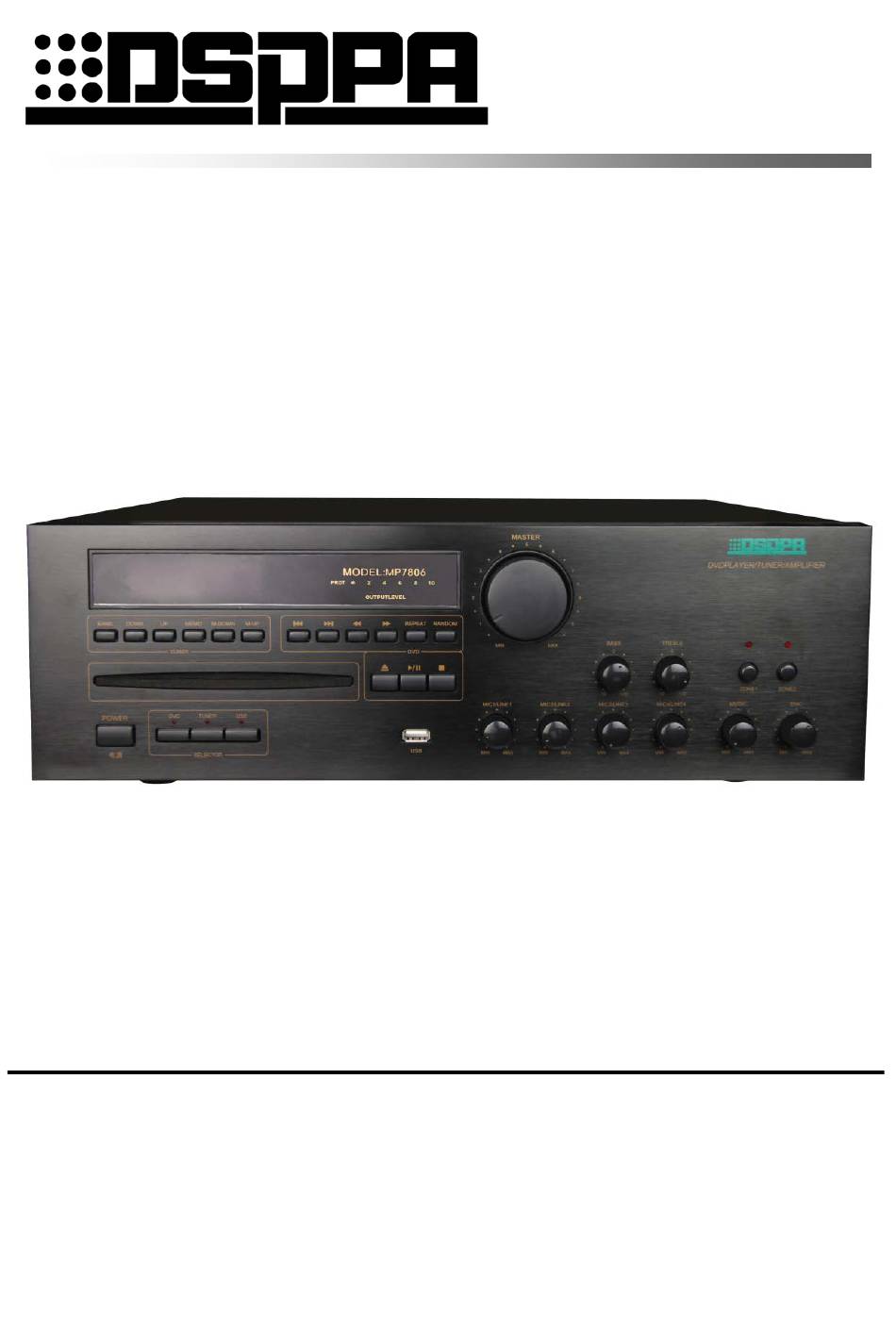

  • Page 1 PUBLIC ADDRESS SYSTEM DVDPLAYER/TUNER/AMPLIFIER MP7806 MP7812 MP7825 MP7835 Operation Manual Welcome to enter my PA system. Please read the manual carefully before use to facilitate your better application of the equipment. Guangzhou DSPPA Audio Co., Ltd. http://www.DSPPA.com http://www.dsppatech.com...
  • Page 2 Public Address System DVD/Radio/Broadcast Power Amplifier PRECAUTIONS  Do NOT plug the equipment to the grid before connecting the system lines securely.  Be sure to connect the equipment to the voltage in accordance with the one required by the equipment; otherwise, the equipment may be burnt.
  • Page 3: Front Panel

    Public Address System DVD/Radio/Broadcast Power Amplifier  FRONT PANEL 1 DVD-Door open/close 14 Adjust DVD/tuner volume 27 Select radio storage No. 1-20 2 DVD-Play 15 Adjust AUX volume 28 Fluorescent screen 3 DVD-Stop 16 DVD-Next 29 Master volume control knob 4 DVD-Door 17 DVD-Previous 30 Adjust bass tone...
  • Page 4 Public Address System DVD/Radio/Broadcast Power Amplifier Description of Remote Controller Functions POWER: Switch On/Off the power supply [0~9], [+10]: Number keys, [+10] for inputting a number greater than 10 AV/PSCAN: Video output terminal selection R/L: Switch sound channel RETURN: Return to chapter or contents : Direction keys ENTER: Confirm the operation selected SETUP: System function settings...
  • Page 5: System Wiring

    Public Address System DVD/Radio/Broadcast Power Amplifier SYSTEM WIRING 1. Wiring Diagram of Peripheral Devices Microphone override Chime output short-circuit toggle signal External sound source antenna FM antenna AC220V Zone 1 MIC1 MIC2 MIC3 MIC4 Zone 2 Note: Never connect two hot terminals (labeled 4Ω, 70V, 100V) together. ...
  • Page 6 Public Address System DVD/Radio/Broadcast Power Amplifier 2. Wiring Diagram of Amplifier Output Wiring diagram of 4 -16Ω fixed-resistance output SOEAKER OUTPUT 100V 4-16Ω SPEAKER SPEAKER Wiring diagram of 100V fixed-voltage output Wiring diagram of 70V fixed-voltage output SOEAKER OUTPUT SOEAKER OUTPUT 100V 100V 4-16Ω...
  • Page 7: Dvd Mode

    Public Address System DVD/Radio/Broadcast Power Amplifier Operating Instructions Since the equipment features sound source memory after shut-down, it keep the sound source state before the last shut-down. “POWER” switch can only be used after the master power switch “AC POWER” on the rear panel is On. Master power switch “AC POWER”...
  • Page 8 Public Address System DVD/Radio/Broadcast Power Amplifier Caution 1. When the machine plays some discs, you need to press the PLAY key on the remote controller and then the machine can begin to play them. 2. Please do not push or pull the disc cabin with force by your hands to avoid the DVD mechanism from being damaged.
  • Page 9 Public Address System DVD/Radio/Broadcast Power Amplifier  Press the REW  key and the machine Press the REW key and the machine continuously plays disc backward. continuously plays disc backward. Continuously press: Continuously press: Program Fastreverse Χ2 Fastreverse Χ4 Fastreverse Χ8 Fastreverse Χ20 1[ –...
  • Page 10 Public Address System DVD/Radio/Broadcast Power Amplifier information. Press the “OSD” key again, the 15. Angle Selection: 15. Angle Selection: screen will display the language and subtitle Applicable to the DVD disk Applicable to the DVD disk information of the disk. When playing DVD disk, press "ANGLE"...
  • Page 11 Public Address System DVD/Radio/Broadcast Power Amplifier  Subtitle language: Select the "Subtitle Language" option, Press the key to enter its submenu, the setting values for selection are: Chinese, English, Japanese, French, Spanish, Portugal, German and Latin.  Television System: Select the “Television ...
  • Page 12 Public Address System DVD/Radio/Broadcast Power Amplifier Radio and other broad cost mode 收音及其他播放模式 1. Zone Control 2 100V fixed-voltage output interfaces are provided for the equipment to connect 2 zones. After secure connection of wires, Zone On/Off keys (34 & 35) of two zones on the front panel can be used for switching On/Off the zones.
  • Page 13: Packing List

    Public Address System DVD/Radio/Broadcast Power Amplifier effect. “PRIORITY” terminal on the rear panel for microphone features Mute function when a short-circuit signal is inputted. (Except chime signal), other signals can be suppressed by the signal from the four microphones. When “PRIORITY”...
  • Page 14 AC220-240V/50-60Hz Power consumption 120W 250W 500W 650W (L×W×H)520×500×235 Outer Packing Size (mm) (L×W×H)430×400×132 Unit Size (mm) Gross weight 15.5kg 17kg 19.8kg 21.6kg Net weight 13kg 14.5kg 17.3kg 19.1kg Specifications are subject to change without notice Guangzhou DSPPA Audio Co., Ltd.
