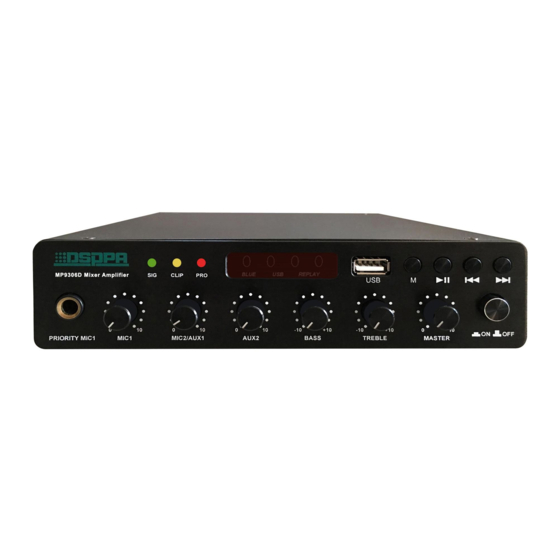

PA system
MP9312U Mixer Amplifier
PRIORITY
User's Manual
Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully
prior to use.
SIG
CLIP
PRO
0
10
0
10
MIC1
MIC2/AUX1
Public Address System
0
10
-10
+10
AUX2
BASS
Digital Mixer Amplifier
D
igital Mixer Amplifier
USB
M
-10
+10
0
10
TREBLE
MASTER
Guangzhou DSPPA Audio Co., Ltd
http://www.dsppatech.com
MP9306D
MP9312D
ON
OFF
Advertisement
Table of Contents
Related Manuals for DSPPA MP9306D
Summary of Contents for DSPPA MP9306D
- Page 1 MP9312U Mixer Amplifier CLIP PRIORITY MIC1 MIC2/AUX1 AUX2 BASS TREBLE MASTER User’s Manual Welcome to use DSPPA public address system. For the better use of this product, please read this instruction carefully prior to use. Guangzhou DSPPA Audio Co., Ltd http://www.dsppatech.com...
- Page 2 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier MP9306D/MP9312D. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 3: Table Of Contents
PA system Digital Mixer Amplifier Content 1. PRODUCT DESCRIPTION ..........................1 1.1 Features ................................ 1 2. APPEARANCE DESCRIPTION ........................... 1 2.1 Front panel ..............................1 2.2 Rear panel ..............................3 2.3 Side Panel ..............................4 3. WORKING MODE ..............................4 4. -
Page 4: Product Description
PA system Digital Mixer Amplifier 1. Product Description 1.1 Features With 3 working modes:Bluetooth ,USB and Line. Wireless Bluetooth playing. With Signal level indicator (SIG), Clip Indicator (CLIP), and Protection indicator(PRO). 100 VRS prior line input ,EMC input. ... - Page 5 PA system Digital Mixer Amplifier 1. Mic 1 priority input 2. MIC1 volume adjustment Adjust the volume of MIC1, turn clockwise to turn up, turn counter clockwise to turn down. 3. MIC2/AUX1 volume adjustment Adjust the volume of MIC2/AUX1, turn clockwise to turn up, turn counter clockwise to turn down. 4.
-
Page 6: Rear Panel
PA system Digital Mixer Amplifier volume 2.2 Rear panel 1. AC220V Power input socket The interface is to supply the working power. Insert the plug onto the machine, then connect the power grid. 2. Cooling fan window 3. Speaker output interface 4. -
Page 7: Side Panel
PA system Digital Mixer Amplifier 2.3 Side Panel Heat dissipation vent 3. W orking mode With 3 mode:USB mode, Bluetooth mode, Line mode 3.1Bluetooth mode Press MODE to display “BLUE” on the digital screen, the “BLUE” will always flash until device and mobile phone pairing success, the name is “Bluetooth”. -
Page 8: Remote Control Instructions
PA system Digital Mixer Amplifier 4. Remote Control Instructions As shown in the following figure: Function key description： ① Mode main function key，working mode switch. ② Power switch ③ Play & Pause/ ④ EQ sound effect ⑤ 0-9 song selection key，can be composed of digital channel selection ⑥... -
Page 9: Safety Precautions
PA system Digital Mixer Amplifier ⑫ Record key Safety Precautions 1. Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged. -
Page 10: Packing List
In case of any failure in the warranty period, please contact service personnel (or distributor) of our company for service. The company shall not be made liable for damages due to unauthorized dis-assembly or maintenance or service by unauthorized personnel. Packing list List Quantity MP9306D or MP9312D Manual Guarantee card Certificate Power line Remote control... - Page 11 ● This is connected to power source via the plug and any failure or danger occurs, the user can disconnect the device from power source by pulling out the plug out from the socket, therefore, it is required that the power socket should be located somewhere with easy access. Guangzhou DSPPA Audio Co., Ltd.
