Ditel KOSMOS Series Manual

KOS1100
POWERED
ISOLATING
CONVERTER
kos1100manualB.doc 30727049
WARRANTY
The instruments are warranted against defective materials and
workmanship for a period of three years from date of delivery.
If a product appears to have a defect or fails during the normal use
within the warranty period, please contact the distributor from which
you purchased the product.
This warranty does not apply to defects resulting from action of the
buyer such as mishandling or improper interfacing.
The liability under this warranty shall extend only to the repair of the
instrument. No responsability is assumed by the manufacturer for
any damage which may result from its use.
KOSMOS SERIES
1. INTRODUCTION
The isolator provides isolated re-transmission of the input signal, which
can (by internal selection switches), be set to accept and re-transmit most
common process signals. The isolator can either be DIN rail or surface
mounted.

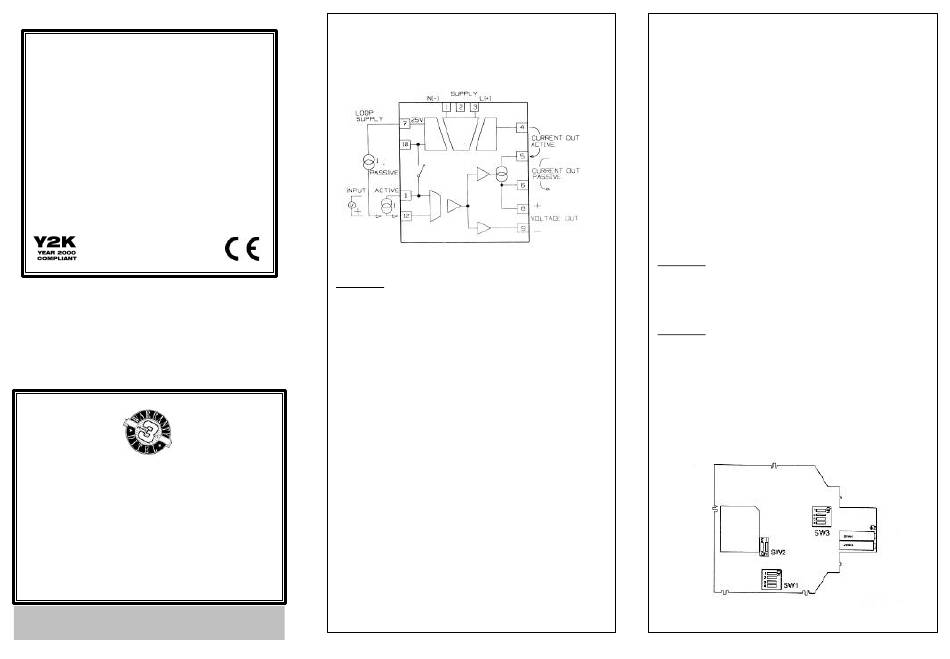

Connection Diagram
2. SPECIFICATION
WARNING!
Operation outside the quoted maximum figures may result
Oct.99
in the faillure of transmitter.
SUPPLY
Range Option S1
Option S2
Power Consumption 4 Watts maximum
Protection
INPUT
Current
Voltage
Selection Internal switches
Input inpedance Current
Voltage
Protection Reverse connection, over voltage
Loop Supply 25V DC @ 25mA maximum (27V maximum)
OUTPUT
Type Current
Passive mode, V loop 30V max
Voltage
Load 0 to 1kΩ Current output
5mA max current drive Voltage output
Linearity 0.05%
Stability 150ppm/ºC
Response time <100mS to reach 70% of final value
1
Current and voltage outputs are not isolated from each other
2
Available simultaneously with 0-20mA output
3
Available simultaneously with 4-20mA output
90-253V AC 50/60Hz
20-35V DC
22-28 V AC 50/60Hz
Internal Fuse Rating 500mA (T)
0-20mA 4-20mA (40mA max)
0-100mV 20-100mV 20V Max
0-1V 0.2-1V
0-5V 1-5V
0-10V 2-10V
<50Ω
>1MΩ
1
0-20mA 4-20mA
1 2 3
0-1V 1.2-1V
2 3
0-5V 1-5V
2 3
0-10V 2-10V
GENERAL
Isolation/Input/Output 500V DC (flash tested @ 1kV) input to output
Isolation /Supply 3kV DC to input or output
Mounting DIN-EN50022-35 or surface mount
Ambient 0-50ºC; 10-95%RH non condensing
Connection Captive terminal screws
2
Cable size 1mm diameter wire
Flammability UL94V0 VDE0304 Step Iib
Dimensions 82 x 22.5 x 99 mm
EMC Emissions BS EN50081-1
Susceptibility BS EN50082-1
Electrical Safety BS EN61010-1
Installation overvoltage category II
Pollution Degree II
3.0 CONFIGURATION
The isolator leaves the factory calibrated for the input output rates
specified ot the time of the order, if no ranges have been specified then
the isolator range will be 4-20mA in and out. If required the isolator ranges
may be changed by the installer, provided access is available to suitable
calibration equipment in order to simulate the required input/ output
signals. Configuration and calibration are best carried out prior to
installation. The isolator is configured by means of internal switches.
WARNING!
Extreme caution must be exercised when replacing the terminal housing.
Aling holes in front panel with trim pots and LED within. Failure to do so
may cause the installer to wire the unit incorrectly.
3.1 Configuration
WARNING! Mains power may be present. NEVER open the isolator
case when powered. Follow steps 1-4 to gain access to the internal
configuration switches.
1. Disconnect from all power sources.
2. Insert screwdriver to release clips either side of case.
3. Slide terminal housing assenbly forward to reveal circuit board and
configuration switches.
4. To identify switches read PCB copper text for SW1,SW2 and SW3.
5. To reassemble push circuit card back into shell (using clips
provided) and clip into place.
