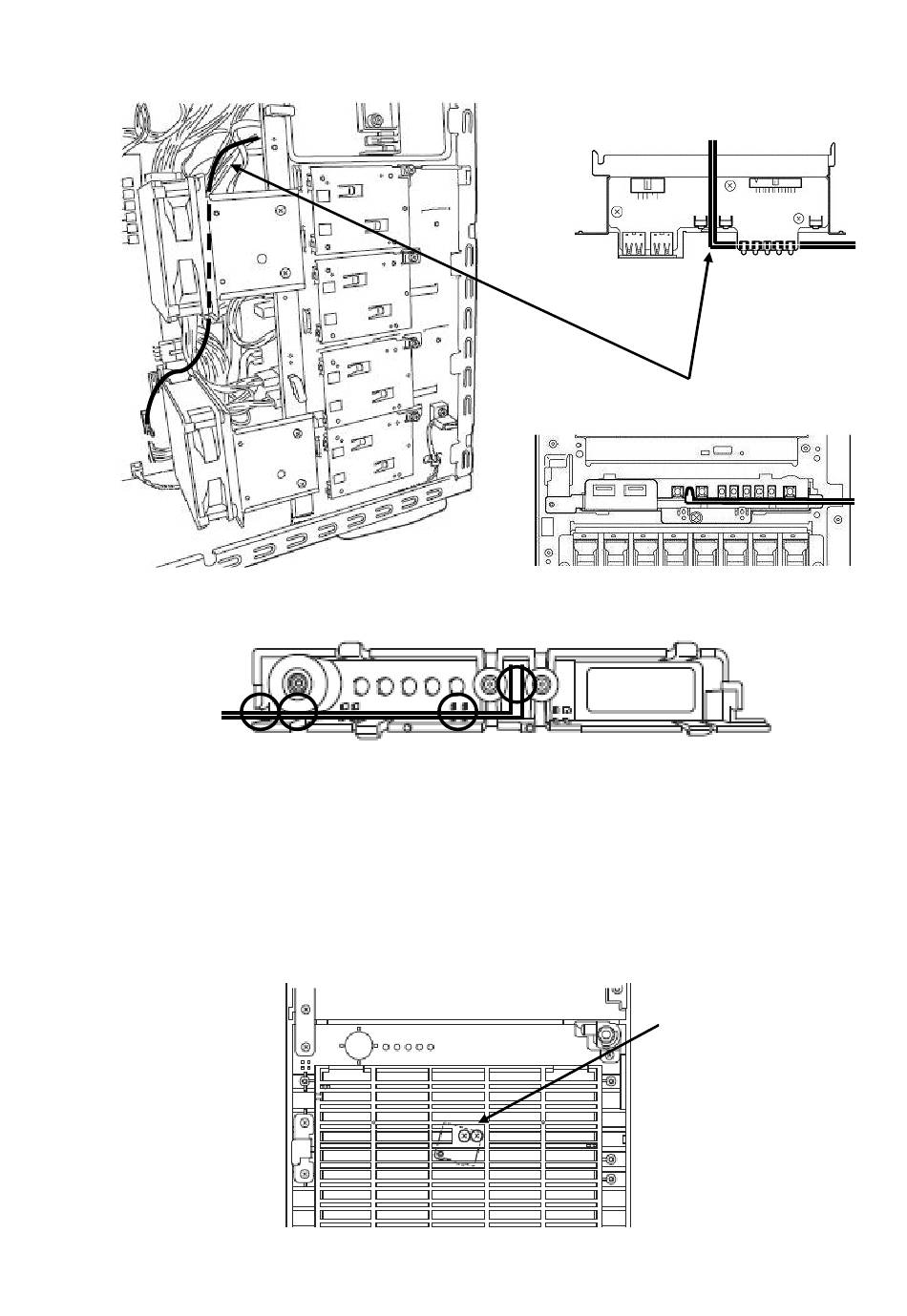

6. Route the sensor cable as shown in the figure below.
Clamp a cable in four places of the ○ mark.
Install the sub-bezel.
7. Install the filter monitoring sensor to the front bezel with two fixing screws.
Remove the sub-bezel, and connect the cable.
Rear face of front bezel
19
Upper of front panel
Pull the cable out from upper of front panel.
Secure with screws
(2 places)
