Rice Lake D400 Quick Start Manual

Rice Lake Adult & Child Scale
Model D400 Operation
The Rice Lake Adult and Child Scale takes the traditional home health scale to a new level by accurately weighing
a child while the child is being held. The scale is powered by battery or AC adapter.
This manual can be viewed and downloaded from the Rice Lake Weighing Systems web site at
www.ricelake.com
To prevent personal injury to the user and damage to the scale, ensure all users read and understand the
CAUTION
following statements.
• Do not attempt to transport the scale while someone is standing on it.
• Do not drop the scale or subject it to violent shocks.
• For accurate weighing, the scale must be placed on a flat, stable surface, avoiding carpeted areas.
• Weight exceeding the maximum capacity (440 lb/200 kg) may damage the scale.
• The scale is not waterproof; avoid contact with excessive moisture.
• Never place the scale close to heat-radiating appliances.
• The scale is not intended for use by individuals with restricted physical, physiological or intellectual
abilities or deficiencies in experience/knowledge unless supervised by a person responsible for their
safety.
Standard Features
• Power: Four AA batteries (included) or AC adapter (included).
• Display weight in pounds or kilograms
• Tap to turn on, auto power off
• Easy to read LCD display
• Adult and Child weighing mode
• Platform dimensions: 12.68'' L x 12.68'' W x 1.97'' H (322 mm L x 322 mm
W x 50 mm H)
• Capacity and graduation: 440 lb (200 kg) 4 oz (0.1 kg)
Scale Setup
1. Remove the pre-assembled scale from its packaging.
2. Place the scale on a flat, firm surface. Ensure that the floor surface is free
from moisture to avoid the possibility of slipping.
3. Plug in the AC power adapter or insert the four AA batteries into unit.
4. Toggle to kilogram (KG) or pounds (LB) switch located on the bottom of the unit.
KG/LB toggle switch
5. Use the
POWER ON/OFF
September 14, 2016
Power adapter plug in
DC9V 300mA
KG/LB
Figure 2. Adult & Child Scale – Bottom View
toggle switch located on the underside of the scale to activate the scale.

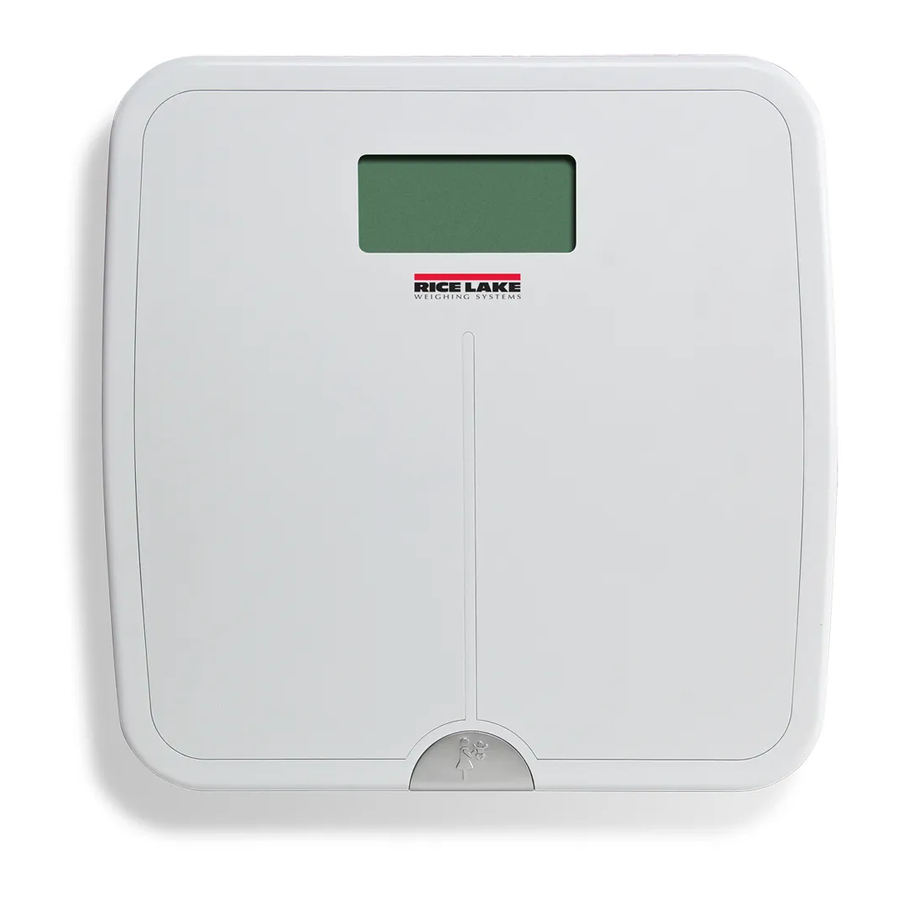

Figure 1. Adult & Child Scale
Power ON/OFF switch
4x1.5 V AA
Battery compartment
PN 159259 Rev B
