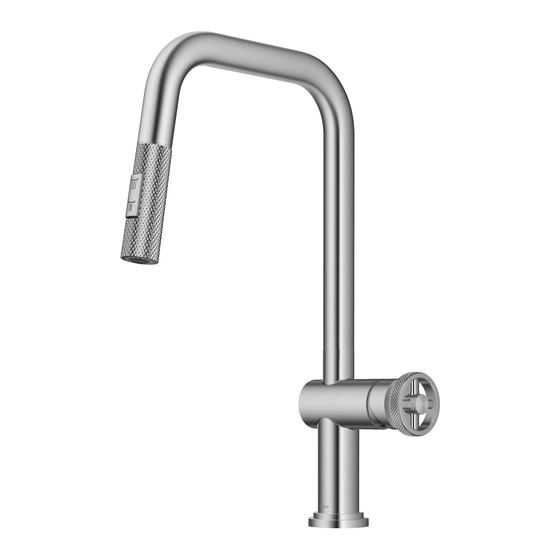

- Page 1 INSTALLATION MANUAL Industrial Pull Down Kitchen Faucet KPF-3126 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2022 Kraus USA Plumbing LLC I REV. June 8, 2022...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: · Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a replacement. · Read all instructions and safety warnings and ensure you have all tools, parts, and equipment necessary for a safe installation. - Page 4 3A. Rubber Washer 3B. Metal Washer 3C. Mounting Nut 3D. Mounting Screws Waterlines Quick Connector Weight For technical assistance or replacement parts, please contact Kraus Customer Service and one of our representatives will be happy to help: Toll-Free: 800-775-0703 or Customerservice@kraususa.com...
- Page 5 Faucet Dimensions 10 5/8" 5" (270mm) (126mm) 9" (228.6mm) Ø 1 1/2" Ø 2 1/8" (37mm) (54mm) Installer Tip: Shut off main water supply before installing new faucet.
- Page 6 Step 1. Remove mounting hardware Remove the mounting screws (3D), mounting nut (3C), metal washer (3B) and rubber washer (3A) from the mounting pipe. Step 2. Install faucet and mounting hardware Insert faucet body (2) into hole in countertop or deck plate assembly.
- Page 7 Secure mounting hardware Step 3. Adjust direction of faucet body (2) so that handle is on right side of faucet. Tighten mounting nut (3C) until snug. Tighten mounting screws (3D) to nut with Phillips screwdriver until snug. Step 4. Attach spray hose and counterweight Connect spray hose to quick connector (5) attached to supply line.
- Page 8 Step 5. Connect waterlines Connect hot and cold copper lines (4) to angle stops. Tighten both ends of waterlines with a wrench until snug. Turn on hot and cold angle stops and check for leaks. NOTE: Please make sure filter washers are installed before connecting to the main valve.
- Page 9 Step 7. Check for leaks Check for leaks at the connections. Retighten if necessary .
- Page 10 Maintenance - Cartridge Replacement Step 1: Remove the handle button by hand. Loosen the screw with a Phillips screwdriver. Remove the handle and cartridge cap by hand. Step 2: Unscrew the locking nut with an adjustable wrench. Remove ceramic disc cartridge.
-
Page 11: Replacement Parts
Replacement Parts Replacement Parts List Finish/Color Part # KP44097 1. Spray Head CH, SFS, MB, BG, SB** KP44096 2. Spray Hose BLBG, GRCH, BLMB, BLSB, GRSFS* 3. Handle Button CH, SFS, MB, BG, SB** KP44032 4. Metal Handle KP44103 CH, SFS, MB, BG, SB** 5. -
Page 12: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: PROBLEM CAUSE ACTION Leakage under faucet handle Locking nut has come loose or Loosen set screw with phillips screwdriver. cartridge needs to be reseated. - Page 13 Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
