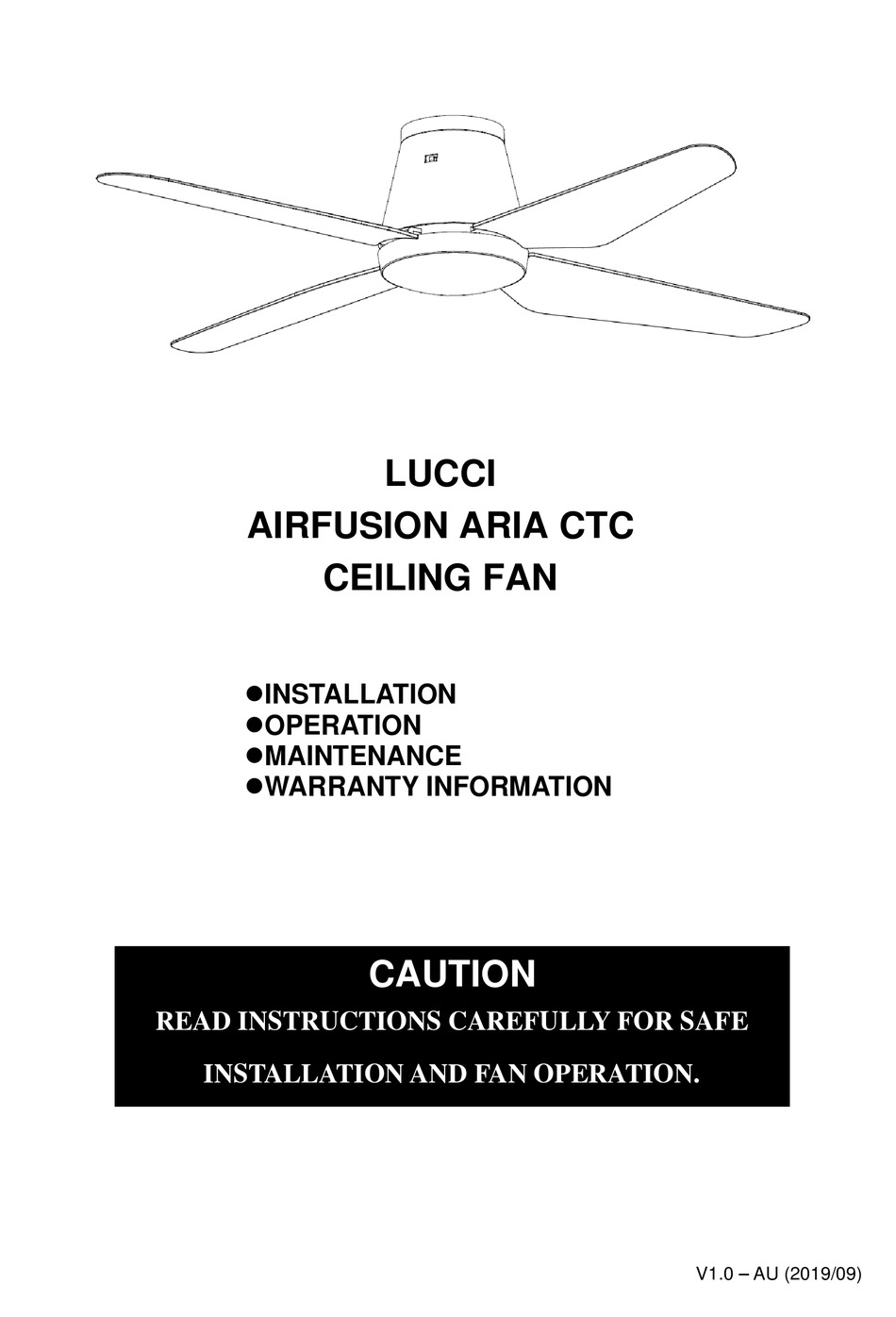

- Page 1 LUCCI AIRFUSION ARIA CTC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0 – AU (2019/09)
-
Page 2: Safety Precautions
Aria CTC Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 Aria CTC Installation Instructions all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1. A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located the same room as the ceiling fan.
-
Page 4: Parts List
Aria CTC Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Aria CTC Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 20kg, with the 4 long screws provided. - Page 6 Aria CTC Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan.
- Page 7 Aria CTC Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 5) for (Fig.6 and Fig.7) 1/ Remote without plugs (manual wiring) Fig.
- Page 8 Aria CTC Installation Instructions INSTALL THE FAN ASSEMBLY TO THE MOUNTING BRACKET • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket.
- Page 9 Aria CTC Installation Instructions INSTALLING THE FAN BLADE AND LIGHT KIT BLADE ATTACHMENT (Fig.9) 1. Before installing the blades, remove the blade screws and flat washers from the bottom of fan motor. 2. Align the 2 holes on the blade with the 2 holes on the rotating member of fan motor assembly and using the 2 blade screws in step 1, to secure the blade to the fan motor assembly.
-
Page 10: Using Your Ceiling Fan
Aria CTC Installation Instructions USING YOUR CEILING FAN FAN WALL CONTROL Turn on the power and check the operation of the fan. • OFF Position – Fan off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed Fig. -
Page 11: After Installation
Aria CTC Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimeters is quite acceptable and DOES NOT suggest any problem. - Page 12 Aria CTC Installation Instructions LUCCI CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 THIS WARRANTY IS VALID IN AUSTRALIA ONLY In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am &...
- Page 13 Aria CTC Installation Instructions CEILING FAN WARRANTY INFORMATION LUCCI WARRANTY HOTLINE- 1800 602 243 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ………………………………………………………...
