Summary of Contents for LUCCI Air Airfusion Fraser CTC

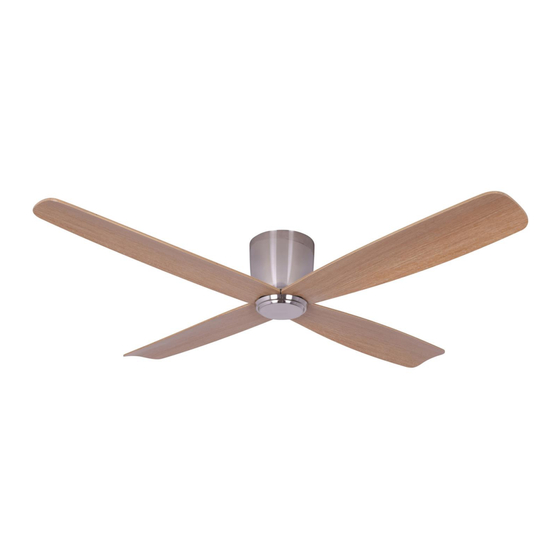

- Page 1 LUCCI AIRFUSION FRASER CLOSE TO CEILING DC FAN INSTALLATION OPERATION MAINTENANCE WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. VER 1.1...
-
Page 2: Safety Precautions
Airfusion Fraser CTC Installation Instructions IMPORTANT INFORMATION – PLEASE READ PRIOR TO INSTALLATION Thank you for purchasing the latest in energy saving ceiling fans. This Airfusion Fraser fan runs on DC (direct current) power which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation. -
Page 3: Parts List
Airfusion Fraser CTC Installation Instructions PARTS LIST Unpack your ceiling fan carefully. Remove all parts and hardware. Place the fan motor on a cloth or soft surface to avoid damaging the finish. • Do not lay the motor housing on its side – the decorative housing may become bent or damaged. -
Page 4: Installing The Fan
Airfusion Fraser CTC Installation Instructions INSTALLING THE FAN TOOLS REQUIRED: Phillips / flat head screwdriver Pair of pliers Adjustable spanner Step ladder Wire cutter Wiring, supply cable as required by local provincial and national wiring codes and regulations. INSTALLING THE MOUNTING BRACKET The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. - Page 5 Airfusion Fraser CTC Installation Instructions HANGING THE FAN MOTOR ASSEMBLY • Lift the fan assembly to the mounting bracket (1) and let the J-hook of the mounting bracket (4) go through the hole of the hanging plate and hang up the fan assembly (3). Fig. 3 •...
- Page 6 Airfusion Fraser CTC Installation Instructions INSTALL THE CANOPY COVER • Loosen 2 screws (2) from the mounting bracket. Fig. 5 • Loosen 2 screws (1) by half thread from the mounting bracket. Fig. 5 • Lift the hanging plate of the fan assembly up to the mounting bracket and let the L-shape slot on the hanging plate go through the screws (1) on the mounting bracket.
-
Page 7: Using Your Ceiling Fan
Airfusion Fraser CTC Installation Instructions LIGHT KIT Installation (Light kit - optional) NOTE: The light kit must be installed by a licensed electrician. NOTE: The light kit is available for selected ceiling fan models and as an optional light kit. - Page 8 Airfusion Fraser CTC Installation Instructions Setting DC Ceiling fan 2: • Turn off both ceiling fans 1 and 2 via the mains supply to the receiver. • Slide the cover of the battery compartment of the transmitter to access the DIP switches. This will be transmitter 2.
- Page 9 Airfusion Fraser CTC Installation Instructions ○ 2 - FAN OFF BUTTON: Press the button to turn the fan off. ○ 3 - REVERSE FUNCTION BUTTON: Press the button to activate the reverse running function. The fan must be operating to activate the reverse function.
- Page 10 Airfusion Fraser CTC Installation Instructions Turn off the main supply to receiver more than 30 seconds and turn on the main supply to receiver again. Press and hold the SET button of remote for 6 seconds within 60 seconds of turning turn the power to the receiver.
- Page 11 Airfusion Fraser CTC Installation Instructions NOTE: For your safety, a new receiver must be installed by a licensed electrician. NOTE: While repairing the DC ceiling fan remote and receiver is in process, the fan operates at highest speed with REVERSE mode automatically for 90 seconds and then operates with FORWARD mode for 90 seconds.
-
Page 12: Troubleshooting Checklist
Airfusion Fraser CTC Installation Instructions TROUBLE SHOOTING CHECKLIST Always check the “Trouble Shooting Checklist” included in this booklet before calling for service. Unnecessary calls are inconvenient for all and can attract a service charge. WARNING: THE CEILING FAN MUST BE SWITCHED OFF BEFORE TROUBLE SHOOTING IS PERFORMED. -
Page 13: Technical Information
Airfusion Fraser CTC Installation Instructions TECHNICAL INFORMATION AIRFUSION Rated power FRASER SERIES Rated Voltage Battery for remote (motor) DC FAN models FRASER 52” FAN 220-240VAC 1 x 12V 23AE WARRANTY CONDITIONS IN AUSTRALIA / NEW ZEALAND – Please refer to the separated WARRANTY STATEMENT. - Page 14 Airfusion Fraser CTC Installation Instructions or indirectly resulting from a faulty ceiling fan. 6. Except in the case of pre-packed integrated light models, light fittings attached to the fan are not covered by this warranty. Where the fan is pre-packed complete with a light, the light fitting will be covered by warranty to electrical defect.
