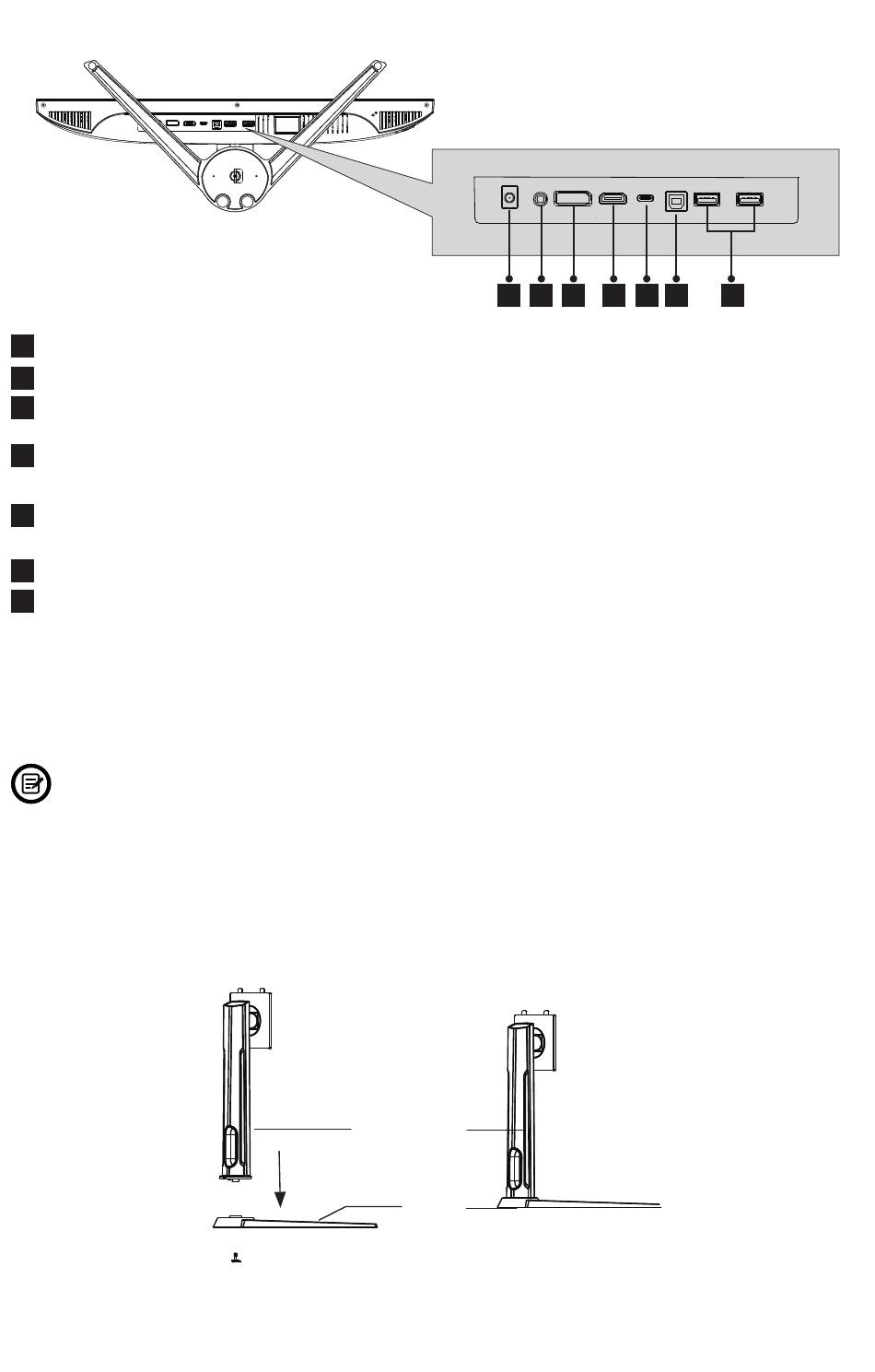

3.2 – Monitor Ports
Power Connector: Insert the power cable to supply power to the monitor.
1
Audio Output: Insert the audio cable for output of audio signals.
2
DP Connector: Insert one end of the DP cable into the computer's DP output
3
and connect the other end to the monitor's DP port.
HDMI Connector: Insert one end of the HDMI cable into the computer's
4
HDMI output and connect the other end to the monitor's HDMI port.
Type-C Port: Use to connect the computer for signals input or charge your
5
phone.
USB 2.0 Type-B Port: Use to connect the computer for signals input only.
6
USB 2.0 Ports: Use to connect a keypad or mouse. Do not insert any other
7
equipment.

Section 4: Stand Installation

Keep the foam underneath the monitor before attaching the stand.
1. Open the package and take out the monitor with foam still attached. Gently place
it face-down on a desktop or table.
2. Take out the stem and base. Use the included screwdriver and screw to fasten
base to the stem.
Stand Stem
Screw x 1
1 2 3
Base
7
4 5 6 7
