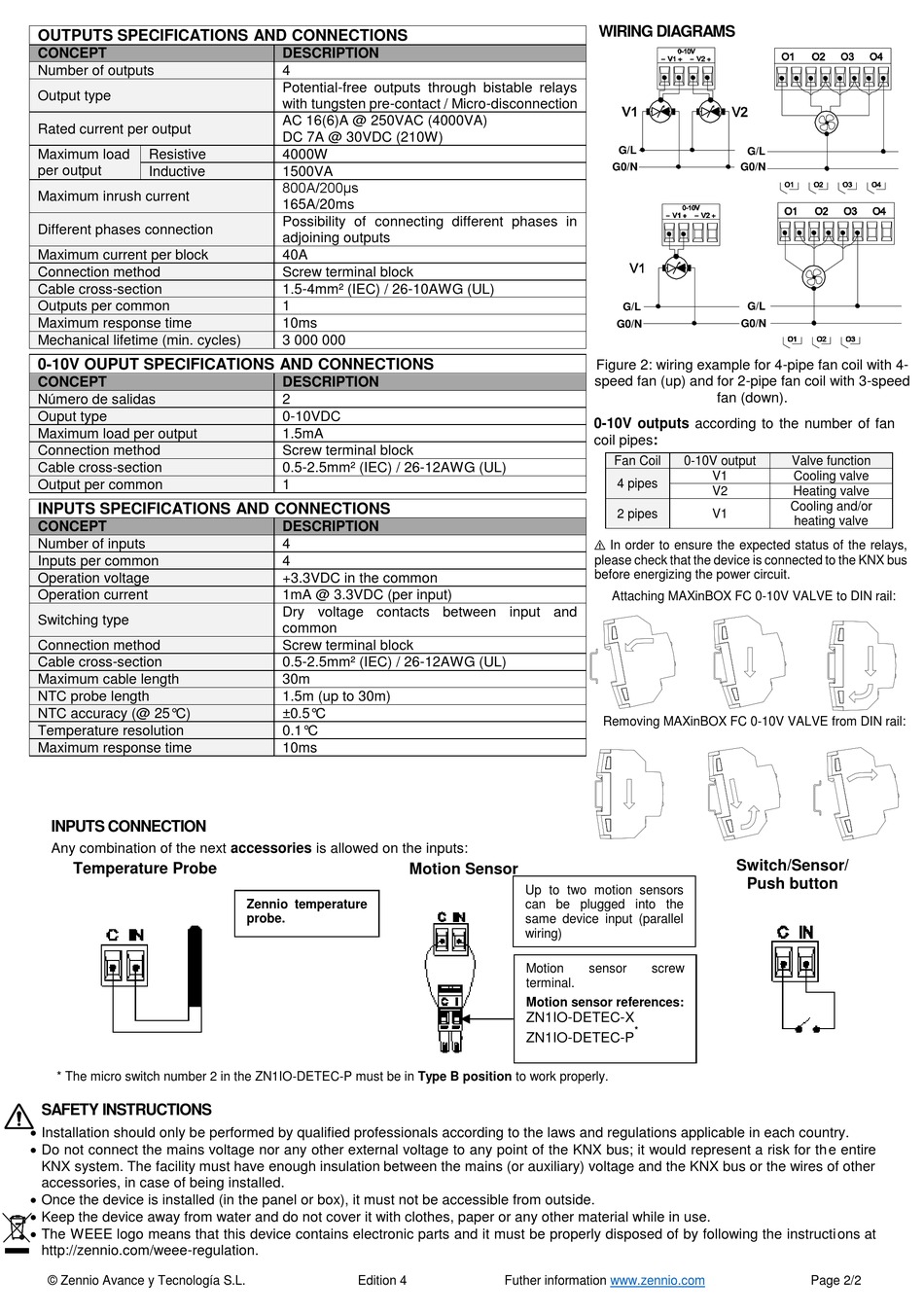

Zennio MAXinBOX FC 0-10V VALVE Manual page 2

OUTPUTS SPECIFICATIONS AND CONNECTIONS
CONCEPT
Number of outputs
Output type
Rated current per output
Maximum load Resistive
per output
Inductive
Maximum inrush current
Different phases connection
Maximum current per block
Connection method
Cable cross-section
Outputs per common
Maximum response time
Mechanical lifetime (min. cycles)
0-10V OUPUT SPECIFICATIONS AND CONNECTIONS
CONCEPT
Número de salidas
Ouput type
Maximum load per output
Connection method
Cable cross-section
Output per common
INPUTS SPECIFICATIONS AND CONNECTIONS
CONCEPT
Number of inputs
Inputs per common
Operation voltage
Operation current
Switching type
Connection method
Cable cross-section
Maximum cable length
NTC probe length
NTC accuracy (@ 25°C)
Temperature resolution
Maximum response time
INPUTS CONNECTION
Any combination of the next accessories is allowed on the inputs:
Temperature Probe
* The micro switch number 2 in the ZN1IO-DETEC-P must be in Type B position to work properly.
SAFETY INSTRUCTIONS
• Installation should only be performed by qualified professionals according to the laws and regulations applicable in each country.
• Do not connect the mains voltage nor any other external voltage to any point of the KNX bus; it would represent a risk for th e entire
KNX system. The facility must have enough insulation between the mains (or auxiliary) voltage and the KNX bus or the wires of other
accessories, in case of being installed.
• Once the device is installed (in the panel or box), it must not be accessible from outside.
• Keep the device away from water and do not cover it with clothes, paper or any other material while in use.
• The WEEE logo means that this device contains electronic parts and it must be properly disposed of by following the instructi ons at
http://zennio.com/weee-regulation.
© Zennio Avance y Tecnología S.L.
DESCRIPTION
4
Potential-free outputs through bistable relays
with tungsten pre-contact / Micro-disconnection
AC 16(6)A @ 250VAC (4000VA)
DC 7A @ 30VDC (210W)
4000W
1500VA
800A/200μs
165A/20ms
Possibility of connecting different phases in
adjoining outputs
40A
Screw terminal block
1.5-4mm² (IEC) / 26-10AWG (UL)
1
10ms
3 000 000
DESCRIPTION
2
0-10VDC
1.5mA
Screw terminal block
0.5-2.5mm² (IEC) / 26-12AWG (UL)
1
DESCRIPTION
4
4
+3.3VDC in the common
1mA @ 3.3VDC (per input)
Dry voltage contacts between input and
common
Screw terminal block
0.5-2.5mm² (IEC) / 26-12AWG (UL)
30m
1.5m (up to 30m)
±0.5°C
0.1°C
10ms
Motion Sensor
Zennio temperature
probe.
Edition 4
WIRING DIAGRAMS
G/L
G0/N
G/L
G0/N
Figure 2: wiring example for 4-pipe fan coil with 4-
speed fan (up) and for 2-pipe fan coil with 3-speed
0-10V outputs according to the number of fan
coil pipes:
Fan Coil
4 pipes
2 pipes
⚠ In order to ensure the expected status of the relays,
please check that the device is connected to the KNX bus
before energizing the power circuit.
Attaching MAXinBOX FC 0-10V VALVE to DIN rail:
Removing MAXinBOX FC 0-10V VALVE from DIN rail:
Up to two motion sensors
can be plugged into the
same device input (parallel
wiring)
Motion sensor screw
terminal.
Motion sensor references:
ZN1IO-DETEC-X
*
ZN1IO-DETEC-P
Futher information www.zennio.com
G/L
G0/N
G/L
G0/N
fan (down).
0-10V output Valve function
V1 Cooling valve
V2 Heating valve
Cooling and/or
V1
heating valve
Switch/Sensor/
Push button
