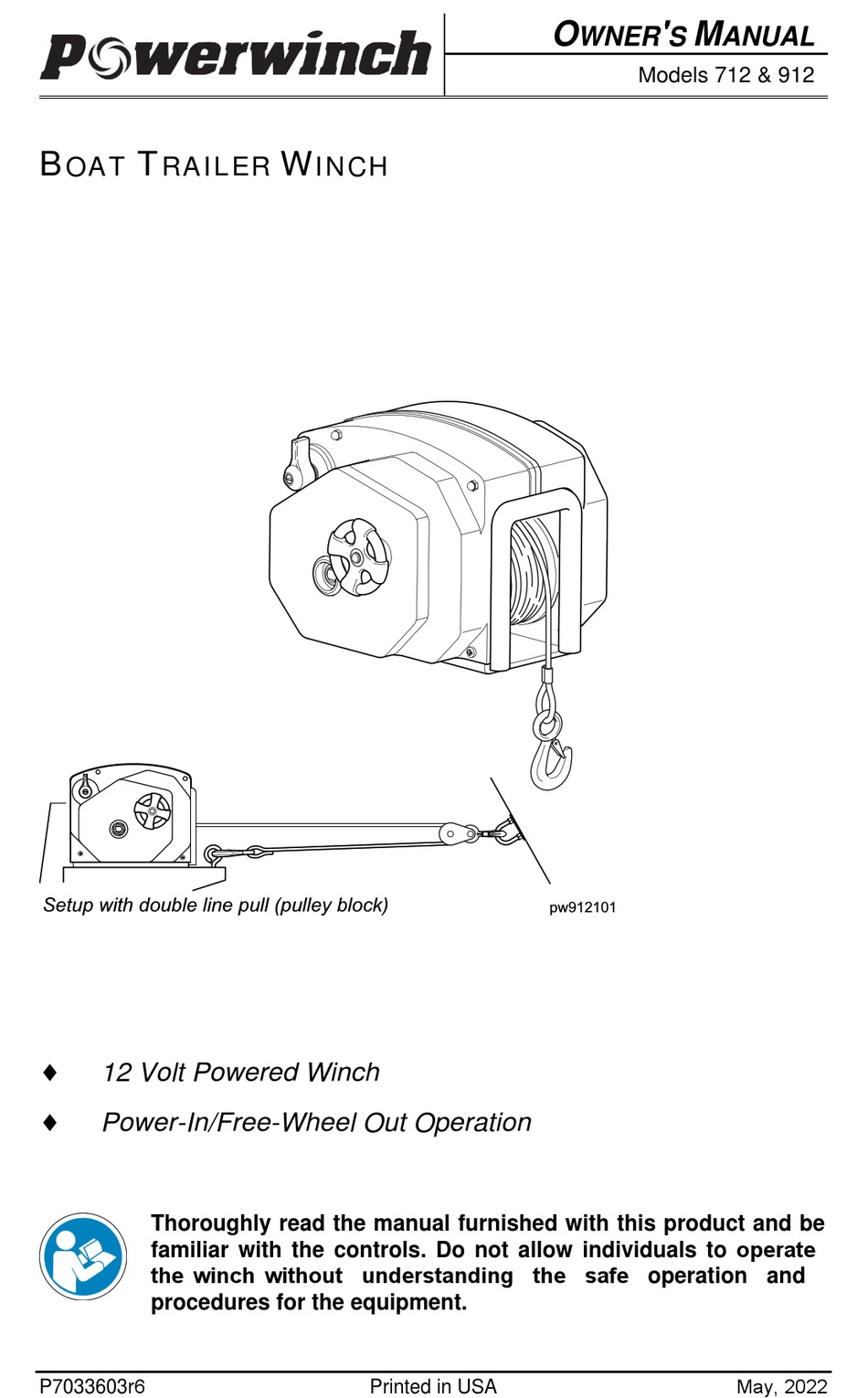

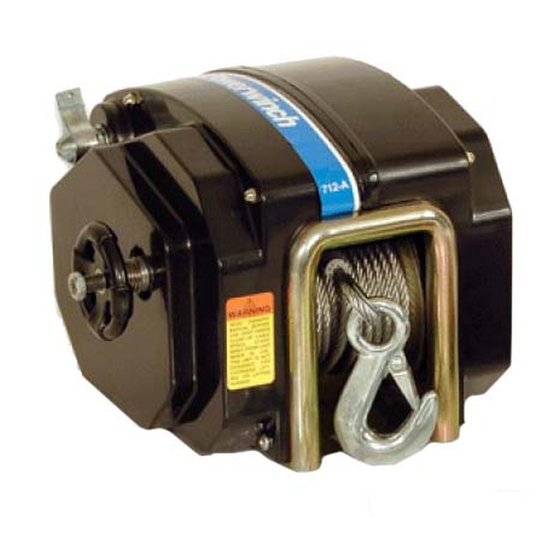

  • Page 1 WNER ANUAL Models 712 & 912 RAILER INCH Setup with double line pull (pulley block) pw912101  12 Volt Powered Winch  Power-In/Free-Wheel Out Operation Thoroughly read the manual furnished with this product and be familiar with the controls. Do not allow individuals to operate the winch without understanding the safe operation and procedures for the equipment.

  • Page 2: Table Of Contents

    ROPRIETARY TATEMENT The Powerwinch Trailer Winch is a product of Scott Fetzer Electrical Group or SFEG, located in Fairview, Tennessee, USA. The information contained in or disclosed in this document is considered proprietary to SFEG. Every effort has been made to ensure that the information presented in the document is accurate and complete.

  • Page 3: Safety Information

    712 & 912 B OWERWINCH RAILER INCH AFETY NFORMATION The following Safety Precautions Must be followed at ALL Times. Failure to follow the warnings and cautions in this manual could result in serious injury and/or property damage. WARNING This product can expose you to chemicals including...

  • Page 4: Specifications

    712 & 912 B RAILER INCH OWERWINCH PECIFICATIONS Various load conditions affect winch performance. The line pull required for a specific application depends on the weight of the load, condition of the trailer rollers, and the degree of the loading ramp incline. The charts below are based on a single line pull and provided as a guideline in calculating pulling capabilities.

  • Page 5: Mounting The Unit

    712 & 912 B OWERWINCH RAILER INCH OUNTING THE OUNTING THE The following instructions are for standard mounting of the winch. A quick mount kit is available (p/n P7700000AJ). If installing with the quick mount kit, follow the directions with the kit. Steps 3, 4 and 6 apply when using the kit.

  • Page 6: Wiring The Unit

    712 & 912 B RAILER INCH OWERWINCH IRING THE WARNING disconnect the battery before HOCK AZARD LWAYS working on electrical equipment. WARNING use the recommended wire size and rated circuit LWAYS breakers. Failure to use the furnished and recommended sizes can cause a fire hazard and void warranty.

  • Page 7: Pulley Block

    712 & 912 B OWERWINCH RAILER INCH ULLEY LOCK The pulley block can increase the pulling capacity approximately 55%. Assembly Instructions: Place the two screws through one of the tear drop plates and hold in place. Slide a bushing over each screw.

  • Page 8: Operating The Winch

    712 & 912 B RAILER INCH OWERWINCH PERATING THE INCH WARNING To avoid personal injury and property damage, clear the area around and behind the boat of people, animals and obstructions before loading or unloading the boat. WARNING Never stand between the load or anchor point and the winch.

  • Page 9: Emergency Hand Crank

    Turn the crank handle to wind in the cable. PW912004 (Clockwise for 912, counterclockwise for 712.) After the boat has been secured on the trailer, remove the handle from the shaft. Replace the nut on the shaft. Store the handle.

  • Page 10: Maintenance

    (refer to figure on page 10). EPLACING THE ABLE CAUTION Always use the exact Powerwinch replacement cable (p/n P7188800AJ). Winch rating and cable strength are matched for safe and optimum performance. NEVER replace the cable with rope. CAUTION wear leather gloves when handling the cable.

  • Page 11: Troubleshooting Guide

    712 & 912 B OWERWINCH RAILER INCH ROUBLESHOOTING UIDE INCH PERATE Confirm power to winch 1. Check that vehicle battery is fully charged. 2. Confirm connections are for tight & clean. Correct as required. 3. Check wires that are worn or bare that may cause shorts.

  • Page 12: Replacement Parts List

    712 & 912 B RAILER INCH OWERWINCH EPLACEMENT ARTS Parts marked with * are not used on 712 Model. pw912501...
  • Page 13 712 & 912 B OWERWINCH RAILER INCH Item Description Notes P7188800AJ P7188800AJ Cable Assy, 7/32" x 40' R001284 R001292 Cover Kit P5594700AJ P5594700AJ Emergency Hand Crank P7904300AJ P7904300AJ Pulley Block Kit P7700000AJ P7700000AJ Quick Mount Kit R001287 R001295 Motor Assy...

  • Page 14: Warranty

    OWERWINCH ARRANTY SFEG warrants to the retail Purchaser that the Powerwinch Product described in this FIRST manual is free of defects in material and workmanship within the terms and conditions as set forth below. SFEG's obligation under this warranty is limited to the repair or replacement with new or refurbished unit, at SFEG’s option, of any defective component within the stated...
  • Page 15 712 & 912 B OWERWINCH RAILER INCH ECORDS EALER NSTALLER DDRESS HONE URCHASE UMBER ERIAL UMBER RODUCT ESCRIPTION Retain your original proof of purchase. It is requi for all warranty repairs and returns. NOTES:...
