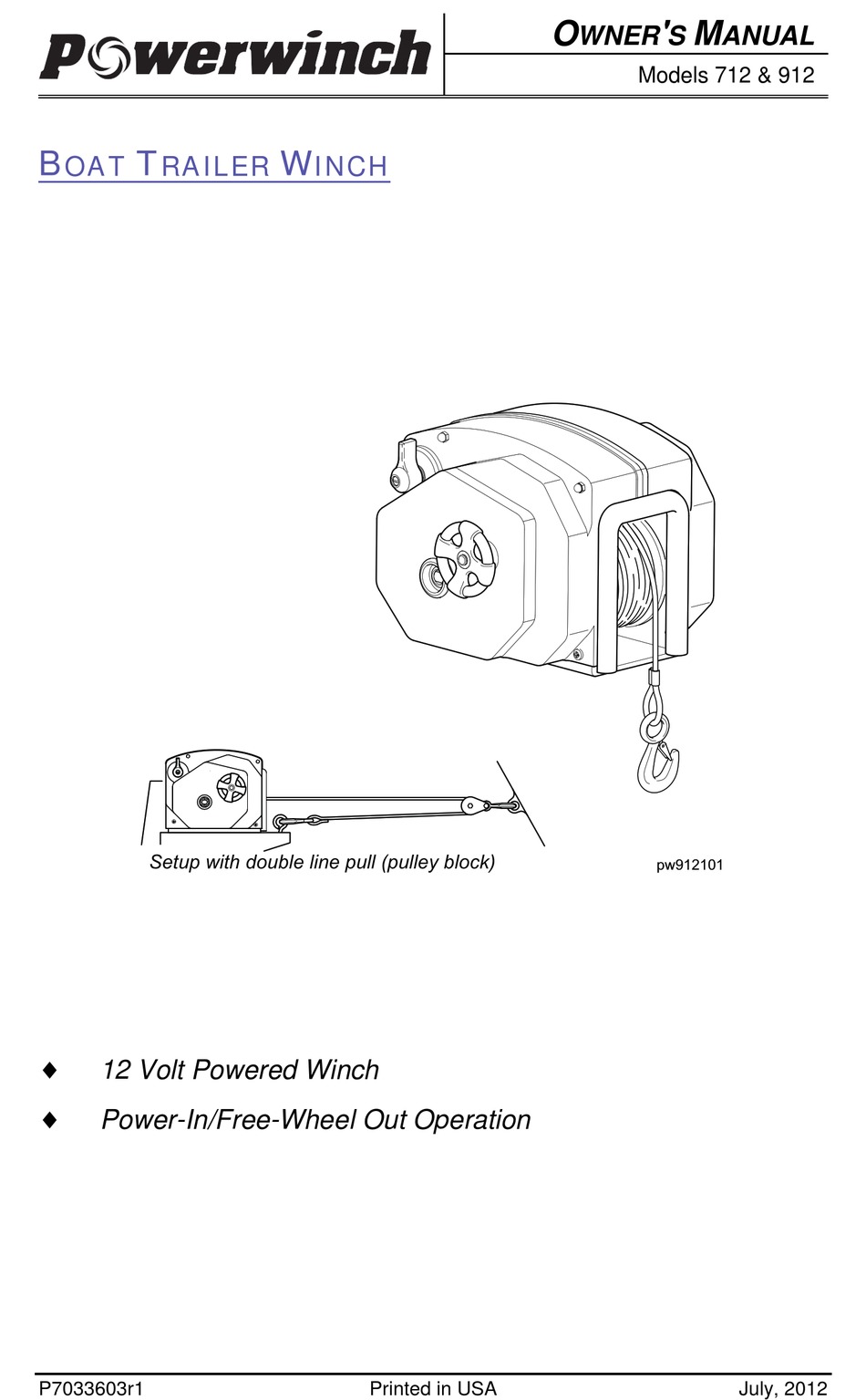

- Page 1 WNER ANUAL Models 712 & 912 RAILER INCH Setup with double line pull (pulley block) pw912101 12 Volt Powered Winch Power-In/Free-Wheel Out Operation P7033603r1 Printed in USA July, 2012...
-
Page 2: Table Of Contents
ROPRIETARY TATEMENT The Powerwinch Trailer Winch is a product of Carefree of Colorado, located in Broomfield, Colorado, USA. The information contained in or disclosed in this document is considered proprietary to Carefree of Colorado. Every effort has been made to ensure that the information presented in the document is accurate and complete. -
Page 3: Safety Information
712 & 912 B OWERWINCH RAILER INCH AFETY NFORMATION WARNING SITUATION WARNING INDICATES A POTENTIALLY HAZARDOUS THAT, IF NOT AVOIDED COULD RESULT IN DEATH OR SERIOUS INJURY AND OR MAJOR PROPERTY DAMAGE CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT... -
Page 4: Specifications
712 & 912 B RAILER INCH OWERWINCH PECIFICATIONS Various load conditions affect winch performance. The line pull required for a specific application depends on the weight of the load, condition of the trailer rollers, and the degree of the loading ramp incline. The charts below are based on a single line pull and provided as a guideline in calculating pulling capabilities. -
Page 5: Mounting The Unit
712 & 912 B OWERWINCH RAILER INCH OUNTING THE OUNTING THE The following instructions are for standard mounting of the winch. A quick mount kit is available (p/n P7700000AJ). If installing with the quick mount kit, follow the directions with the kit. Steps 3, 4 and 6 apply when using the kit. -
Page 6: Wiring The Unit
712 & 912 B RAILER INCH OWERWINCH IRING THE WARNINGS disconnect the battery before working on electrical equipment. LWAYS use the recommended wire size and rated circuit breakers. Failure LWAYS to use the furnished and recommended sizes can cause a fire hazard and void warranty. -
Page 7: Pulley Block
712 & 912 B OWERWINCH RAILER INCH ULLEY LOCK The pulley block can increase the pulling capacity approximately 55%. Assembly Instructions: Place the two screws through one of the tear drop plates and hold in place. Slide a bushing over each screw. -
Page 8: Operating The Winch
712 & 912 B RAILER INCH OWERWINCH PERATING THE INCH WARNINGS To avoid personal injury and property damage, clear the area around and behind the boat of people, animals and obstructions before loading or unloading the boat. Never stand between the load or anchor point and the winch. Serious personal injury could occur if the cable breaks. -
Page 9: Emergency Hand Crank
Turn the crank handle to wind in the cable. (Clockwise for 912, counterclockwise for 712.) After the boat has been secured on the trailer, remove the handle from the shaft. Replace the nut on the shaft. -
Page 10: Maintenance
712 & 912 B RAILER INCH OWERWINCH AINTENANCE UBRICATION The following steps should be performed a minimum of once a year or when the unit is placed in storage. Cable: Lubricate the cable with Whitmore's Wire Rope Spray, WD40 or equivalent. -
Page 11: Troubleshooting Guide
712 & 912 B OWERWINCH RAILER INCH ROUBLESHOOTING UIDE INCH PERATE A. Confirm power to winch 1. Check that vehicle battery is fully charged. 2. Confirm connections are for tight & clean. Correct as required. 3. Check wires that are worn or bare that may cause shorts. -
Page 12: Replacement Parts List
712 & 912 B RAILER INCH OWERWINCH EPLACEMENT ARTS Parts marked with * are not used on 712 Model. pw912501... - Page 13 712 & 912 B OWERWINCH RAILER INCH Item Description Notes P7188800AJ P7188800AJ Cable Assy, 7/32" x 40' R001284 R001292 Cover Kit P5594700AJ P5594700AJ Emergency Hand Crank P7904300AJ P7904300AJ Pulley Block Kit P7700000AJ P7700000AJ Quick Mount Kit R001287 R001295 Motor Assy...
