POWERWINCH Deckmate 25 Free Fall Pontoon Windlass Operating Instructions And Replacement Parts List Manual

Advertisement

Quick Links

Operating Instructions and Replacement Parts List
Please read and save these instructions. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety
information. Failure to comply with instructions could result in personal injury and/or property
damage! Retain instructions for future reference.
Featuring patented
"free fall release
system" & over-
sized davit roller
for smooth hands
free operation
Description
The Deckmate 25 Free Fall Pontoon Windlass assists in the launching and retrieving of a
"mushroom" or "river" style anchor typically used on pontoon boats. This windlass has the capacity to
lift up to a fi fty pound anchor and the patented free fall feature gives it the ability to drop and set the
anchor in a fraction of the time that it takes a traditional power down windlass. The built in light
assists retrieving anchors and launching or retrieving the boat at night.
Unpacking
When unpacking, inspect carefully for any damage that may have occurred during transit. Make sure
any loose fi ttings, bolts, etc.., are tightened before putting unit into service.
General Safety Information
Throughout this manual potential safety hazards will be noted with the following terms.
Please read and understand these terms before operating the product.
Danger means a hazard
that will cause death or
serious in-jury if the
warning is ignored.
© 2022 Powerwinch
®
Warning means a hazard
that could cause death or
serious injury if the warning
is ignored.
Deckmate 25 Freefall Pontoon Windlass
Deckmate 25 Free Fall
Pontoon Windlass
Caution means a hazard that
may cause minor or moderate
injury if the warning is
ignored. It also may mean a
hazard that will only cause
damage to property.
P44054 05/22

Advertisement

loading
Need help?

Need help?

Do you have a question about the Deckmate 25 Free Fall Pontoon Windlass and is the answer not in the manual?

Questions and answers

Bill Thompson
March 20, 2025

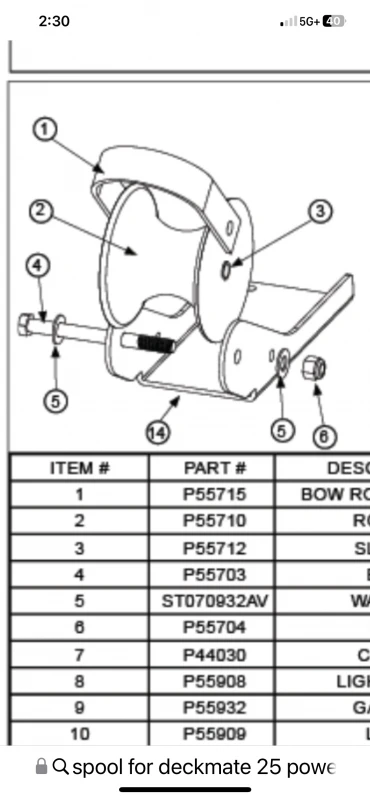

I need the front roller Part number P55710
