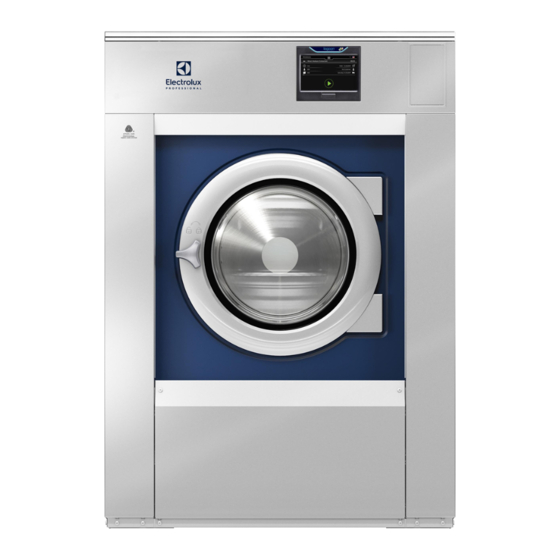

- Page 1 User manual Washer extractor WH6–14LAG Clarus Vibe Type W3..438921390/EN Original instructions 2023.10.16...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Symbols............................6 2 Warranty terms and exclusions......................7 3 General ..............................8 4 Handling .............................9 Load ............................9 Detergent ..........................9 To start a wash program ......................10 When program has ended ......................12 5 Menus and functions .........................13 Main menu ..........................13 5.1.1 Edit programs ........................14 5.1.2 Statistics........................18... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • Only use detergent intended for water-wash of textiles. Never use dry cleaning agents. •... -
Page 6: General Safety Information
User manual by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. – This appliance is intended to be used in household and similar applications such as: (IEC 60335-2-7) staff kitchen areas in shops, offices and other working environ- ments, farm houses, by clients in hotels, motels and other residential type environ- ments, bed and breakfast type environments, areas for communal use in blocks of flats or in launderettes. -
Page 7: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 8: General
User manual 3 General There are a large number of wash programs for different business segments available in the machine but only the wash programs suitable for the business segment selected are visible on the program selection screen. It is possible to create new wash programs directly on the user interface. A wash program created in one model/size of machine can be transferred to another model/size without changing any parameters. -
Page 9: Handling
User manual 4 Handling 4.1 Load Load the goods into the machine according to recommendations and close the door. Recommended maximum load Lagoon programs General programs Wet-cleaning load (Wool, Silk etc) Normal load 7 kg 14 kg 4.2 Detergent Add the correct amount of detergent, bleach and softener according to recommendations. (Not valid if automatic dosing is used). -
Page 10: To Start A Wash Program
User manual 4.3 To start a wash program Tap to select a program from the list. Depending on machine set up the programs are displayed as a list or as a grid. fig.X01573A fig.X01573 In list view you can get a quick view of the main parameters in the wash program: the calculated program duration, the highest programmed temperature and the final extraction speed in G. - Page 11 User manual Activate the information menu for more details about selected program. Information about the different program parameters are shown on the screen. Information The actual temperature The highest programmed temperature If there is a Cool down module in the program or not Thermal disinfection (maintain temperature) Remaining time in the current program module Duration of the program...
-
Page 12: When Program Has Ended
User manual Before start it is possible to add information about the wash load to be run. The menu items are selected in the Set- tings menu. Follow the on screen instructions for each menu item. This information will be shown at the end of the wash cycle and will also be stored in Statistics and be included in reports. -
Page 13: Menus And Functions
User manual 5 Menus and functions 5.1 Main menu Enter a password to access the Main menu. There are different passwords for different levels of access. Default passwords set from factory are: • 0000: Manager: Chemical dosing (Used to edit pump settings) •... -
Page 14: Edit Programs
User manual 5.1.1 Edit programs In this menu it is possible to change settings for any selected program. When activating this menu all available wash programs are listed. For factory made programs it is however only possible to change the amount of chemicals. Copy/duplicate a program by a long press. - Page 15 User manual Action and speed settings Select drum rotation action during the different steps from the drop down list with predefined and tested rotation and standing still times. Select drum speed during the different steps. The value is set between 0–1.00G. For action and speed settings, please refer to section “Drum filling action”.
- Page 16 User manual Drain module Action and speed during drain. Extraction module • Speed – Select extraction speed from the drop down list with predefined and tested G-forces. The same rotation speed in different sizes of drum diameters gives different dewatering. Therefore, the speed is speci- fied in G instead of revolutions per minute (rpm).
- Page 17 User manual Drum filling action Drop down list Action Rotation in sec. No rotation in sec. None None Normal 15s rotation/4s still. Fast acceleration. Mild 8s rotation/7s still. Slow acceleration. Delicate 6s rotation/18s still. Very slow acc. Delicate Wool 6s rotation/ 50s still. Slow acc. Delicate Care 6s rotation/ 30s still.
-
Page 18: Statistics
User manual 5.1.2 Statistics This function is used to check the statistics of the machine. For example total program run hours, used chemicals, power fails etc. -
Page 19: Pumps
User manual 5.1.3 Pumps In this menu you can manage dosing systems/pumps such as Dosave, Jetsave or other pumps connected to the machine. Pumps Select pump type connected • Select “Peristaltic” for Dosave (or any other dosing system or pumps connected to the digital (relay) outputs). •... -
Page 20: Settings
User manual 5.1.4 Settings In this menu, different settings to the machine can be made. The table show some of the settings that can be changed/set. Language • Default language – Choose from the drop down list which language that shall be used as default language on the machine. •... - Page 21 User manual • Programs Select if buttons for selection of chemicals shall be visible or not on the start screen. There can be a maximum of three buttons for chemical selection. One for detergent, one for bleach and one for softener. For each button it is possible to select the following: –...
- Page 22 User manual Payment and booking systems There are different ways to communicate with payment and booking systems. Some payment/booking systems use serial communication protocols, other systems use digital outputs/inputs. For systems that use digital signals, the following applies: • A payment system (coin selector or card reader) that is mounted inside the washer extractor should be connected to the internal coin input as described in the instruction that follows with the payment system.
-
Page 23: Service
User manual 5.1.5 Service This menu is mainly used for trouble shooting and functional tests. • It is possible to turn on/off outputs and also to check the status of inputs. • The drum motor can be ordered to run at a desired speed and direction. •... -
Page 24: Transfer
User manual 5.1.6 Transfer This menu is used to transfer/copy programs and settings to/from the machine by using a USB memory. Follow the instructions on the screen. Download statistics report for the selected period. Transfer wash programs to/from the USB memory by drag and drop. Upload wash program images from the USB memory. -
Page 25: Maintenance
User manual 6 Maintenance 6.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 26: Detergent Container
User manual 6.4 Detergent container Clean the detergent container at regular basis to avoid that it is being clogged by detergent residue. fig.X01622A 6.4.1 Deliming When deliming is needed: Use the special machine cleaning program. If the program is not available, use the Settings menu to add the program to the program selection screen. -
Page 27: Water Inlet
User manual 6.6 Water inlet At regular basis, check the filter at the water inlet. Clean if necessary. Demount the hose to the water inlet and pull out the filter (A). When remounting, make sure the filter is in position and that the connections are tight. fig.7706 6.7 Cleaning the mop elements (Only valid for mop machines). -
Page 28: Disposal Information
User manual 7 Disposal information 7.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 32 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
