Summary of Contents for Electrolux Professional WP4 700H

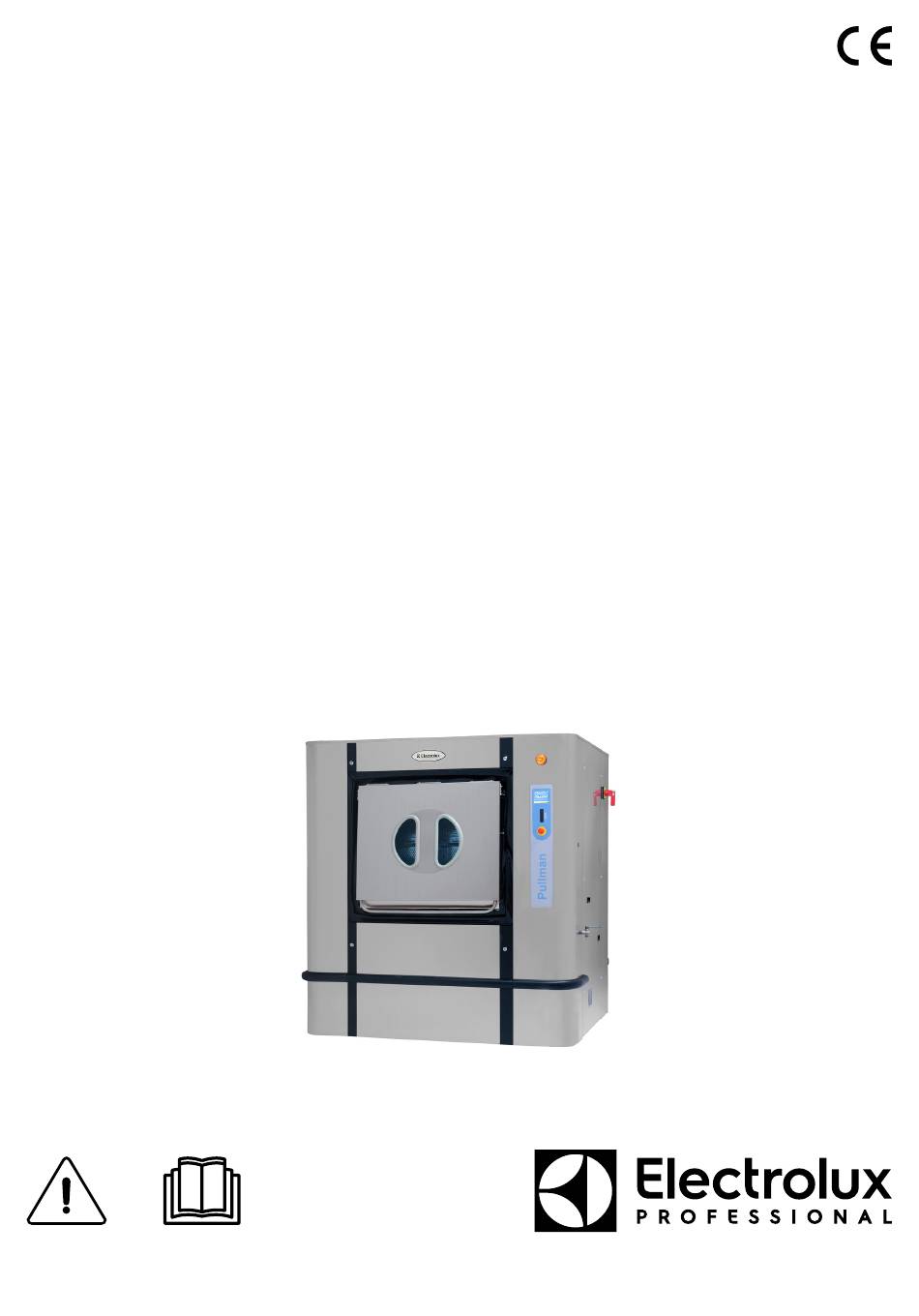

- Page 1 Installation manual Washer-extractors WP4– WPB4 700–900–1100H 05201052/EN original instructions...
-
Page 3: Table Of Contents
Contents Contents 1 . Safety precautions..........................5 Symbols..........................11 Personal protection equipment....................12 Preliminary instructions ......................12 2 Environmental information .........................13 3 Locking and tagging procedure......................14 4 Handling ............................16 Lifting with a fork-lift truck ......................16 Lifting with handlings straps ......................17 5 Packing-Weight..........................18 Packing...........................18 Weight ............................18 6 Technical characteristics ........................19 Washer extractor type 700 ......................19... -
Page 5: Safety Precautions
Installation manual 1 . Safety precautions CAUTION READ THIS ENTIRE MANUAL BEFORE USAGE This machine should be installed in conformance to the health and safety regulations, and only used in a sufficiently aerated area. Check the instructions before installing or using the machine. - Page 6 Installation manual CAUTION Before any use, to retire all the parts needed to install the machine put in the drum , please follow these actions 1. connect compressed air. 2. Remove the side housing cabinet. 3. Push on the orange button of the D9/D10 distribution unit in the electric cabinet. (see drawing below) 4.
- Page 7 Installation manual CAUTION Users must have learnt how the machine operates. This device must not be installed in places accessible to the public. The machine is only intended for water-wash use. Do not allow minors to use the machine. Do not hose down the machine with water. Only use detergent intended for water-wash of textiles Never use dry cleaning agents.
- Page 8 Installation manual IMPORTANT The identification plate is located on the right side near the main switch. Never use the main switch as an emergency stop. Use it only when the machine does not work in progress. Instead of that, use the emergency stop buttons in both sides of the machine.
- Page 9 Installation manual The machines comply with the European Directive EMC (Electromagnetic Compatibil- ity). They have been tested in laboratory and approved as such. It is so prohibited to add wires or nonshielded electric cables in the cabinets, strands or cables' troughs. Considering that the volume of the outer drum is superior to 150 litres, the standard kept for the electric part is the IN 60204.
- Page 10 Installation manual THINK OF THE ENVIRONMENT! The use and handling of chemical products such as detergent, chlorine, acids, desca- ling agents, etc may create hazards for health and environment ; the following precau- tions should be taken: • Do not breathe the dusts or steam; •...
-
Page 11: Symbols
Installation manual 1.1 Symbols Caution. Caution, presence of dangerous current. Read the instructions before using the machine. -
Page 12: Personal Protection Equipment
Installation manual 1.2 Personal protection equipment Given below is a summary table of the Personal Protection Equipment (PPE) to be used during the various phases of the machine’s service life. Phase Protection Safety Gloves Glasses Ear protectors Mask Safety helmet garments footwear Transport... -
Page 13: Environmental Information
Installation manual WARNING Risk of the upper door being raised quickly on loading WARNING After the installation, Send back the commissionning form ,signed document, to Elec- trolux to validate the warrantly of the product. 2 Environmental information Concerned by providing the end user with useful and necessary environmental information, we wish to precise: •... -
Page 14: Locking And Tagging Procedure
Installation manual Scrapping of machine When the machine is no longer to be used, it must be submitted to a recycling facility for destruction. The majority of the components in the machine can be reused, but it also contains other materials that must be taken care of in the correct way. - Page 15 Installation manual Close and carefully lock the fixed protectors. Unlock the stop valves and the main switch.
-
Page 16: Handling
Installation manual 4 Handling Important It is obligatory that all these operations are undertaken by handling specialists. Before any handling, check that the four transport locks fitted are still in place and well-tightened. To do so, remove the side casings and check presence of four locks (B) and the down casings for the four locks (A). Caution To handle the machine, you must imperatively reassemble the transport bridles and dis engage the load cells (proceed in reverse order or “remove of the transport locks fitted”... -
Page 17: Lifting With Handlings Straps
Installation manual 4.2 Lifting with handlings straps Lifting in that case can only be done with handling straps (minimum capacity 3000 daN / 6600 lb) which bear weight of the machine. Caution Make sure to place the straps correctly to avoid any bending of parts of the machine. Caution In order to avoid any bending of casings, you should never climb and stand on top of the machine. -
Page 18: Packing-Weight
Installation manual 5 Packing-Weight 5.1 Packing Packing dimensions in mm/in Size A Size B Size C Washer extractor type WP/WPB4 700 1690 / 67” 1720 / 68” 2330 / 92” Washer extractor type WP/WPB4 900 1670 / 66” 1970 / 78” 2330 / 92”... -
Page 19: Technical Characteristics
Installation manual 6 Technical characteristics 6.1 Washer extractor type 700 One door WP4 700H: Drawing 07100140 Barrier WPB4 700H: Drawing 07100141... - Page 20 Installation manual Washer extractor type 700 one door (Diagram N° 07100140 and 07100141) Units WP4 700 WPB4 700 Drum diameter mm / “ 1050 / 41.33” 1050 / 41.33” Drum length mm / “ 794 / 31.26” 794 / 31.26” Drum volume litre...
- Page 21 Installation manual Opening inner drum doors (LxH) 670”490 670x490 Opening outer drum door (LxH) 728”698 728”698 G-factor, max. Specific load 1/10 ¹ ISO 93 98–4 standard type C kg / lb 68.5 / 151.52 Floor area m² 2.04 2.04 Max. unbalance Net weight 2530* 2530*...
-
Page 22: Connections Wp-Wpb4 700
Installation manual 6.2 Connections WP-WPB4 700 : Water Units WP4 700 WPB4 700 Water valves connection mm-BSP DN32–1”1/4″ DN32–1”1/4″ Capacity at 250 kPa l/min Functioning limits for water valve 50–300 50–300 Water consumption for a wash program Drain Units WP4 700 WPB4 700 Drain connection, outer ⌀... - Page 23 Installation manual Rated electric power, electric heating 65.7 65.7 Rated electric power, steam heating / indirect steam heating 11.7 11.7...
- Page 24 Installation manual Heating Units WP4 700 WPB4 700 Installed heating power, electric heating Electric consumption for a standardized cycle, electric heating 17.8 17.8 Electric consumption for a standardized cycle, steam heating Floor load Units WP4 700 WPB4 700 Max transmitted floor load 3600 3600 Max.
-
Page 25: Washer Extractor Type 900
Installation manual 6.3 Washer extractor type 900 One door WP4 900H: Drawing 07100138... - Page 26 Installation manual Barrier WPB4 900H: Drawing 07100139 Washer extractor type 900 (Diagram N° 07100138 and 07100139) Units WP4 900 WPB4 900 Drum diameter mm / “ 1050 / 41.33” 1050 / 41.33” Drum length mm / “ 1026 / 40.39” 1026 / 40.39”...
- Page 27 Installation manual Drum volume litre Opening inner drum doors (LxH) 900”490 900x490 Opening outer drum door (LxH) 958”698 958”698 G-factor, max. Specific load 1/10 ¹ ISO 93 98–4 standard type C kg / lb 88.5 / 195.2 Floor area m² 2.35 2.35 Max.
-
Page 28: Connections Wp-Wpb4 900
Installation manual 6.4 Connections WP-WPB4 900 : Water Units WP4 900 WPB4 900 Water valves connection mm-BSP DN32–1”1/4″ DN32–1”1/4″ Capacity at 250 kPa l/min Functioning limits for water valve 50–300 50–300 Water consumption for a wash program 1190 1190 Drain Units WP4 900 WPB4 900... - Page 29 Installation manual Rated electric power, electric heating 87.7 87.7 Rated electric power, steam heating / indirect steam heating 15.7 15.7...
- Page 30 Installation manual Heating Units WP4 900 WPB4 900 Installed heating power, electric heating Electric consumption for a standardized cycle, electric heating 24.3 24.3 Electric consumption for a standardized cycle, steam heating Floor load Units WP4 900 WPB4 900 Max transmitted floor load 4100 4100 Max.
-
Page 31: Washer Extractor Type 1100
Installation manual 6.5 Washer extractor type 1100 One door WP4 1100H: Drawing 07100136... - Page 32 Installation manual Barrier WPB4 1100H: Drawing 07100137 Washer extractor type 1100 (Diagram N° 07100136 and 07100137) Units WP4 1100 WPB4 1100 Drum diameter mm / “ 1050 / 41.33” 1050 / 41.33” Drum length mm / “ 1256 / 49.45” 1256 / 49.45”...
- Page 33 Installation manual Drum volume litre 1083 1083 Opening inner drum doors (LxH) 900”490 900x490 Opening outer drum door (LxH) 958”698 958x698 G-factor, max. Specific load 1/10 ¹ ISO 93 98–4 standard type C kg / lb 108.3 / 238.87 Floor area m²...
-
Page 34: Connections Wp-Wpb4 1100
Installation manual 6.6 Connections WP-WPB4 1100 : Water Units WP4 1100 WPB4 1100 Water valves connection mm-BSP DN32–1”1/4″ DN32–1”1/4″ Capacity at 250 kPa l/min Functioning limits for water valve 50–300 50–300 Water consumption for a wash program 1490 1490 Drain Units WP4 1100 WPB4 1100... - Page 35 Installation manual Rated electric power, electric heating Rated electric power, steam heating / indirect steam heating...
-
Page 36: Sound Levels
Installation manual Heating Units WP4 1100 WPB4 1100 Installed heating power, electric heating Electric consumption for a standardized cycle, electric heating 25.3 25.3 Electric consumption for a standardized cycle, steam heating Floor load Units WP4 1100 WPB4 1100 Max transmitted floor load 4450 4450 Max. -
Page 37: Supplies
Installation manual 9 Supplies Take the box placed inside of the inner drum. Important you must connect the compressed air to unlock the loading door.Then push on the orange button of the D9/D10 distribution unit in the electric cabinet.So you can access in the drum. 1. -
Page 38: Barrier Partition
Installation manual 10 Barrier partition Leave at least 1 m (40") (according to the recommendation in standard EN 60204) between the machine, a wall or any other machine at the sides. mm/in WPB4 700H 1570 2080 2040 1490 WPB4 900H 1800 2080 2040... -
Page 39: Mechanical Installation
Installation manual 11 Mechanical installation Depending on its destination, the washer extractor is delivered bare or may be placed on a transport pallet and/or packed with plastic film. In some cases, it may be delivered in a crate, or in maritime packing (wood box). 11.1 Unpacking Take off the plastic film or remove the four wood socles with a spanner.. -
Page 40: Instructions For Securing The Machine On The Ground
Installation manual Moving machines sealed with the shock absorber runners • Moving machines sealed with the shock absorber runners 11.4 Instructions for securing the machine on the ground Caution Only for machines without weighing equipment. Place the machine on a perfectly even surface and horizontal. Control this using a water level (see drawing). - Page 41 Installation manual Put the machine in position and secure it with the dowels without tighten. Bolsters: G Water level: N...
-
Page 42: Setting The Bolsters
Installation manual Caution Only for machines with weighing equipment. Place the machine on a perfectly even surface and horizontal. Control this using a water level (see drawing). Each point must be level. Weighing equipment: P Water level: N Fixing dowels: C Flange safety locks: B Mark the place of the drilling hole for the fixing dowels (C) and drill the holes for fixing of flanges (holes ⌀... -
Page 43: Remove Of The Transport Locks Fitted
Installation manual The indicated faces on the drawing must be aligned. Aplly equally glue to each face of the used wedges. Put the machine in position and secure it with the bolts (F) without tighten . Electrical safety device : As rubber is a very good electric insulating material, the earthing of the machine is mandatory. -
Page 44: Drain Connection
Installation manual Important Never handling the machine without the transportation bridles. 13 Drain connection The machine's exhaust sleeve outside diameter is of 110 mm (4.33″). It is located underneath the machine. The waste water collector diameter 200 mm (7.87″) (manufactured by customer) should have a 3 cm/m (3 %) slope and resist to a temperature of 90 °C (194 °F). -
Page 45: Waters Connections
Installation manual 14 Waters connections Washer extractors are assembled in standard execution with two waters inlet. One hot water and one hard water. On option, a third water inlet (soft) is possible. The supply pipes to the machine should be fitted with manual shut-off valves to facilitate installation and service. Fit filters to the manual shut-off valves with Teflon. - Page 46 Installation manual The factory setting is 3 bar for the pressure. You must adjust the electrovalves according to the water pressure of your network. • Unscrew the nut (C) of each electrovalve and screw the screw (B) up to the end, •...
-
Page 47: Liquid Detergents Connection
Installation manual 15 Liquid detergents connection The machine is equiped with a connection for the use of external liquid detergents. If you do not use the detergent box, please use the cap delivered with the machine in oder to avoid vapour from steaming out through the opening of the bow downpipe. -
Page 48: Connection Scheme Of Liquid Detergents
Installation manual 15.1 Connection scheme of liquid detergents We advise you to use one of the two systems shown hereby to connect your liquid detergents. Single inlet dose controller with a compulsory rinsing device. 3 way valve Retention tank Pump Scoops + Rinsing Liquid detergents Water... -
Page 49: Electrical Liquid Detergents' Connection
Installation manual 15.2 Electrical liquid detergents' connection Electrical installation must be carried out by an authorized personnel. The A8 output relay card allows to connect from 1 to 16 electrovalves of liquid detergents. The card is situated on the up right side of the electric box. Carry the connection cables by the partition crossing and the cable through of the machine. - Page 50 Installation manual Connection on the A8 output relay card Common of signals Signal 1 Signal 2 Signal 3 Signal 4 Signal 5 Signal 6 Signal 7 Signal 8 Signal 9 Signal 10 Signal 11 Signal 12 Signal 13 Signal 14 (controlled by water level) Signal 15 (controlled by water level) Signal 16 (reserved) Supply voltage : 250 V~ maximum...
-
Page 51: Steam Connection
Installation manual 16 Steam connection For transport reasons, the steam electrovalve is dismantled and placed in the cardboard box supplies. The inlet pipe to the machine has to be fit with a manual stopping valve to ease installation and maintenance and a flexible steam supply pipe to allow reliable running of automatic weighing system. -
Page 52: Air Vent Connection
Installation manual Steam connection low pressure Hereunder values apply to the steam pressure: Recommended pressure: 250 kPa (0.5 kg/cm²) (36 psi) Connection size: DN 32 (1"1/4 BSP male). Connect the steam installation on the top of the machine (see example sketch). Washer-extractor Steam inlet Manual stop wheel valve DN 32 (1"1/4 BSP) (provided by customer) - Page 53 Installation manual...
-
Page 54: Note About The A.c. Power
Installation manual 18 Note about the A.C. power According to the EN 60204-1:1997 standard, the machine is provided for A.C. supplies corresponding to the ex- tracted characteristics below : 4.3.2 A.C. supplies Voltage: Steady state voltage: from 0.9 to 1.1 of nominal voltage. Frequency: from 0.99 to 1.01 of nominal frequency continuously. - Page 55 Installation manual 35 °C 1.08 40 °C 1.00 45 °C 0.91 50 °C 0.82 55 °C 0.71 60 °C 0.58 Table 3 (correction factors for different cable insulating materials) Insulating material Max. Working tempera- Correction factor ture range 70°C (158 °F) 1.00 Natural or Synthetic Rubber 760°C (140 °F...
-
Page 56: Electricity Power Supply
Installation manual Table 4 (B2, C and correction factors for cable grouping) Number of cables Seated in Cable Duct Wall fixing or Cable trough Cable tray 1.00 1.00 1.00 0.80 0.85 0.87 0.65 0.75 0.78 0.57 0.72 0.75 0.50 0.70 0.73 The total current included for using Table 1 should be the maximum rated current for the machine divided by the product of the different correction factors. - Page 57 Installation manual The use of power electronics (converter or filter for example) may lead to unexpected release of breakers with 30 mA differential current device. Therefore a Type B residual differential protection system with reinforced immunity of 300 mA in accordance with standard NFC 15100 must be used for our washing machines.
-
Page 58: Compressed Air Connection
Installation manual Caution In case of a machine with integrated weighing, you must use a flexible power supply cable to connect the machine. Machine Connection cable Heating Supply Voltage Rated Intensity Rated Power Protection type section Electric 380/415 V 3+E ~ 50/60 Hz 65.7 kW 100.5 A 4 x 35 mm²... -
Page 59: Function Checks
Installation manual 22 Function checks Caution Before putting the machine into service, carry out the working tests. The operating inspection must be done by an approved technician. Magnetic detector for tank door safety Caution Before starting the appliance, please remove the bottom guard and check that the magnetic detector is correctly aligned. - Page 60 Installation manual Manual operation The procedure for operating the various machine functions manually is described in the chapter "Machine operation" under the heading "Manual operation". • Switch on the machine's main switch and check the voltage on the three phases (3 x 400 volts). •...
- Page 61 Installation manual • Check the direction of rotation of motion motor fan . (see arrow stuck on the fan) Switch off the current and shift two phases on the main switch of the machine if the fan rotates in the wrong direction.
-
Page 62: Explanation Of Washing Symbols
Installation manual 23 Explanation of washing symbols (ISO 3758:2005 standard) To overcome language barriers, the following are symbols used internationally to give you guidance and recommen- dations when washing different textiles. 23.1 Washing The tub symbolizes washing. Max. washing tem- Symbols Mechanical action perature in °C... -
Page 63: Drying
Installation manual Symbols Explanation Bleaching allowed (chlorine or oxygen). Bleaching allowed (only oxygen). Do not bleach. 23.3 Drying The circle in a square symbolizes tumble drying. Symbols Explanation Can be put in a tumble dryer. Normal temperature. Can be put in a tumble dryer. Lower temperature. - Page 64 Installation manual Mild dry cleaning with solvent of hydrocarbon. Do not dry clean. Normal water cleaning. Mild water cleaning. Very mild water cleaning.
-
Page 65: Conversion Of Measurement Units
Installation manual 24 Conversion of measurement units This following is a list of correspondences of the main frequency used units, to avoid the need to use measurement unit conversion table. 1 bar = 100 000 Pa British thermal unit 1 Btu = 1 055.06 J 1 bar = 1.019 7 kg/cm²... - Page 68 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
