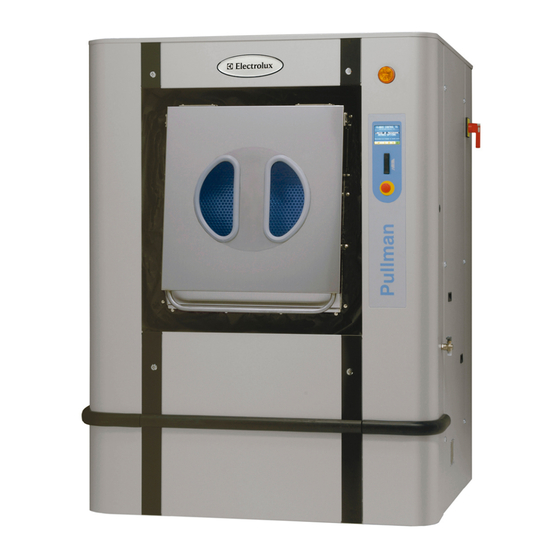

- Page 1 Instruction for installation CMIS card WP4700H – WP4900H – WP41100H WPB4700H – WPB4900H – WPB41100H The mechanical and electrical installation of the machine should only be done by qualified personnel. 04201028GB 28.2014...
- Page 3 Installation Action on the machine • A connecting cable A (no. 3115086) CP1 / X84 • Kit (no. 988916257) is supplied with a set of spare parts including : CMIS Machine Interface Stuffing box Plastic spacers Connecting cable to CMIS Interface / Machine Switch off the machine with the main switch. 2 Remove the side panel of protection of the switch cabinet 3 Mount the four plastic spacers on the support of the In/Out card of the machine or on the CMIS card support plate (place this plate near the In/Out card). 4 Mount the CMIS card on the four plastic spacers. D2269 Connect the plug of Network cable A to terminal X84 of the CMIS Machine Interface. Connect DB9 male plug to the CP1 female plug in the electric cabinet. D2270...
- Page 4 Installation Connect the wire-network cable C (4 x 0.22 mm²) from CMIS Interface PC to terminal X79 of the machine card. CMIS card Example of connection Red wire 24 V White wire Black wire Blue wire GNDN D1491B 7 Mount the grommet in the hole Ø 16 on the top of the machine. Pass the wire- network cable C (4 x 0.22 mm²) in this grommet. Note that terminals 1, 2, 3, 4 on the CMIS Machine Interface should be connected to corresponding terminals 1, 2, 3, 4 on CMIS Interface PC. Wire should NOT be twisted. When the network is powered-up, the green LED B should lighted up. For connecting and configuring, see separate manual "Installation manual CMIS". D0926...
- Page 8 www.electrolux.com/laundrysystems Share more of our thinking at www.electrolux.com...
