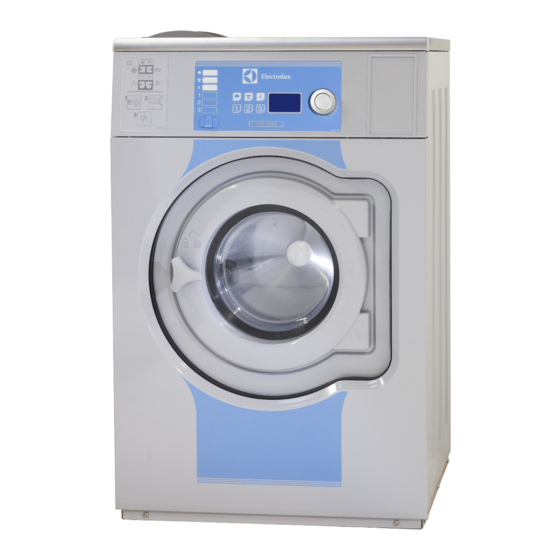

- Page 1 User manual Washer extractor W565H, W565HLE, W575H, W575HLE, W5105H, W5130H, W5180H, W5240H, W5300H Type W3... 438 9096-40/EN Original instructions 2021.06.16...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Symbols............................6 2 Warranty terms and exclusions......................7 3 Program description ..........................7 General.............................7 Program description ........................8 Option buttons .........................10 4 Handling ............................11 Load ............................11 Detergent ..........................11 How to start the machine ......................12 4.3.1 AHL..........................12 4.3.2 Mop..........................13 4.3.3 Hygiene .........................14... -
Page 5: Safety Precautions
• The openings in the base, shall not be obstructed by a carpet. • Maximum mass of dry cloth: W565H, W565HLE: 7 kg, W575H, W575HLE: 8 kg, W5105H: 11 kg, W5130H: 14 kg, W5180H: 20 kg, W5240H: 27 kg, W5300H: 33 kg. -
Page 6: General Safety Information
User manual 1.1 General safety information The machine is only intended for water-wash use. Do not hose down the machine with water. In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma- chine should be placed in room temperature for 24 hours before being used for the first time. -
Page 7: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 8: Program Description
User manual 3.2 Program description The following table shows some examples of available programs and a short description of those: Program Description NORMAL COLOUR Cotton and terry. Different temperatures can be selected. 30°C - 60°C. Detergent without bleach should be used. For an optimal result, full load is recommended. - Page 9 User manual The following table shows some examples of available programs used on coin operated machines and a short de- scription of those: Program Description Cotton and terry. COLD 40°C. For an optimal result, full load is recommended. WARM Cotton and terry. 60°C.
-
Page 10: Option Buttons
User manual 3.3 Option buttons The machine is equipped with a number of options adapted to the range of use to which the machine is intended — different markets use different options. The following table shows some examples of available options and a short description of those: Option button Description ECO PROGRAM... -
Page 11: Handling
User manual 4 Handling 4.1 Load Load the goods into the machine according to recommendations and close the door. Maximum load W565H, 7 kg W565HLE W575H, 8 kg W575HLE W5105H 11 kg W5130H 14 kg W5180H 20 kg W5240H 27 kg... -
Page 12: How To Start The Machine
User manual 4.3 How to start the machine This manual cover different types of machine models. Check the panel on your machine and follow the description for your type of machine. 4.3.1 Select program by turning the control knob. It is also possible to select one of the wash triangle options and/or other options. Note! Some programs do not allow options. -
Page 13: Mop
User manual 4.3.2 Select program by turning the control knob or select program with the quick selection buttons (if some of the buttons are programmed with this function). It is also possible to select options (if some of the buttons are programmed with this function). Note! Some programs do not allow options. -
Page 14: Hygiene
User manual 4.3.3 Hygiene Select program by turning the control knob or select program with the quick selection buttons (if some of the buttons are programmed with this function). It is also possible to select options (if some of the buttons are programmed with this function). Note! Some programs do not allow options. -
Page 15: Restaurant
User manual 4.3.4 Restaurant Select program by turning the control knob or select program with the quick selection buttons (if some or all of the buttons 1–3 are programmed with this function). It is also possible to select one of the wash triangle options and/or other options (if some or all of the buttons 1–3 are programmed with this function). - Page 16 User manual Restaurant with no buttons Select program by turning the control knob. Example of programs NORMAL COLOUR Different temperatures can be selected. 40°C - 60°C. NORMAL WHITE Different temperatures can be selected. 40°C - 60°C. Start the machine by pressing the control knob. The machine will start by weighing the load with an extraction.
-
Page 17: Camping
User manual 4.3.5 Camping Select program by turning the control knob. Example of programs NORMAL COLOUR Different temperatures can be selected. 40°C - 60°C. NORMAL WHITE Different temperatures can be selected. 40°C - 60°C. Start the machine by pressing the control knob. The machine will start by weighing the load with an extraction. -
Page 18: Coin Operated Machines
User manual 4.3.6 Coin operated machines Select program by turning the control knob. It is also possible to select options. Note! Some programs do not allow options. Example of programs Options COLD HEAVY SOIL WARM EXTRA RINSE Insert correct amount of coins to start the machine. (On some machines you also need to press the control knob to start the machine). -
Page 19: Additional Functions
User manual 4.4 Additional functions There is a menu with additional functions available for selection after start. When pressing the control knob / start but- ton (on machines without control knob) the menu will appear on the display. Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob / start button to activate. -
Page 20: When Program Has Ended
User manual Auto restarts Select AUTO RESTARTS and activate. Set the number of automatic restarts that the machine will perform of the selected program. Press the control knob / start button to confirm the settings. 4.5 When program has ended Leave the door open when ready. -
Page 21: Timer
User manual 5 Timer The timer is used to start a part of the program (for example the last rinse of the udder cloth program) after pause on a pre-set time. The time can be set for all days or for selected days. To program the timer you need to activate the machines service mode. -
Page 22: Error Codes
User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 11:1 NO WATER Water level acknowledgement not reached in time. -
Page 23: Maintenance
User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 24: Drain
User manual 7.5 Drain At regular basis, check the drain connection, joints in the drain pipe etc and remove any lint and dust. Clean with for example a small brush. When remounting, make sure the connections are tight. fig.6998A Note! Contact qualified service personnel to perform maintenance on the internal drain and hoses once a year. -
Page 25: Cleaning The Mop Elements
User manual 7.7 Cleaning the mop elements (Only valid for mop machines). At regular basis, check the mop elements and clean if necessary. In the inner drum, there is one or two core covers to the heating elements depending on the size of the machine. The front cover is located directly above the drain and the other is in front of the element retainer. -
Page 26: Disposal Information
User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 28 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
