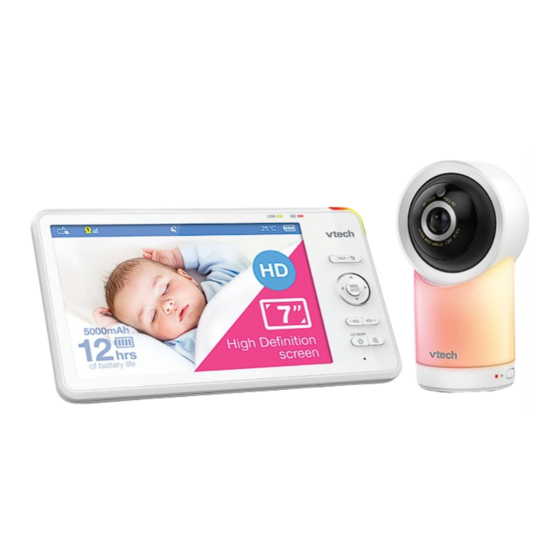

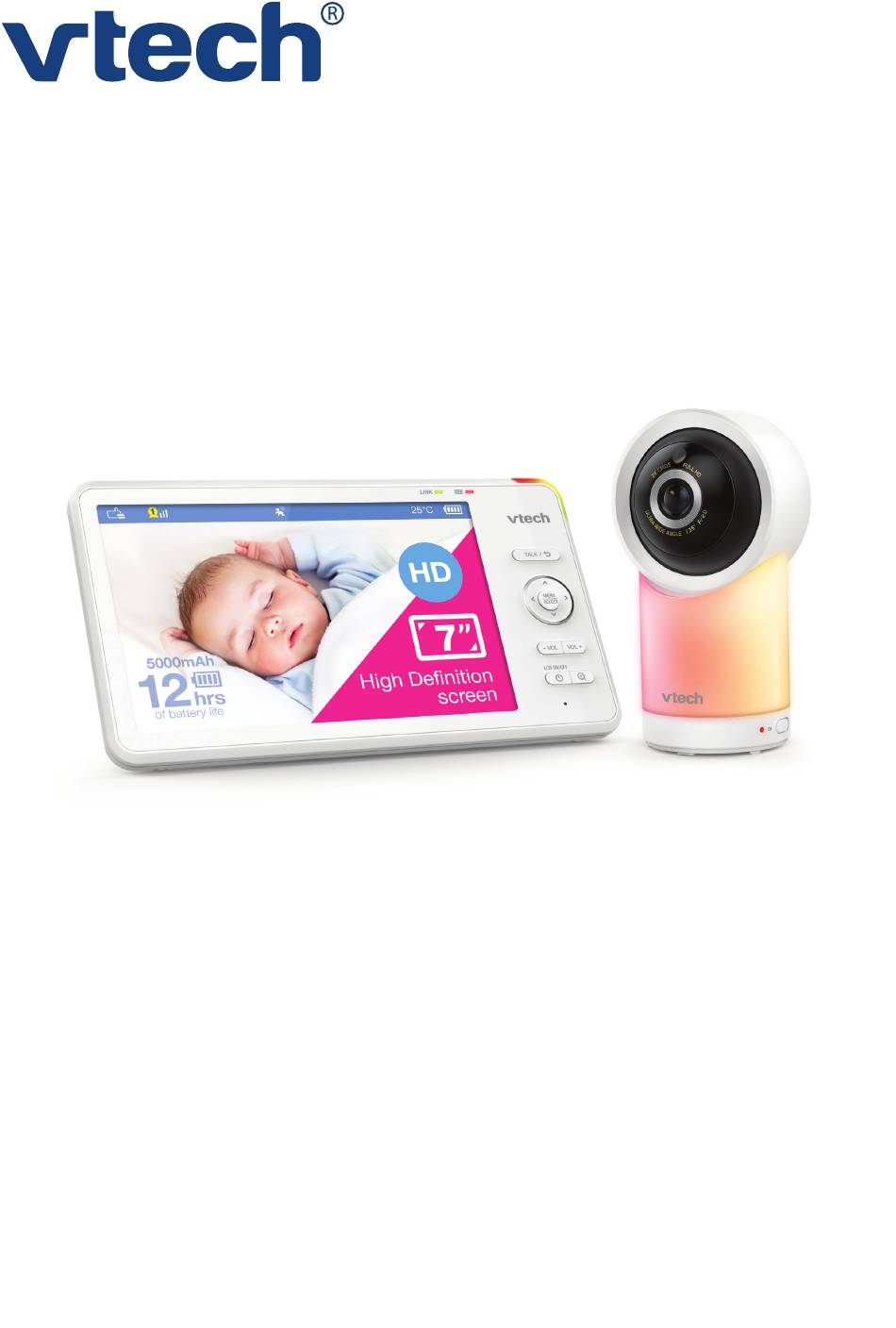

- Page 1 RM7766HD RM7766HD-2 7” Smart Wi-Fi 1080p Pan & Tilt Monitor User Guide This guide contains important information. Please keep it for future reference.
-
Page 2: Table Of Contents
Turn on/off the Parent Unit Screen ..................24 Advanced Operation �������������������������������������������������������������������������������������������25 Download App for Mobile Access ..................25 Set up Wi-Fi Connection ......................26 Monitoring Modes (RM7766HD-2 only) .................27 Night Light ..........................27 Melodies and Soothing Sounds .....................29 Sound, Motion, Temperature Alerts ..................30 Parent Unit Settings .......................34 Baby Unit Settings .........................35... -
Page 3: Important Safety Instructions
Power adapters information: reassembling can cause electric shock when the Baby Unit Output: 5V DC 1000mA product is subsequently used. VTech Telecommunications Ltd. Model: VT05EAU05100 21. You should test the sound reception every time you Parent Unit Output: 5V DC 2A turn on the units or move one of the components. - Page 4 (more than 3 ft (0.9m) away). Do not Electromagnetic fields (EMF) remove this tag. This VTech product complies with all standards regarding • Never place the camera unit(s) inside the baby’s electromagnetic fields (EMF). If handled properly and crib or playpen.
-
Page 5: Setup
Parent Unit Wall Mount Bracket Baby Unit Parent Unit Adapter Baby Unit Adapter Quick Start Guide 1 set for RM7766HD Learn to set up your units and have all detailed instructions on using your audio 2 sets for RM7766HD-2 baby monitor. -
Page 6: Overview
Overview Baby Unit... - Page 7 Light Sensor Camera Lens Infrared LEDs • Allow you to see clearly in a dark environment. Microphone Night Light Night Light Control Key • Go to Night Light section to learn more. LED Indicator • Red is steadily on when the baby unit is connecting to the parent unit in direct mode. •...
- Page 8 Parent Unit...
- Page 9 LINK LED Light • On when the parent unit is linked to the baby unit. • Flashes when the link to the baby unit is lost. LED light • On when the parent unit is connected to AC power, and the battery is charging. •...
-
Page 10: Parent Unit Icons
Parent Unit Icons Main Menu Options Monitoring Mode (*For RM7766HD-2 only) • View baby units in Single mode. • View baby units in Patrol mode. • View baby units in Split screen. Night Light • Turn on or turn off night light. - Page 11 Baby unit 1 and 2 are being viewed in Patrol mode (*For RM7766HD-2 only). Baby unit 1 and 2 are being viewed in Split mode (*For RM7766HD-2 only). Night vision is turned on. Motion detection alert is turned on.
- Page 12 Night light is turned on. Auto night light brightness is activated. Temperature alert is turned on. Parent unit is muted. ) Temperature detected is below setting. ( ) Temperature detected is within setting range. ( ) Temperature detected is above setting. Battery level indicator Alert Icons Displays when motion that exceed the set sensitivity level is...
-
Page 13: How The System Works
How the System Works? For better security and more stable connectivity, this baby monitor requires connecting to a Wi-Fi network and operating in Router mode connection. Direct Mode Your baby monitor parent unit and baby unit connect to each other in Direct mode by default, which allows you to immediately stream video out of the box. - Page 14 Router Mode You are required to set up your monitor in Router mode to enjoy live video streaming via your parent unit with an enhanced connection. Router mode is the recommended mode for stable connectivity. Router mode uses your home Wi-Fi network to connect your video monitor. It supports live video streaming through the parent unit and smartphone app.
-
Page 15: Protect Your Privacy And Online Security
Protect Your Privacy and Online Security Protect Your Privacy and Online Security VTech cares about your privacy and peace of mind. That’s why we’ve put together a list of industry-recommended best practices to help keep your wireless connection private and your devices protected when online. -
Page 16: Connect The Baby Monitor
Connect the Baby Monitor Connect the parent unit and baby unit to a power supply with the included power adapters. Notes: • The rechargeable battery in the parent unit is built-in. • Use only the power adapters supplied with this product. •... -
Page 17: Charge The Parent Unit Battery
Charge the Parent Unit Battery The parent unit runs on an internal rechargeable battery or AC power. To continuously monitor your baby, keep the parent unit connected to AC power. The parent unit turns on automatically after it connects to the power socket for the first time using, and its battery will charge at the same time. -
Page 18: Basic Operation
Basic Operation After powering up your baby monitor, the parent unit streams live video in direct mode. We recommend you follow the instructions on screen to set up home Wi-Fi network with your monitor for functionality enhancements and mobile access. See Download App for Mobile Access on page 26 and Set up Wi-Fi Connection on page 27. - Page 19 2� Press Power to turn on the parent unit, the welcome screen appears and the LINK LED flashes. You can press and hold Power to turn it off after using. 3� Once your baby unit and parent unit are powered on, the parent unit and baby unit will pair each other automatically.
-
Page 20: Use The Menu
Use the Menu Press MENU on the parent unit to enter the main menu, choose a menu item, or save a setting. You can use the parent unit menu for advanced settings or operations, such as to play or stop the baby unit lullaby, or adjust the baby unit sound sensitivity. -
Page 21: Test The Sound Level And Position The Baby Monitor
Test the Sound Level and Position the Baby Monitor Testing the Sound Level of the Baby Monitor You may test your baby monitor before initial use, and at regular times thereafter. Note: This baby monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such. - Page 22 Positioning the Baby Monitor Caution: Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. Place the baby unit more than 3 feet (1m) away from your baby. Notes: •...
-
Page 23: Zoom, Pan And Tilt The Camera
Zoom, Pan and Tilt the Camera How to pan and tilt the camera: • Press on the parent unit to move the camera left- ward; or press and hold to move the camera left- ward continuously. • Press on the parent unit to move the camera right- ward;... -
Page 24: Talk To Your Baby Via The Baby Unit
Talk to Your Baby via the Baby Unit 1� Press and hold the TALK key. 2� When the icon displays on screen, speak to your parent unit. Your voice is transmitted to the baby unit. 3� When finished talking, release the TALK key to hear your baby again. Press and hold Turn on/off the Parent Unit Screen You can turn on or turn off the parent unit screen without powering off the unit. -
Page 25: Advanced Operation
Advanced Operation Download App for Mobile Access System requirements for mobile access: MyVTech Baby Pro mobile app Network Wi-Fi Wi-Fi router 2.4GHz 802.11 b/g/n Internet connection 1.5 Mbps @ 720p or 2.5 Mbps @1080p upload bandwidth per baby unit Download the free MyVTech Baby Pro mobile app and install it to a mobile device, then use your mobile device and the mobile app to monitor your areas remotely. -
Page 26: Set Up Wi-Fi Connection
After installing the mobile app, follow the instructions in the mobile app and parent unit to set up and pair your baby unit. In your mobile device: 1� Tap to run the mobile app in your mobile device, and then create a user account. -
Page 27: Monitoring Modes (Rm7766Hd-2 Only)
Monitoring Modes (RM7766HD-2 only) When more than one baby unit is paired to the parent unit, you can choose to view different baby units in three monitoring modes. Learn more about each below: Single Mode The screen displays images only from the selected baby unit in full screen. - Page 28 On the Parent Unit Turn on/off 1� Press MENU/SELECT. 2� Press to scroll to Night Light menu, then press MENU or to enter. 3� Choose On, then press MENU/SELECT to confirm. The night light will turn on, and appears on the screen. 4�...
-
Page 29: Melodies And Soothing Sounds
Melodies and Soothing Sounds There are 5 melodies and 5 soothing sounds in the baby monitor for you to comfort your baby with. Play the Melodies and Soothing Sounds 1� Press MENU/SELECT to enter the main menu. 2� Press to navigate, then press MENU/SELECT to enter Melodies &... -
Page 30: Sound, Motion, Temperature Alerts
Sound, Motion, Temperature Alerts Sound Detection You can turn on Sound Detection Alert and adjust the baby unit’s sound Sensitivity to only detect your desired level of sounds. When the baby unit detects sounds that exceed the chosen level, the parent unit screen turns on if it has been switched off or dimmed, and the baby unit transmits the detected sounds to the parent unit. - Page 31 Turn on/off Sound Detection Alert 1� Press MENU/SELECT to enter the main menu. 2� Press Alerts menu, press MENU/SELECT to repeatedly to choose enter Sound settings. press 3� Press repeatedly to go to Sound Detection Alert, to turn on/off. appears on the screen. Turn on/off Auto Wake-Up When Auto Wake-Up is turned on, the parent unit screen stays off to save power when the baby unit detects no sound.
- Page 32 Motion Detection You can turn on Motion Alert and adjust the baby unit’s Motion Sensitivity to only detect your desired level of motion. When the baby unit detects motions that exceed the chosen level, the parent unit screen turns on if it has been switched off or dimmed, and the baby unit displays the live video feed.
- Page 33 Temperature Alert Your baby unit can help you keep track of your baby’s room temperature in order to ensure that your baby stays in the comfort zone at all times. With temperature sensor, the relevant data will be shown on the status bar when you powered on your units.
-
Page 34: Parent Unit Settings
Parent Unit Settings Adjust LCD Brightness 1� Press MENU/SELECT to enter the main menu. 2� Press repeatedly to choose Parent Unit Settings menu. 3� Press repeatedly to select Brightness. ress 4� P to adjust (Level 1 - Lowest to Level 5 - Highest). Adjust Low Battery Alert Tone and No Link Alert Tone 1�... -
Page 35: Baby Unit Settings
Baby Unit Settings Night Vision The baby unit has infrared LEDs that allow you to see your baby clearly at night or in a dark room. When the baby unit being viewed detects low light levels, the infrared LEDs switch on automatically. When the night vision mode is activated, the images from the baby unit appear in black and white on the screen, and also appears. -
Page 36: Software And Firmware Update
Software and Firmware Update To ensure that your baby monitor is always at its best performance, the parent unit will prompt you to update its software and the baby unit firmware when there are new versions available. You can check if your device is running on the latest software or to update your device software manually: 1�... -
Page 37: Test The Best Location For The Baby Unit
On Baby Unit 1� Press and hold PAIR key until you hear a beep sound. 2� Release the PAIR key, and then press the PAIR key again five times until you hear a beep sound again. 3� The baby unit will sound another beep when the reset completes. Then, the baby unit will reboot. -
Page 38: Additional Information
Additional Information Wall Mount (Optional) Notes: • Check for reception strength and camera angle of the baby unit before drilling the holes. • The types of screws and plugs you need depend on the composition of the wall. You may need to purchase the screws and plugs separately to mount your baby units. - Page 39 3� Align the wall mount bracket and screws with the holes in the wall as shown. Tighten the screw in the middle hole first, so that the wall mount bracket position is fixed. You can tighten the other screw in the top hole. Insert the screws into the holes and tighten the screws until only 1/4 inch of the screws are exposed.
- Page 40 Place the baby unit on the wall mount bracket, and then slide it forward until it locks into place. Align the holes on the wall mount bracket with the screws on the wall, and slide the wall mount bracket down until it locks into place. 5.
-
Page 41: Frequently Asked Questions
Frequently Asked Questions Below are the questions most frequently asked about the baby monitor. Can I turn the parent unit dis- | LCD ON/OFF on the parent unit to turn off Yes, press play screen off but keep hear- the screen. The parent unit display will also dim automatically ing sounds from the baby unit? after being inactive for some time. -
Page 42: General Product Care
General Product Care To keep this product working well and looking good, follow these guidelines: • Avoid putting it near heating appliances and devices that generate electrical noise (for example, motors or fluorescent lamps). • DO NOT expose it to direct sunlight or moisture. •... -
Page 43: Customer Service And Product Warranty
24 months from date of purchase. VTech does not warrant that the product will be free from defects if defects are caused by an accident, misuse, abuse, improper installation or operation, vermin infestations, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by VTech;... -
Page 44: Disposal Of Batteries And Product
Disposal of Batteries and Product The crossed-out wheelie bin symbols on products and batteries, or on their respective packaging, indicates they must not be disposed of in domestic waste as they contain substances that can be damaging to the environment and human health. The chemical symbols Hg, Cd or Pb, where marked, indicate that the battery contains more than the specified value of mercury (Hg), cadmium (Cd) or lead (Pn) set out in Battery Directive (2006/66/EC).
