2.22. Indicator State at the Time of Intended Control Output (Pulse)
When the intended control output (pulse) function is assigned to the function key, pressing this key turns ON
the preset control output. It is turned OFF when this key is pressed again.
When an intended control output (pulse) function has been assigned to a function key, the 2 indicators to the
left of the key indicate its selection and control statuses.
Note
Operation may become invalid even if you press the function key when the Control status indicator is lighting.
This is such a case when the Control output pattern is being activated by other Event.
Wait until the Control status indicator goes off, then press the function key again.
Function key operation is always active as long as the Control status indicator is unlit.

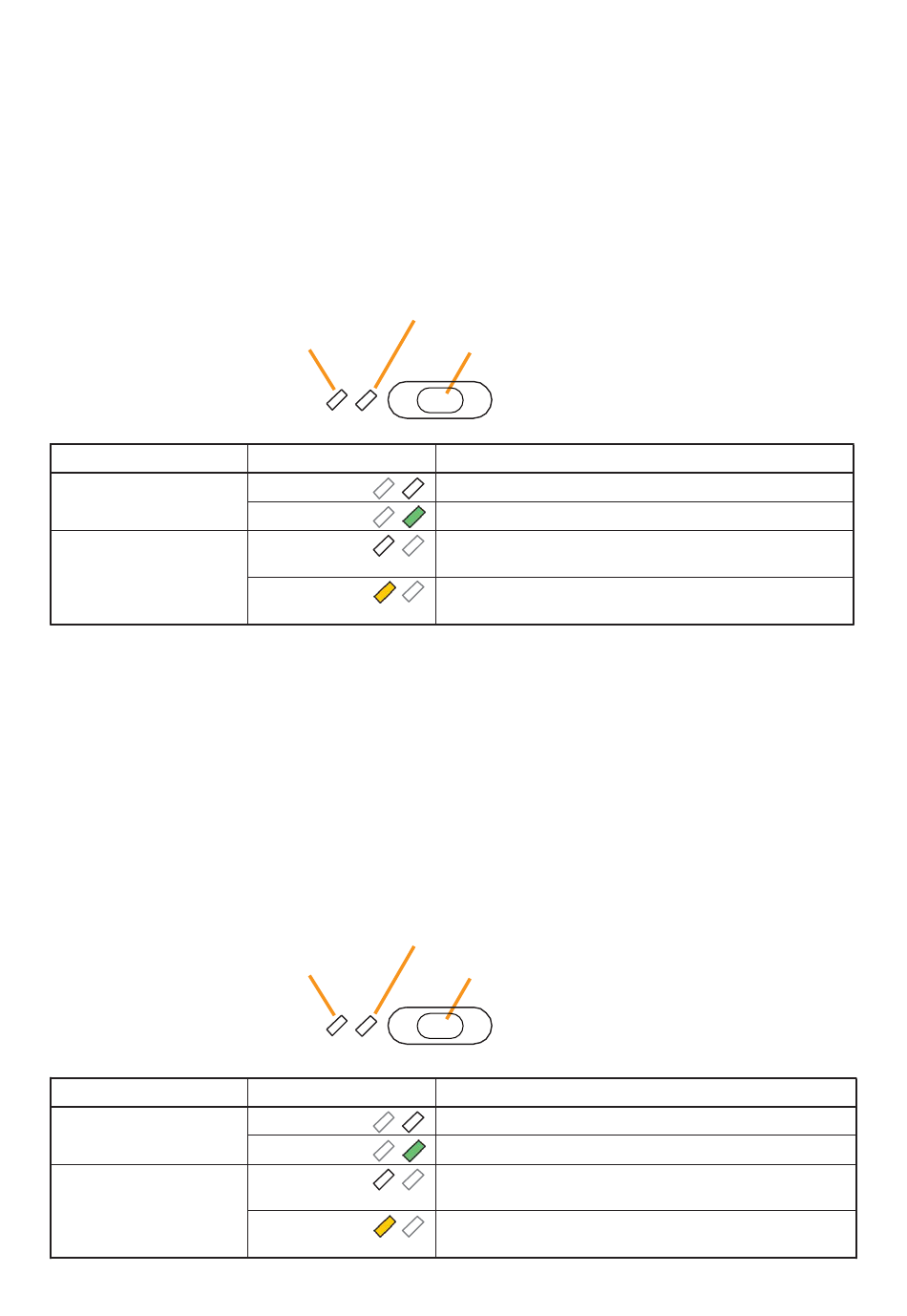

Control status indicator
Indicator meanings are as follows:
Indicator
Selection indicator
Control status indicator
2.23. Indicator State at the Time of Intended Control Output (Level)
When the intended control output (level) function is assigned to the function key, the preset control output is
turned ON while this key is held down. It is turned OFF when this key is released.
When an intended control output (level) function has been assigned to a function key, the 2 indicators to the left
of the key indicate its selection and control statuses.
Note
Operation may become invalid even if you press the function key when the Control status indicator is lighting.
This is such a case when the Control output pattern is being activated by other Event.
Wait until the Control status indicator goes off, then press the function key again.
Function key operation is always active as long as the Control status indicator is unlit.
Control status indicator
Indicator meanings are as follows:
Indicator
Selection indicator
Control status indicator
Chapter 2
Selection indicator
Status
Unlit
Lights green
Unlit
Lights yellow
Selection indicator
Status
Unlit
Lights green
Unlit
Lights yellow
INDICATOR STATUS OF REMOTE MICROPHONES
Function key (Intended control output [pulse] key)
Meaning
When the function key is not pressed
When the function key is pressed
When the Control output pattern assigned to this function
key is not activated
When the Control output pattern assigned to this function
key is being activated
Function key (Intended control output [level] key)
When the function key is not pressed
When the function key is pressed (as long as it is pressed)
When the Control output pattern assigned to this function key
is not activated
When the Control output pattern assigned to this function key
is being activated
Meaning
