Toa PC-1860 Installation Manual

CEILING MOUNT SPEAKER
Thank you for purchasing TOA's Ceiling Mount Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• Install the unit only in a location that can structurally
support the weight of the unit and the mounting bracket.
Doing otherwise may result in the unit falling down and
causing personal injury and/or property damage.
• Do not use other methods than specified to mount the
bracket. Extreme force is applied to the unit and the unit
could fall off, possibly resulting in personal injuries.

2. GENERAL DESCRIPTION

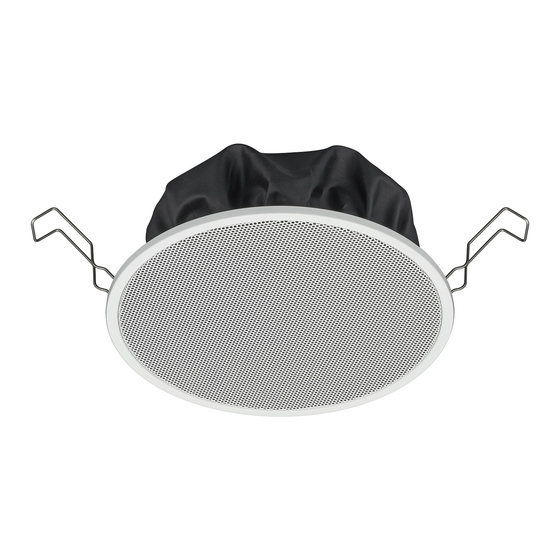

Integrated with a speaker unit and panel, the PC-1860 and PC-2360 Ceiling Mount Speakers are of all metallic construction
and ideal for use in a voice alarm system.
They feature spring clamp mechanism for easy speaker mounting to the ceiling.
The input impedance can be easily changed by changing the tap position of the transformer.
The push-in type input terminal block makes cable connections easy and allows bridge wiring.

3. SPECIFICATIONS

Model No.
Rated Input
Rated Impedance
Sensitivity
Frequency Response
Speaker Component
Operating Temperature
Dimensions for Fixing Hole Mounting hole:
Speaker Mounting Method
Applicable Cable
Connection
Finish
Dimensions
Weight
Accessory
Note: The design and specifications are subject to change without notice for improvement.
PC-1860
100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
94 dB (1 W, 1 m) (500 Hz – 5 kHz, pink noise)
80 Hz – 20 kHz (peak –20 dB)
12 cm (5") cone-type
ø150 ±3 mm (ø5.91" ±0.12")
Ceiling thickness: 5 – 25 mm (0.2" – 0.98")
Push wire connection (Bridging terminal-2 branch type)
Frame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
ø180 x 70 (d) mm (ø7.09" x 2.76")
560 g (1.23 lb)
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Avoid touching the unit's sharp metal edge to prevent
injury.
• To avoid electric shocks, be sure to switch off the
amplifier's power when connecting speakers.
• Do not operate the unit for an extended period of time
with the sound distorting. This is an indication of a
malfunction, which in turn can cause heat to generate
and result in a fire.
6 W (100 V line), 3 W (70 V line)
–10 to +50 °C (14 to 122 °F)
Mounting hole:
Ceiling thickness: 5 – 25 mm (0.2" – 0.98")
Spring clamp
Solid wire: 0.5 – 3 mm² (AWG 20 – 12)
Paper pattern ................................... 1

INSTALLATION MANUAL

PC-1860
PC-2360
PC-2360
60 Hz – 20 kHz (peak –20 dB)
16 cm (6") cone-type
ø200 ±3 mm (ø7.87" ±0.12")
ø230 x 76 (d) mm (ø9.06" x 2.99")
740 g (1.63 lb)
