Toa F-505 Specification Sheet

2-WAY BASS REFLEX SPEAKER

DESCRIPTION

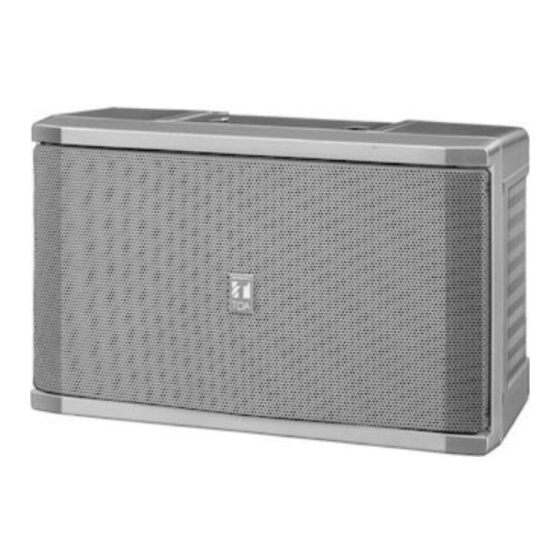

The TOA F-505W and F-505G are 2-way speaker systems
with bass-reflex enclosures, housing a high-power 20cm
(7.9") woofer, and a constant directivity (CD) horn with a
high-efficiency driver. The CD horn assures a uniform,
well-controlled disperson pattern of 60° horizontal by 40°
vertical within its specified frequency range. An extremely
durable low-foam polypropylene resin enclosure provides
superb acoustic characteristics. The F-505W and F-505G
are designed for optimal efficiency, wide frequency
response and lasting durability. And because of their
convenient mobility and ease of installation, the F-505W
and F-505G are well suited to a variety of applications.
They are ideal for use as sound reinforcement equipment,
and in live performance and recorded music systems
where emphasis is placed on accurate sound
reproduction and durability of equipment.
TOA SPEAKER SYSTEM
F-505W/F-505G
F-505W

FEATURES

1. Extended frequency response provides smooth sound
2. High, 240 watts continuous program material power
3. 2-way bass-reflex speaker system.
4. Constant directivity horn with extremely well-controlled
5. Highly efficient low-foam polypropylene resin compound
6. Built-in overload protection circuitry.
7. Input panel with two push-in terminals and 1/4" phone
8. 1/4" phone jacks can be converted into XLR connectors.
9. Optional mounting brackets provide ease of installation.
at all ranges.
capacity.
dispersion coverage pattern.
enclosure with superb acoustic characteristics and
durability.
jacks internally connected in parallel.
F-505G
