Specifications - Ego Power+ CS1610E Manual

V
V olt
Hz
Hertz
min
Minutes
... /min
P er Minute

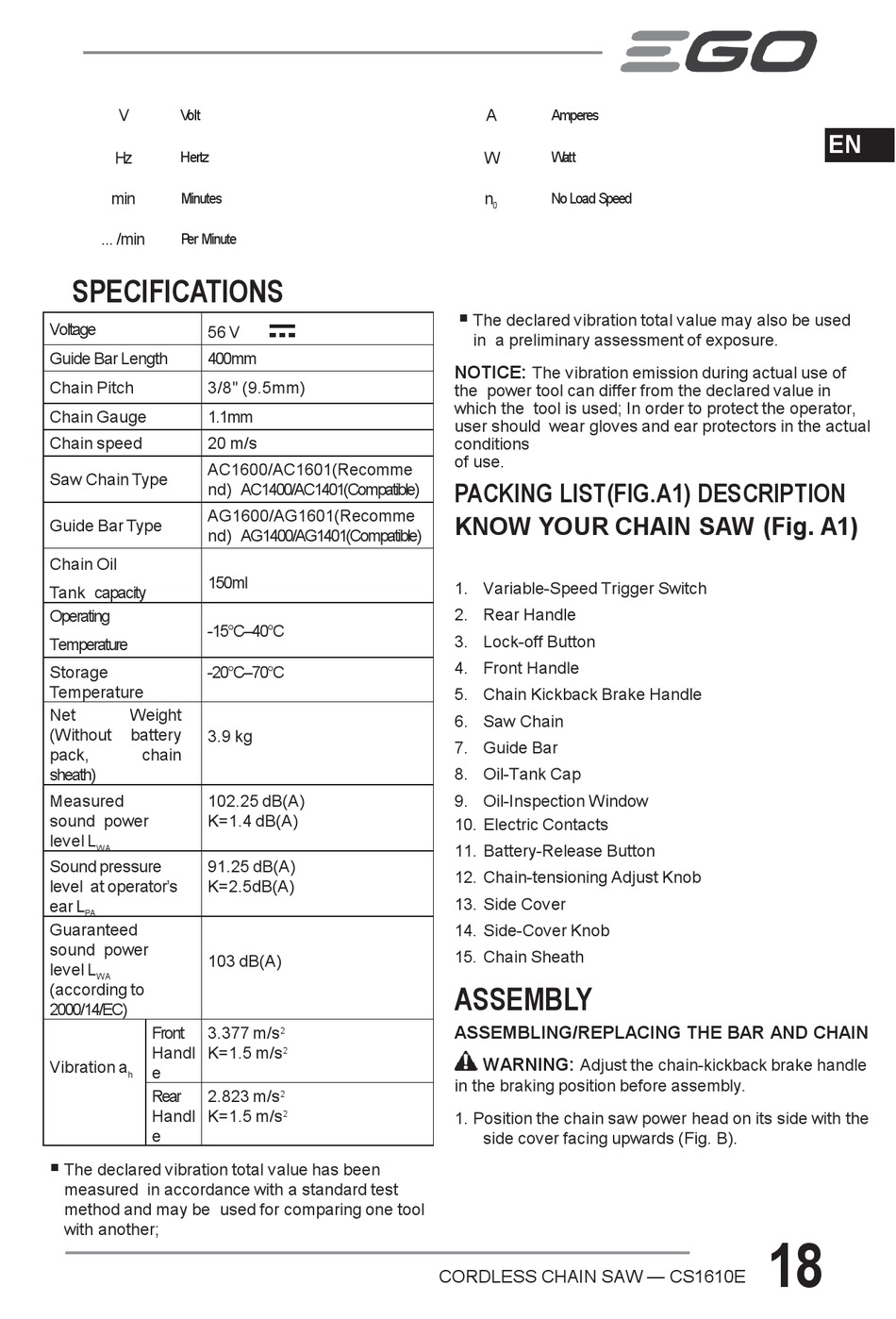

SPECIFICATIONS

Voltage
56 V
Guide Bar Length 400mm
Chain Pitch
3/8" (9.5mm)
Chain Gauge 1.1mm
Chain speed 20 m/s
AC1600/AC1601(Recomme
Saw Chain Type
nd) AC1400/AC1401(Compatible)
AG1600/AG1601(Recomme
Guide Bar Type
nd) AG1400/AG1401(Compatible)
Chain Oil
150ml
Tank capacity
Operating
-15°C–40°C
Temperature
Storage -20°C–70°C
Temperature
Net Weight
(Without battery
3.9 kg
pack, chain
sheath)
Measured 102.25 dB(A)
sound power K=1.4 dB(A)
level L
WA
Sound pressure 91.25 dB(A)
level at operator's K=2.5dB(A)
ear L
PA
Guaranteed
sound power
103 dB(A)
level L
WA
(according to
2000/14/EC)
Front 3.377 m/s
Handl K=1.5 m/s
Vibration a
e
h
Rear 2.823 m/s
Handl K=1.5 m/s
◾
e
The declared vibration total value has been
measured in accordance with a standard test
method and may be used for comparing one tool
with another;
2
2
2
2
CORDLESS CHAIN SAW — CS1610E
A
Amperes
W
Watt
n
NoLoad Speed
0
◾
The declared vibration total value may also be used
in a preliminary assessment of exposure.
NOTICE:
The vibration emission during actual use of
the power tool can differ from the declared value in
which the tool is used; In order to protect the operator,
user should wear gloves and ear protectors in the actual
conditions
of use.
PACKING LIST(FIG.A1) DESCRIPTION
KNOW YOUR CHAIN SAW (Fig. A1)
1. Variable-Speed Trigger Switch
2. Rear Handle
3. Lock-off Button
4. Front Handle
5. Chain Kickback Brake Handle
6. Saw Chain
7. Guide Bar
8. Oil-Tank Cap
9. Oil-Inspection Window
10. Electric Contacts
11. Battery-Release Button
12. Chain-tensioning Adjust Knob
13. Side Cover
14. Side-Cover Knob
15. Chain Sheath
ASSEMBLY
ASSEMBLING/REPLACING THE BAR AND CHAIN
WARNING:
Adjust the chain-kickback brake handle
in the braking position before assembly.
1. Position the chain saw power head on its side with the
side cover facing upwards (Fig. B).
EN
18
