The 4-pin Molex

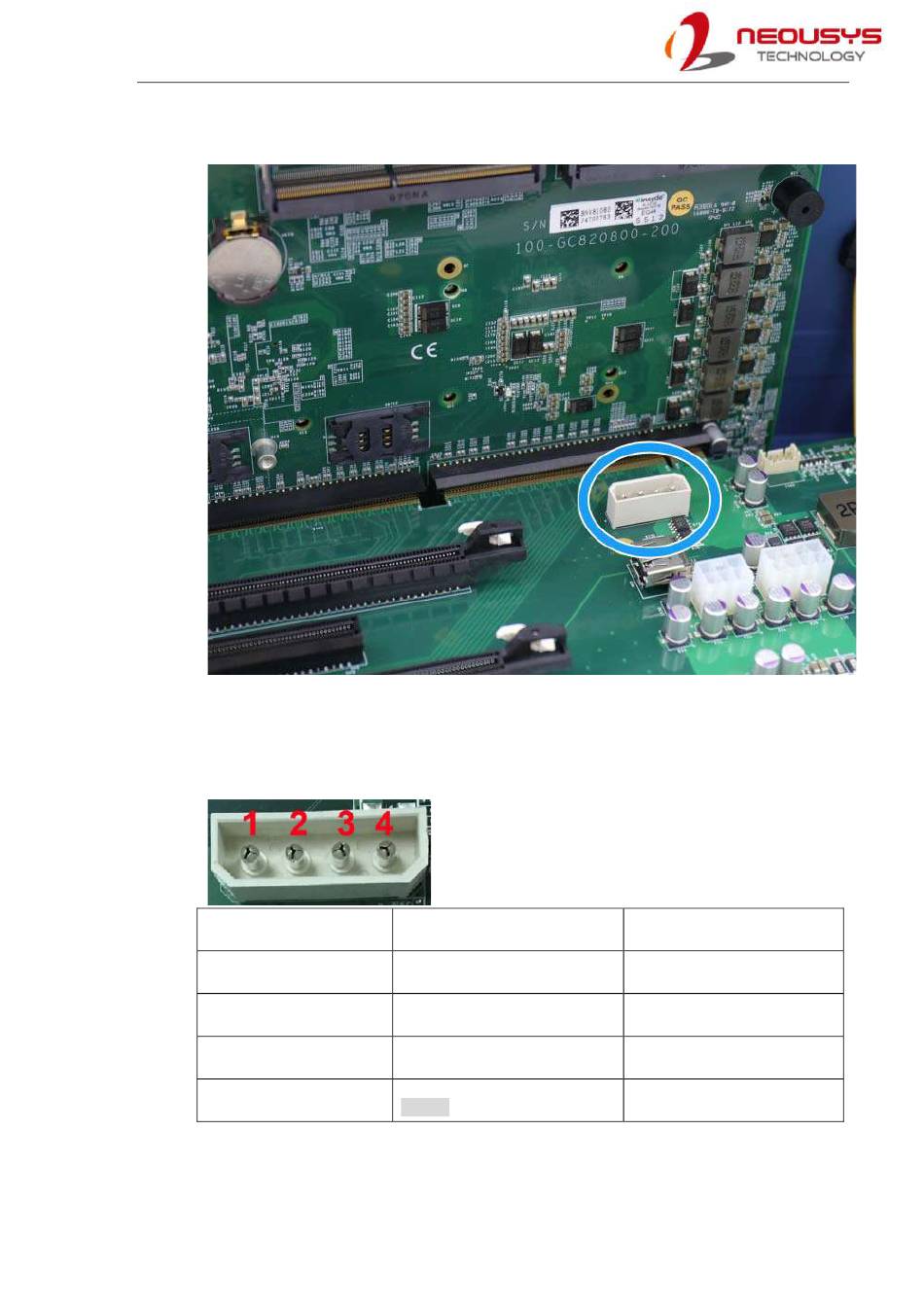

The 4-pin molex connector can be found on the extension board. It can provide additional
power supply for power hungry add-on cards such as PCIe PoE cards. The pin definition are
as follows:
Pin number
1
2
3
4
Nuvo-8108GC
Color
Red
Black
Black
Yellow
45
Definition
+12V
Gnd
Gnd
+5V
