Forest garden OPA68DD Quick Start Manual

8' x 6' Overlap Apex Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE;
READ CAREFULLY
This buildings is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises This will not need additional .
treatment.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
- Please keep all plastic bags and small parts away from
children
- The roof of this building is not a load bearing structure.
- This product must be built on a solid level base.
0333 7777 089
Technical Helpline: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in anyway (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.

Fixing Pack (OPA68DDFP)

Not to Scale
This fixing pack is used for several products.
There may be additional fixings.
Hasp & Turn Button
Staple Qty 3
Flush Hinge
Qty 4
Ridge Plate
Z' bracket Qty 8
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SCISSORS
POZI DRIVE FLAT HEAD
TAPE MEASURE HAMMER
SCREWDRIVER SCREWDRIVER
Important :
Assembly of this
shed requires a
minimum of two
MUST PRE DRILL
adults.

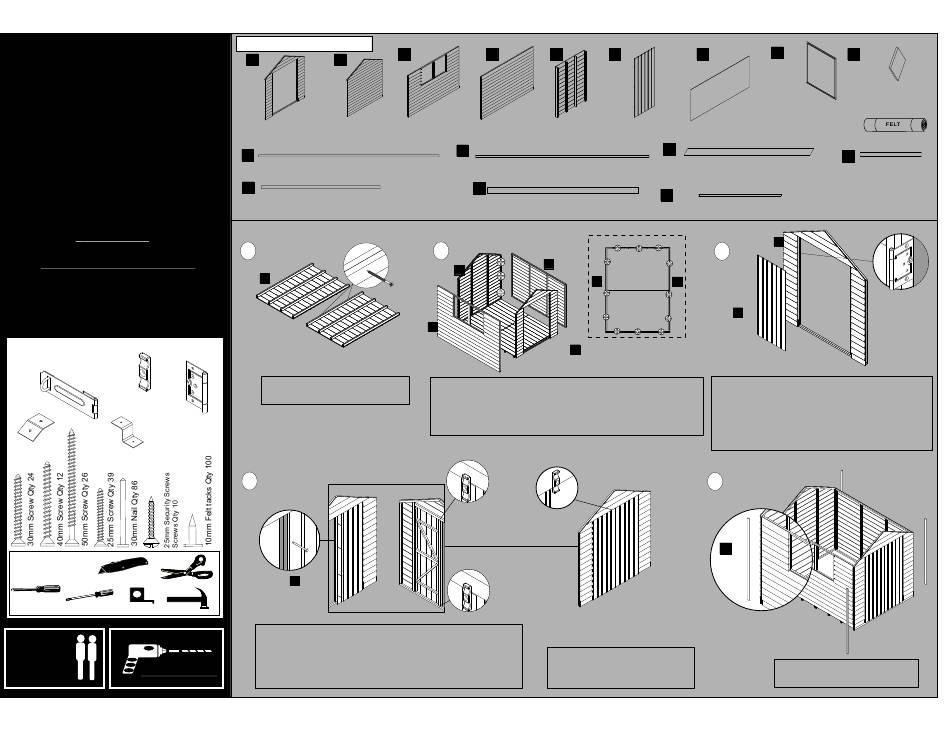

OPA68DD PARTS LIST

A B
OPA6DDE OPA6PE
DOOR END PLAIN END
J H
37282365PT
2365mm BATTEN QTY 2
N
44161570PT
1570mm CORNER STRIP QTY 4
1
E
Fix both of the floors together using 2x50mm
screws screwing through the floor bearers as
shown.
4
O
Place the 1630mm batten against the inside of the door so that it is tight against
the battens on the reverse and leaves a small gap at the top and bottom. Fix the
batten in place with 4 x 30mm Nails hammering through the door into the batten.
(make sure the batten is supported from the other side when fixing)
Fix a turn button to the top and bottom of the batten so that the door will be held
-
closed when fixed. Use a 30mm screw for each turn button.
C D E
OPA8WS OPA8PS BRDFL46
WINDOW PANEL PLAIN PANEL FLOOR QTY 2
K
37282275PT
2275mm BATTEN QTY 4
O
45281630PT
45 x 1630mm BATTEN QTY 1
2
D
B
C
A
Place the panels on top of the completed floor. Make sure that all the panels are
tight and flush before fixing them to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are square and fix
them to the floor using 3x50mm screws for each panel. Make sure the screws are
positioned so that they locate into the bearers underneath.
Place and fix a turn button above the
opening door. Make sure that the button is
fixed to the door end and will hold the top of
the door shut.
H
F G
WINDOW QTY 2
236510708 The windows are packed
DDRPT
ROOF BOARD together tightly, separate
DOOR QTY 2
QTY 2 before assembly.
L
59121110PAII62PT
1110mm ANGLED BARGE BOARD QTY 4
P
84996
675mm PLASTIC STRIP QTY 4
Top View
3
C
D
F
Place the hinge against the inside of the door frame and position
the large section of the hinge so that it is flush with the inside of
the framing as shown and fix with 25mm screws.
Open the hinge and fix the smaller section to the door framing.
Again make sure that the hinge is flush and that the holes are
positioned so that the 25mm screws locate correctly into the
batten.
5
M N
I
FIN20010512PT
RPET700
FINIAL
QTY 1
FELT78BL QTY 1
M
45120675PPT
675mm STRIP QTY 1
A
Place the corner strips so that they cover
the joins between the panels. Fix each in
place using 4x30mm screws.
Issue 0118
