Forest garden 3' x 5' Value Shed Quick Start Manual

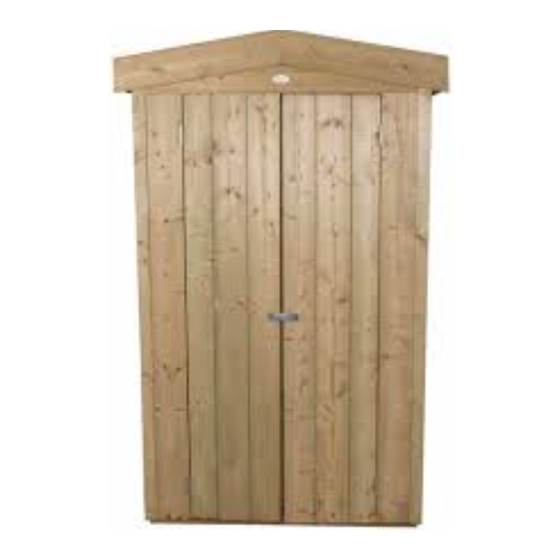

3' x 5' Value Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE;
READ CAREFULLY
Check all parts prior to assembly
This building is pre-treated with a factory base coat for
protection during storage and transit. We recommend that
you treat your new building as soon as possible after
assembly using a wood preservative treatment. Apply in
accordance with the manufacturers instructions.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Please keep all plastic bags and small parts away from
children
- This product must be built on a solid level base.
- The roof of this product is not a load bearing structure.
0333 321 3142
Technical Help line: 8.30 am to 5.00
pm Monday to Friday.
In line with your statutory rights, please check all parts
prior to assembly, as assembly of damaged parts may be
deemed to be acceptance and this may affect the
remedies you are entitled to. If the product is not
constructed in accordance with the instructions, or is
altered in anyway (e.g. painted), the manufacturer cannot
be held liable for any resulting damage.
Fixing Pack (VOL35FP)
Not to Scale
Tee Hinge
Qty 2
Turn Button
L' bracket
Qty 4
REQUIRED TOOLS :
(NOT SUPPLIED)
SPIRIT LEVEL
SHARP KNIFE
FOR ROOFING FELT
POZI DRIVE SCREWDRIVER
TAPE MEASURE
HAMMER
Important :
Assembly of this
shed requires a
minimum of two
MUST PRE DRILL
adults.

VOL35 PARTS LIST

A B C
VOL35DE VOL35PE
DOOR END PLAIN END
H
40121600DTR
CORNER STRIP 40x12x1600mm Qty 4
K
BATTEN 28x28x1540mm Qty 2
1
A A E
Place and secure two hinges to the door so that they line
up with the battens on the reverse using 4x30mm (black)
screws for each.
Place the door into the door end ensuring that it is square.
Fix the doors in place using 3x30mm (black) screws for the
other section of each hinge.
A I
3
Place the 1506mm batten so that it sits
on the framework at the apex of both
the plain end and door end as shown.
Fix this in place using 1 x 60mm screw
for each end. (Make sure you pre-drill).
D E
VOL35PS 5X3SHEDFL DR665X1590
PLAIN PANEL FLOOR
Qty 2
I
45281506PAR
BATTEN 45x28x1506mm Qty 1
28281540
2
Place the turn button
against the door end
approximately half way
A C
up. Make sure that it is
positioned in line with
the framing on the
reverse and close
enough that it will hold
the door shut when
turned.
Fix using a 30mm
(black) screw.
Place the panels on top of the floor. Make sure that all the panels are tight and flush before fixing them to
each other using 3x50mm screws.
When the panels are secured to each other, ensure that they are square before securing them to the floor.
Secure the door end to the floor using 1 x 50mm screws making sure it locates into the floor bearer. Fix the
plain sides to the floor using the L' brackets. Position these side ways and make sure they are in line with the
floor bearers underneath. Fix each in place using 4 x 25mm screws.
F G
15406108 9090012FINDTR
DOOR ROOF BOARD FINIAL
Qty 2 Qty 2
J
BARGE BOARD 590mm Qty 4
A B
A C
4
A H
Place the corner strips so that they
cover the joins between the panels. Fix
each in place using 3 x 25mm screws.
85052 QTY 1
40080590DTR
50mm screw
Issue 0114
