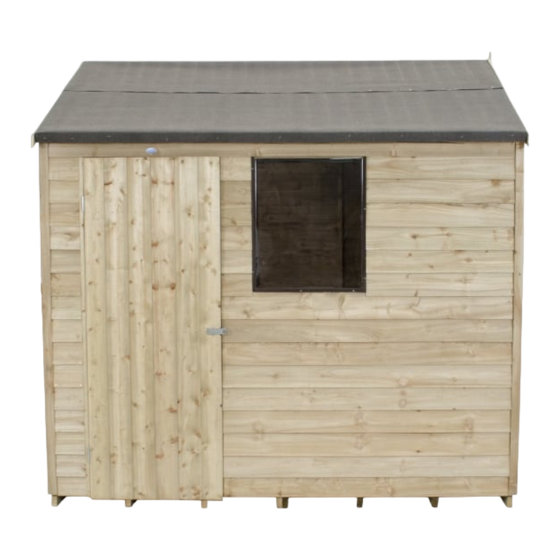

Forest garden OPR86 Quick Start Manual

8' x 6' Overlap Reverse Apex
Shed
IMPORTANT, RETAIN FOR FUTURE REFERENCE; READ
CAREFULLY
This building is pressure treated to ensure longevity of all
timber components and to protect against rot. This may leave
a colour difference on some parts that will even out as the
moisture content stabilises. This will not need additional
treatment.
- This product must be built on a solid level base.
- Please keep all plastic bags and small parts away from
children.
- The roof of this building is not a load bearing structure.
- Timber is a natural material. It will shrink and swell as a
result of varying moisture content.
- Due to the nature of the material the doors may need some
trimming for a neater fit.
0333 7777 089
Technical Helpline: 8.30 am and 5.00
pm Monday to Friday.
Please check all parts prior to assembly
Assembly of damaged parts may be deemed to be
acceptance and this may affect the remedies you are entitled
to.
If the product is not constructed in accordance with the
instructions, or is altered in anyway (e.g. painted), the
manufacturer cannot be held liable for any resulting damage.
Fixing Pack (OPA68FP)
Not to Scale
This fixing pack is used for several products.
There may be additional fixings.
Ridge Plate
Hasp &
Flush Hinge
Staple
Qty 2
Z' bracket Qty 8
REQUIRED TOOLS :
(NOT SUPPLIED)
SHARP KNIFE
SCISSORS
POZI DRIVE FLAT HEAD
TAPE MEASURE HAMMER
SCREWDRIVER SCREWDRIVER
Important :
Assembly of this
shed requires a
minimum of two
MUST PRE-DRILL
adults.
OPR86 PARTS LIST
A B
OPR6PE OPR8FP
PLAIN END QTY 2 FRONT PANEL
H I
37282365PT
2365mm BATTEN QTY 2
L
44161798PT
1798mm CORNER STRIP QTY 4
1
D
Fix both of the floors together using 2x50mm
screws, screwing through the floor bearers
as shown.
A
4
E
Place the hinge against the inside of the door frame and position the large section
of the hinge so that it is flush with the inside of the framing as shown. Fix with
25mm screws.
Open the hinge and fix the smaller section to the door framing. Again make sure
that the hinge is flush and that the holes are positioned so that the 25mm screws
locate correctly into the batten.
D E
C
SDRPT
OPA8BP BRDFL46 FLOOR
DOOR QTY 1
PLAIN SIDE QTY 2
J
37282275PT
2275mm BATTEN QTY 4
M
20121695PT
20 x 1695mm STRIP QTY 1
2
Place the panels on top of the completed floor. Make sure that all the panels are
tight and flush before fixing them to each other using 3x50mm screws.
When the panels are secured to each other, make sure they are square and fix
them to the floor using 3x50mm screws for each panel. Make sure that the screws
are positioned so that they locate into the bearers underneath.
F G
PCWIN1
WINDOW
236510708
ROOF BOARD QTY 2
K
59121110PAII62PT
1110mm ANGLED BARGE BOARD QTY 4
N
84996
675mm PLASTIC STRIP QTY 4
Top View
3
C D
M
Fix the 20 x 1695mm strip to the side
of the door frame so that it is tight
with the cladding and flush with the
frame. Use 3 x 30mm screws.
5
M L M L
Place the corner strips so that they cover the joins between
the panels. Fix each in place using 3x30mm screws.
H
FIN20010512PTR
QTY 2
FELT78BL QTY 1
A
Issue 0115
