Wiegand Readers - Johnson Controls tyco iSTAR Edge G2 Quick Start Manual

Hide thumbs Also See for tyco iSTAR Edge G2:
Table of Contents

Advertisement

Readers

Wiegand Readers

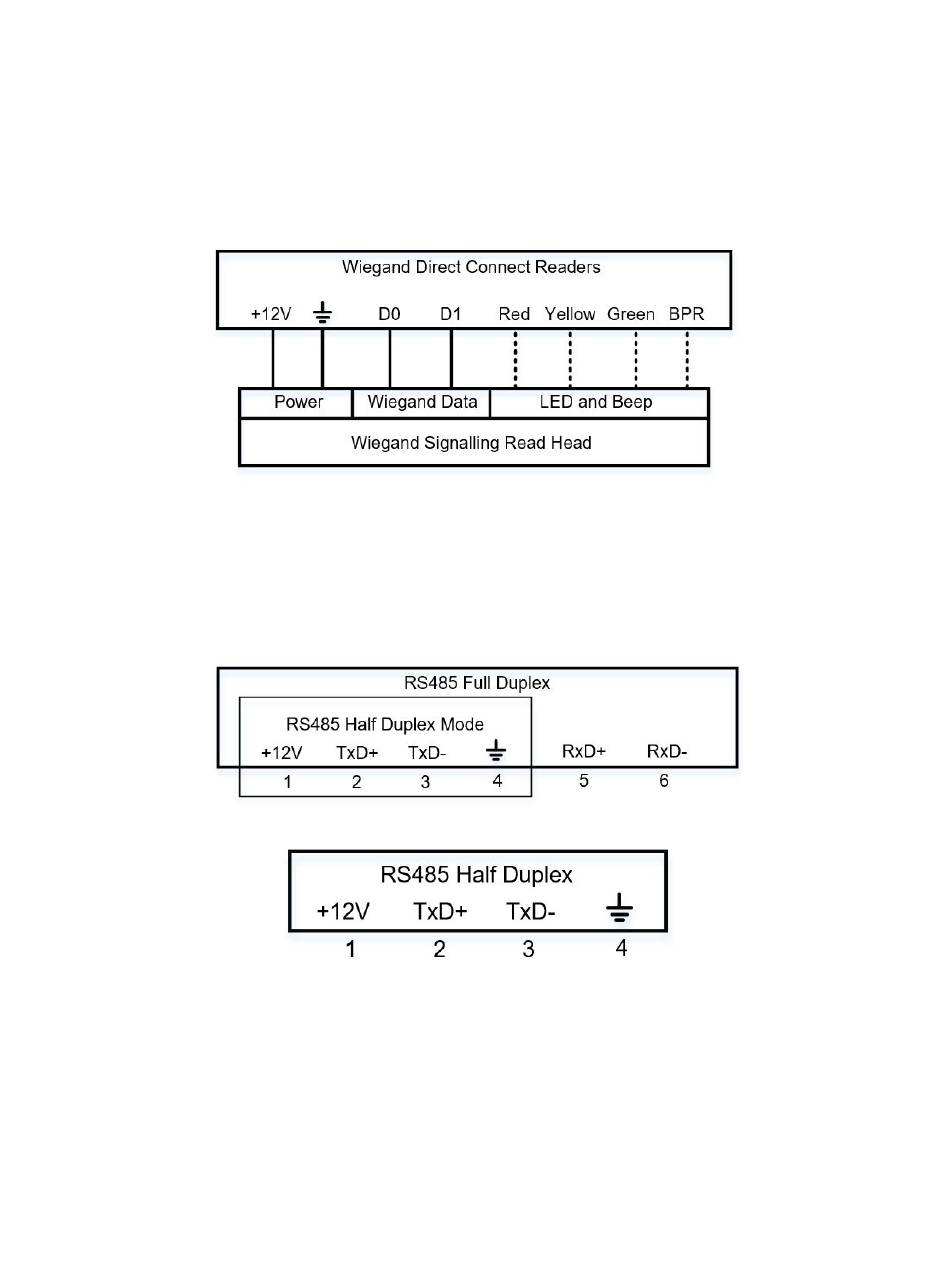

Figure 7
shows direct Wiegand signaling read head connections.
RS485 Readers
Figure 8
shows RS485 full duplex and half duplex reader connections.
Figure 7:  Wiegand Readers
Figure 8:  RS485 Readers
