Wet Wiring for a MagLock

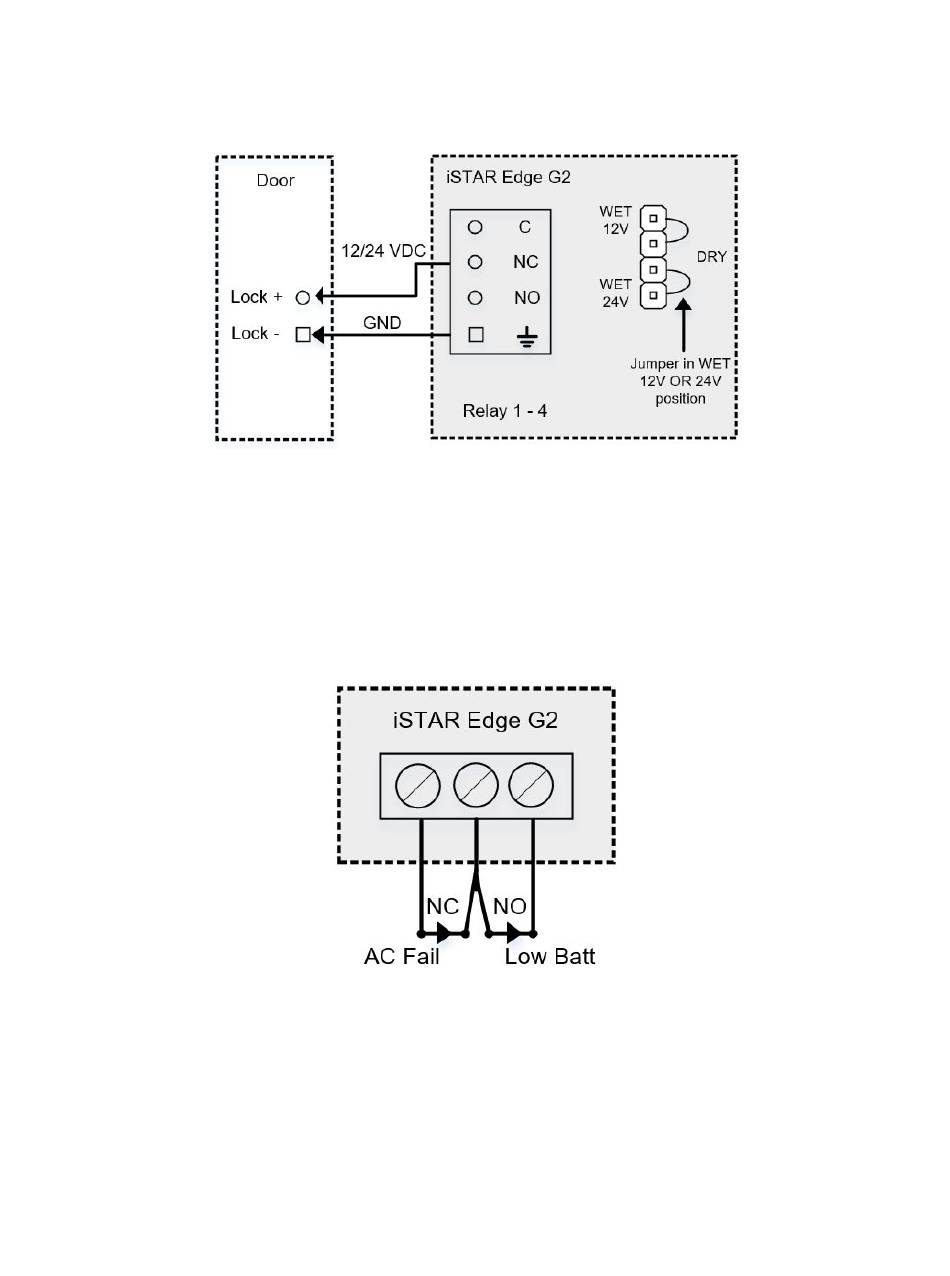

Figure 5 shows wet wiring for a magnetic lock.
■ GND and NC pins are used for energized magnetic locks.
■ The jumper is in the Wet position.
Wiring for AC Fail / Low Batteries
Figure 6 shows wiring for AC fail / low battery condition.
■ NC connections share a common GND connection.
Figure 5: Wet Relay Wiring for MagLock
Figure 6: AC Fail / Low Battery wiring
