Leviton CN200 Installation Instructions

C O L L E C T I O N B Y L E V I T O N
Dimming Controller w/IR
Receiver (Multi-Location)
Cat. No. CN200
24VDC
24mA, 0.6W
For use w/Dimming Power Pack and
other Leviton LCnet products
For more information go to
www.leviton.com/centura
INSTALLATION INSTRUCTIONS
DI-000-CN200-00A-Pilot1
LIMITED 2 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not
for the benefit of anyone else that this product at the time of
its sale by Leviton is free of defects in materials and
workmanship under normal and proper use for two years from
the purchase date. Leviton's only obligation is to correct such
defects by repair or replacement, at its option, if within such
two year period the product is returned prepaid, with proof of
purchase date, and a description of the problem to Leviton
Manufacturing Co., Inc., Att: Quality Assurance
Department, 59-25 Little Neck Parkway, Little Neck, New
York 11362-2591. This warranty excludes and there is
disclaimed liability for labor for removal of this product or
reinstallation. This warranty is void if this product is installed
improperly or in an improper environment, overloaded,
misused, opened, abused, or altered in any manner, or is
not used under normal operating conditions or not in
accordance with any labels or instructions. There are no other
or implied warranties of any kind, including merchantability
and fitness for a particular purpose, but if any implied warranty
is required by the applicable jurisdiction, the duration of any
such implied warranty, including merchantability and fitness
for a particular purpose, is limited to two years. Leviton is not
liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of
use of, any equipment, lost sales or profits or delay or failure
to perform this warranty obligation. The remedies provided
herein are the exclusive remedies under this warranty,
whether based on contract, tort or otherwise.
For Technical Assistance Call:
1-800-824-3005 (U.S.A. Only)
www.leviton.com
DI-000-CN200-00A-Pilot1
• Leviton's Decora ® Style design • Separate ON, MAX, BRIGHT, DIM and OFF buttons
• Enables settings of Power Pack • Color conversion available
• Low-Voltage for easy installation • Fits standard wall box
The Dimming Controller w/IR Receiver, Cat No. CN200, allows-easy-to use manual control of a Centura Lighting Control System. The Controller has separate ON, MAX, BRIGHT, DIM and
OFF buttons and the ability to communicate through an IR remote control to provide simple control of your Power Pack. The Controller allows manual control of your lights and programming
of the Power Pack from a standard wall box in an easy-to-reach location. In using the Controller, you may override the automatic operation of the Power Pack to give the most convenience to
your lighting needs.
The Controller has a user-friendly five-button face. The five buttons from top to bottom are ON, MAX, BRIGHT, DIM and OFF (refer to Figure 1). Each button will illuminate when pressed.
The Controller also has a removable face so that the colors can be changed.
The Controller is a component of the Centura Lighting System. It is used to provide local user control of the lights and allows programming of the Power Pack. The Controller provides the
ability to program the Minimum and Light Maintain light levels, and the Power Pack address for multiple Power Pack installations. The programming sequence is described under the "TO
OPERATE" section.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
WARNING: TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS.
WARNING:
IF YOU ARE NOT SURE ABOUT ANY PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICIAN.
CAUTION:
DISCONNECT POWER WHEN SERVICING FIXTURE OR CHANGING LAMPS.
CAUTION:
THE DIMMING CONTROLLER WITH IR OPERATES OFF OF LOW-VOLTAGE (24VDC), SO CARE MUST BE TAKEN WHEN REPLACING A LIGHT SWITCH. CONSULT LOCAL
BUILDING CODES AND REGULATIONS FOR PROPER LOW-VOLTAGE INSTALLATION.
TO INSTALL:
WARNING:
1. TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT POWER IS OFF BEFORE WIRING!
2. Remove existing wallplate and switch or dimmer, if applicable
CAUTION: IF APPLICABLE, ENSURE THAT CIRCUIT CONDUCTORS ARE PROPERLY CAPPED OFF WITH WIRE CONNECTORS AND REMOVED FROM WALL BOX.
3. Connect per appropriate WIRING DIAGRAM as follows: Insert each lead into appropriate Plug connector location by pushing firmly (refer to Wiring Diagram 1). If using stranded wire,
twist strands of each lead tightly (making sure that there are no stray strands) and push firmly into appropriate Plug connector location. Tighten the screws on the Plug connector making
sure that no bare conductor shows. Connect Plug connector to Jack on the back of the Controller.
4. If using a multi-Power Pack setup, using a small screwdriver adjust the address wheels (located on the back of the Controller) to the desired address. Otherwise, there is no adjustment
needed to the address.
5. Carefully position all wires to provide room in outlet box for Controller. Mount Controller into box with mounting screws supplied.
6. Replace wallplate as follows:
®
• Remove "A" tab when using standard Decora wallplate (refer to Figure 1).
• Leave "A" tabs intact when using Decora ® Screwless wallplate.
7. Restore power at circuit breaker or fuse. INSTALLATION IS COMPLETE.
The color of this device can be changed to suit your interior design requirements. Simply obtain a color conversion kit of the appropriate color from your Leviton distributor and proceed as
follows (please note that wallplate must be removed).
1. Select the color of the face you desire.
2. The frame has snaps on its sides. Using a small screwdriver, gently remove the frame from the strap (refer to Figure 2).
3. Take the new frame and position it properly to the strap. Orient the frame so that the ON button is the top button. Line up the plastic snaps with the square holes in the strap. Insert the
snaps on one side of the frame into the strap.
4. Firmly press sideways and down to slip the other snaps into place. The frame snaps in with an audible click. Ensure that all four snaps are secure. Replace Decora
conversion is complete.
ON: Press the ON button. The lights will fade on to previously set light level.
OFF: Press the OFF button. The lights will fade OFF.
DIM: Press and hold the DIM button to the desired level.
BRIGHTEN: Press and hold the BRIGHT button to the desired light level.
FULL BRIGHT: Press the MAX button at anytime - OR - Press the ON button twice. If the lights are already ON, press the ON button again.
COMMUNICATION LED: The communication LED will flash when the Controller transmits a message, and when it receives a valid message. It is not visible from the face of the device.
FEATURES
INTRODUCTION
DESCRIPTION
FCC COMPLIANCE STATEMENT
INSTALLATION INSTRUCTIONS
COLOR CONVERSION PROCEDURE
TO OPERATE

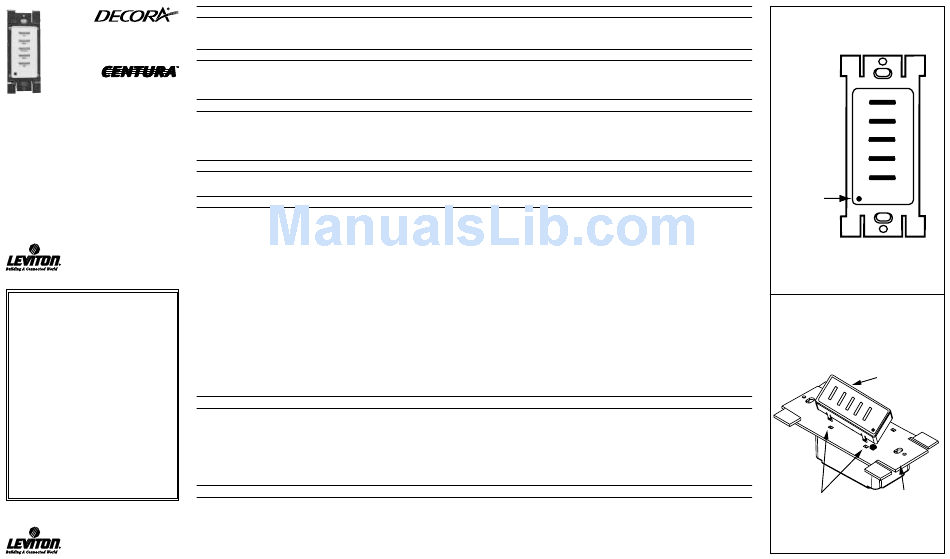

Figure 1 - Dimming Controller Functions
A
IR Receiver
A
Figure 2 - Color Conversion
® wallplate. The color
Snaps
Push in 2 Locations
A
ON
MAX
BRIGHT
DIM
OFF
A
Frame
Strap
