Summary of Contents for Leviton CN100

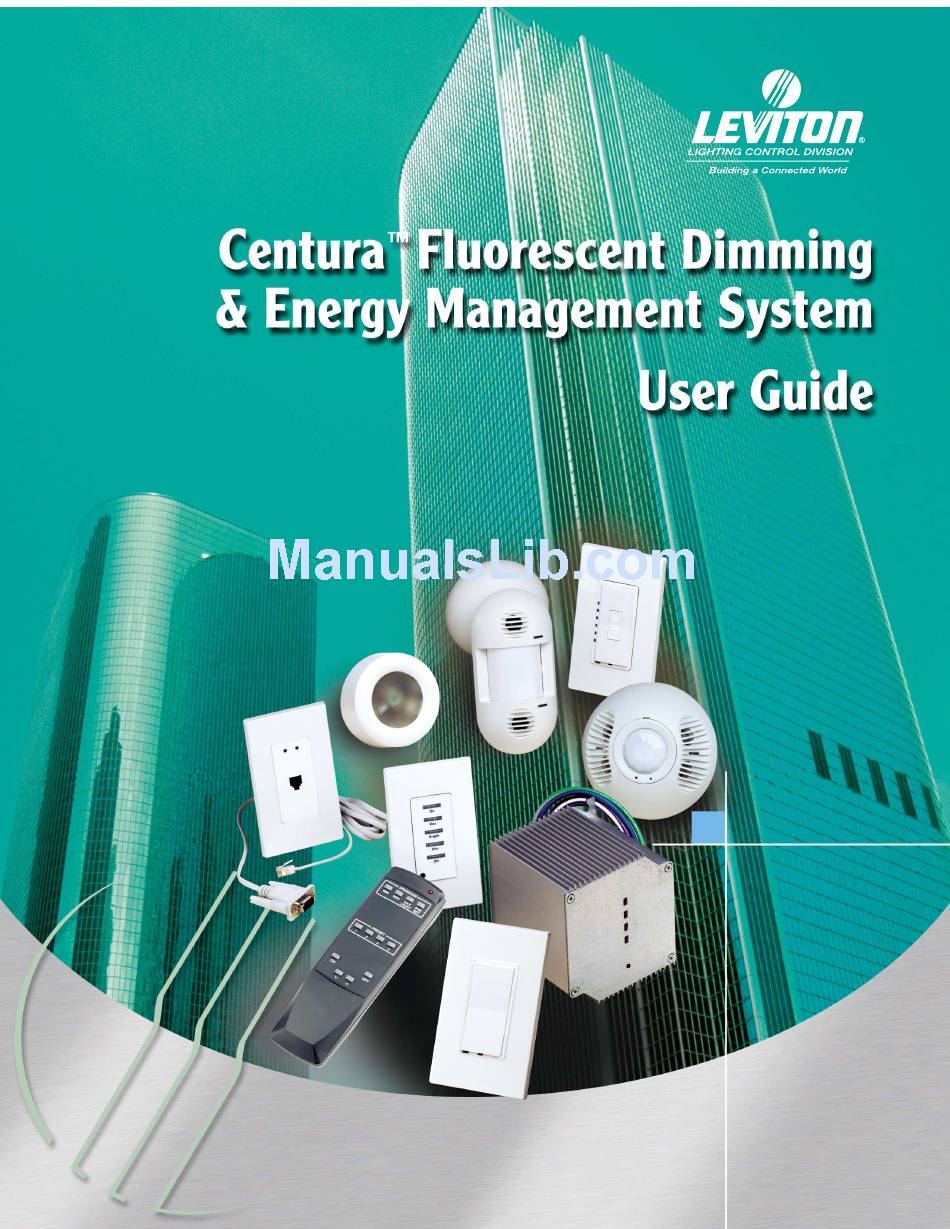

- Page 1 Raising Worker Productivity Through Modern Lighting Controls...
-
Page 3: Table Of Contents
CN100 Dimming Power Pack Input Prioritization ........ - Page 4 Advanced Settings Screen ..............23 Servicing LPD Users from their PC’s .
-
Page 5: Chapter 1: System Overview
Leviton also provides “Personal Dimmer” software tailored to the needs of each group. The average user, who wants to know how to use the system to make temporary and long-term adjustments to your lighting, should reference Chapter 2 next. -
Page 6: Options For Interfacing With Lighting System
CN200 Controller. Software Applications for the Lighting Administrator PLUS Required Jack Leviton Personal Dimmer Administrator (LPDA) CN221 Centura Dimming Controller Figure 1-3 Wall-mounted dual rocker with full dimming capability. -
Page 7: Types Of Sensors
Using surrounding ambient (often natural) light to supplement artificial light in order to keep a constant lighting level while saving electricity. Within the Centura System, daylight harvesting requires connecting the CN100 Power Pack directly to an ODC0P photocell, light fixtures, and a dimming controller and/or software and SmartJack combination. -
Page 8: How Different Sensor Combinations Operate
SYSTEM OVERVIEW • SENSOR COMBINATIONS HOW DIFFERENT SENSOR COMBINATIONS OPERATE Because the Centura System is a combination of components that may vary from installation to installation, as well as from room to room, how it works is dependent on which components are selected. - Page 9 SYSTEM OVERVIEW • SENSOR COMBINATIONS Photocell PLUS Occupancy Sensor The combination of both types of sensors automates on/off switching and dim/bright fluorescent lighting adjustments. What to Expect as You Enter the Room When you enter an empty room, the lights will turn on to the Light Maintain Level or the level the lighting was manually set to at the time the lights were turned off if that level was lower than the Light Maintain Level.
-
Page 10: Chapter 2: Basic Lighting Control
NE200 remote control. Finally, the Leviton Personal Dimmer is a familiar Windows-like graphical user interface that enables you to adjust light levels and basic settings, and turn lights on and off from your computer. -
Page 11: Selecting The Right Control
Control Leviton Personal Dimmer Software 1. The CN221’s wallplate must be removed to program settings. Leviton suggests that the average user choose a more convenient method for adjusting light levels or the unoccupied state. 2. Works with CN200 3. By setting a Preset Level to the Maximum Light Level 4. -
Page 12: Using A Cn221 Centura Dimming Controller
BASIC LIGHTING CONTROL • USING A CN200 To Adjust Settings Minimum Light Level 1. Press and hold Max button on CN200 for seven seconds. All buttons will blink to indicate the Controller is in the Program Mode. 2. Press Off button. The Off button should be the only button left blinking. 3. -
Page 13: Using A Cn220 Centura Switching Controller
Using a CN220 Centura Switching Controller For Basic Control of Lights TURN ON: Press the upper half of the rocker and the lights will turn on. TURN OFF: Press the lower half of the rocker and the lights will turn off. To Adjust Settings The CN220 does not have the ability to adjust settings. -
Page 14: Using A Leviton Personal Dimmer
Using a Leviton Personal Dimmer For Basic Control of Lights The Leviton Personal Dimmer offers two different interfaces for adjusting lights. The main LPD screen (Figure 2-5) is a full-featured tool that displays system status, access to settings, and on-line help (if help is not active, check www.leviton.com/centura for software updates). - Page 15 Although you do have the ability to switch the unit of light measurement from percentage to foot-candle through the LPD, Leviton suggests you ask the person in charge of your lights to help you do this. Resetting this unit requires use of a light meter.
-
Page 16: Chapter 3: Administrating Centura
In general, the Power Pack will adjust a load’s output level to the lowest light level called for by an active input: Leviton refers to this as the Least Light Law. For example, if the Power Pack is turned on (either manually or by occupancy) and the Light Maintain Level calls for a lower output level than the last preset manual level, the lights will adjust to the lower Light Maintain Level. -
Page 17: Cn100 Dimming Power Pack Input Prioritization
CN100 Dimming Power Pack Input Prioritization The CN100 Dimming Power Pack may receive several inputs at any one time and it prioritizes these inputs in the following order. Being aware of this order provides additional insight into how the system will operate. -
Page 18: Definitions & Advanced Settings
ADMINISTRATING CENTURA • DEFINITIONS & ADVANCED SETTINGS Definitions & Advanced Settings Familiarizing yourself with following terms, in addition to those listed in the previous chapter (Light Maintain Level, Maximum Light Level, Minimum Light Level, Preset Light Levels, Unoccupied State) will help you to understand the Centura System so you can properly administrate it. -
Page 19: Setting Up The Lpd/Lpda
Because you will need this information throughout system setup, you should compile the following data before starting the actual setup: • Names of all server computers running Leviton HTTP Server • Computer names of all users of the Centura system •... -
Page 20: Installing The Software
ADMINISTRATING CENTURA • INSTALLING THE SOFTWARE Installing the Software Once this information is compiled, it’s time to install the software. You cannot install Leviton Personal Dimmers without installing LPDA and HTTP Server software, but you can install the latter two without the LPD if the average user will be using only wall controllers or remote controls to adjust lighting. - Page 21 1. Put the Install Disk in the CD-ROM drive. 2. Run the setup program, setup.exe, under the LPDA directory. This will install the Leviton Personal Dimmer Administrator software. Follow the directions on each screen until you get to the fifth screen: Enter Information (Figure 3-3).
-
Page 22: Creating The User List
(c) Select...\Program Files\Leviton\WebPages\svradmin\users.lst as the directory. (d) Then select SAVE. Note: The users list must be saved on the computer that is running Leviton HTTP Server. 3. Press the Add New User button (or select Add on the menu) and the Add User screen (Figure 3-4) will appear. - Page 23 SERVER: Verify that the server name comes up as the name of the computer you installed HTTP Server on. If it does not, type it in. DIRECTORY: \Leviton MAX CAN NUMBER: 16 (enter the # of addresses [nodes] on this LCnet)
-
Page 24: Testing The Software
ADMINISTRATING CENTURA • TESTING THE SOFTWARE TESTING THE SOFTWARE Once the Leviton HTTP Server, (LPDS) and the Leviton Personal Dimmer Administrator, (LPDA) have been installed and the user list has been generated, a few basic tests will verify that the software is installed properly and that the interface between the building Intranet and the LCnet is working correctly. -
Page 25: Main Lpda Screen
Main LPDA Screen The main LPDA screen (Figure 3-7) not only presents an overview of the status of all addresses connected to a single Centura server, it serves as a gateway to all administrative functions. In large installations with more than one Centura server, the LPDA can be configured to display the status of any Centura server-by clicking the Config toolbar button and changing the server name. -
Page 26: Switching Servers
PRINT (Ctrl + P): Prints what’s on your screen in a spreadsheet format. PREVIEW (Alt + P) Displays the LPDA reformatted in spreadsheet style, as it will print. ABOUT: Will open up the help menus in future versions of this software. Check Leviton’s Centura homepage, www.leviton.com\centura, for software updates. -
Page 27: View Users Screen
View Users Screen Another simple way to get to the screens you’ll need to adjust settings is by double-clicking anywhere on a node’s row (on the main LPDA screen) to get to the View Users screen (Figure 3-9). From here you can go to either the main LPD screen (Config Users) or the Set Parameters screen (Control Node)-and from there, the Advanced Settings screen (Figure 3-10) by merely highlighting the desired user and selecting either button. -
Page 28: Servicing Lpd Users From Their Pc's
LPD location, you can access settings that are inaccessible (grayed out) to the average user: including the Advanced Settings screen. Version 1.0 of the software does not allow you to set or change the password, but updates to the software will. Please call the Leviton Techline to get your password (see number on back cover). -
Page 29: Setting A Power Pack Address Via The Lpda
SETTING A POWER PACK ADDRESS VIA THE LPDA The LPDA can be used as a tool for addressing, instead of wall controllers. 1. Select one of the addresses that is Available (according to the Status column) and click in its Node ID column. -
Page 30: Creating A Time Clock Schedule
ADMINISTRATING CENTURA • TIME CLOCK Creating a Time Clock Schedule The Time Clock setting allows you to set daily, weekly, or monthly lights-off schedules. For example, to create a typical weekday schedule, you must set the schedule for each day of the week you want it to run, with a Weekly Repeat, and a 1 interval. -
Page 31: Deactivating The 30-Minute Timeout Of Manual Settings
DEACTIVATING THE 30-MINUTE TIMEOUT OF MANUAL SETTINGS The Centura System with the CN100 Dimming Power Pack automatically reverts back to the Light Maintain Level after 30 minutes at a brighter, manually set level. Your state may require this override to remain active, as in California’s Title 24. -
Page 32: Changing Light Measurement Units To Foot-Candles
ADMINISTRATING CENTURA • FOOT-CANDLES CHANGING LIGHT MEASUREMENT UNITS TO FOOT-CANDLES You may feel more comfortable reading light levels as foot-candles instead of as percentages. Although you can switch the unit of measurement to a foot-candle with the LPD, this change will be only temporary. -
Page 33: Using The Cn221 Dimming Controller
Using the CN221 Dimming Controller See Figure 3-19 for location of relevant LED’s and buttons. If you haven’t already done so, pull off wallplate, turn it over, and adhere Programming Label. Use large rockers to cycle programming steps and small rockers for selection of level or setting. 1. - Page 34 ADMINISTRATING CENTURA • ADJUSTING LIGHT LEVELS The only omission from the instructions on adjusting basic user settings is using the CN221 Dimming Controller to set light levels. You have to take the wallplate off to get to the controls, so we don’t suggest that the average user do this. If you need to adjust Minimum, Maximum, and Light Maintain Levels from a location where the CN221 is the only available programming controller, please review the following steps: Instructions...
-
Page 35: Chapter 4: Troubleshooting Centura
- Use a voltmeter to check for 24VDC across the green and the green/white wire pair at the Power Pack. If there is no power, check the circuit breaker. If there is power, contact a Leviton representative. And Sensor/Controller LED’s DO Light Up If the LED’s on installed occupancy sensors, wall controllers, and/or SmartJack are lit—which means... - Page 36 No Occupancy Sensors Attached • Connect together the Power Pack’s blue and green/white low-voltage wires. If the lights do not turn on, contact a Leviton representative. Disconnect wires after test is completed. Occupancy Sensor(s) AND Photocell Installed • If the Light Maintain Level is programmed too low, the lights may stay off when you think they should turn on because the Light Maintain Level has been met—and there’s no call for additional light.
-
Page 37: Lights Won't Turn Off
• Wiring may be shorted at the lights connected to the Power Pack. Make sure that the load has been correctly hooked up to the Power Pack in accordance with the CN100 wiring diagram (Figure 4-1). • Make sure that when you push a Controller’s On button, the Communication LED lights on both the Controller and the Power Pack. -
Page 38: Lights Keep Turning On And Off
• The system may be in the Emergency Mode. If the Emergency Mode is activated, lights won’t turn off. The only way to activate and deactivate this mode is through a Leviton Personal Dimmer Administrator (Figure 4-2). Open the LPDA and if you see On in the Emergency column, you know that the Emergency Mode is activated. -
Page 39: Missing Information
• Check that both ends of the SmartJack cable are connected: one end to the SmartJack and the other end to the server computer’s serial port. • Make sure the user list is in the \Program_Files\Leviton\LPDS\WebPages\svradmin\users.lst directory. Incorrect Node Information Nodes Are Missing •... -
Page 40: Unresponsiveness
• Check that the name of the computer on which you are running the LPD matches the name used in the Users.lst file. “Can’t Access EEPROM” OR “Memory not initialized” OR “Second access failed” • Network traffic may be blocking communication between the LPD and the Leviton HTTP Server. Wait and try again. Unresponsiveness Although LPD opens, I cannot control anything •... - Page 41 Centura System Setup Data Chart Server Computer Name Serial Port Number Node Address User Computer Name ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
- Page 42 NOTES ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________ ______________________________________________________________________...
- Page 44 Telephone: 1-800-469-7890 • FAX: 1-800-563-1853 Leviton S.A. de C.V. General Arista 54-A Col. Argentina, Mexico D.F., C.P. 11270 Telephone: 011-525-386-1131, 011-525-386-2052 • FAX: 011-525-386-1797 Visit Leviton’s Website at www.leviton.com/centura © 2001 Leviton Manufacturing Co., Inc. All rights reserved. G-6124B/H1 sw...
