Summary of Contents for PCE Health and Fitness PCE-EM 880
- Page 1 User Manual PCE-EM 880 Air Quality Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 4 November 2022 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Specifications ..................2 Delivery scope ..................2 Device description ................3 Switching the meter on and off ............4 Lowest, highest and average reading ................4 Settings ..........................5 View measured values ................8 Exporting the measurement data ............9 Contact .................... -
Page 3: Safety Notes
Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
Dimensions 54 x 215 x 34 mm / 2.1 x 8.4 x 1.3" Weight 143 g / 5.0 oz Delivery scope 1 x air quality meter PCE-EM 880 1 x Micro USB cable 1 x user manual © PCE Instruments... -
Page 5: Device Description

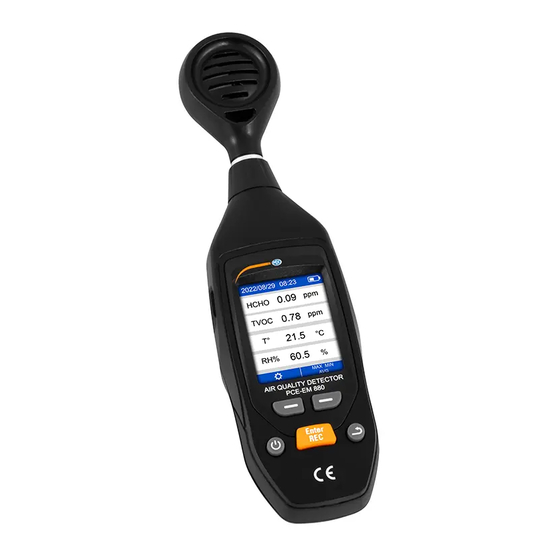

Device description Description HCHO and TVCO sensor Temperature and humidity sensor LC display Left key (interaction with the function shown on the display) Right key (interaction with the function shown on the display) On and off key Enter and record key Back key Ventilation slot Tripod holder... -
Page 6: Switching The Meter On And Off
Switching the meter on and off To switch on the meter, press and hold the on/off key for two seconds. The HCHO sensor needs a warm-up time of 10 seconds after switching on before it can measure. The TVOC sensor requires a warm-up time of 90 seconds. After that, the meter is ready for measurement. -
Page 7: Settings
Settings To access the settings, press the right key in the measurement window. This takes you directly to the settings. The left and right keys can be used to select between the individual menu items and to change parameters. The enter key opens the setting item and the set parameter is accepted. - Page 8 5.2.4 Setting the data logger To set the data logger, go to the menu, to the item "Data logger".Here, the data logger can be set. Note: The data logger is always active. The options are: Setting option Description Sampling rate Setting the storage rate Duration Setting the recording time...
- Page 9 5.2.5 Automatic power off To set the automatic power off, go to "Auto-off" in the settings. Here, you can choose between "None", 2 and 10 minutes or one hour. If "None" is selected, automatic power off is permanently deactivated. 5.2.6 Set alarm limits To set the alarm limit values, go to the settings and to the item "Alarm".
-
Page 10: View Measured Values
5.2.8 Setting the date and time To set the date and time, go to the settings, to the item "Data / Time". Here, the date and time can be set with the left and right keys. With the enter key, you can jump to the next item. View measured values To view the measured values, press and hold the record key in measurement mode. -
Page 11: Exporting The Measurement Data
Exporting the measurement data To export the measurement data to a PC, first switch off the meter and then connect it to a PC. The PC recognises the meter as a mass data storage device. From there, the measurement data are saved as a CSV file. - Page 12 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
