Icc Profile Evaluation - Image Engineering camSPECS Quick Start Manual

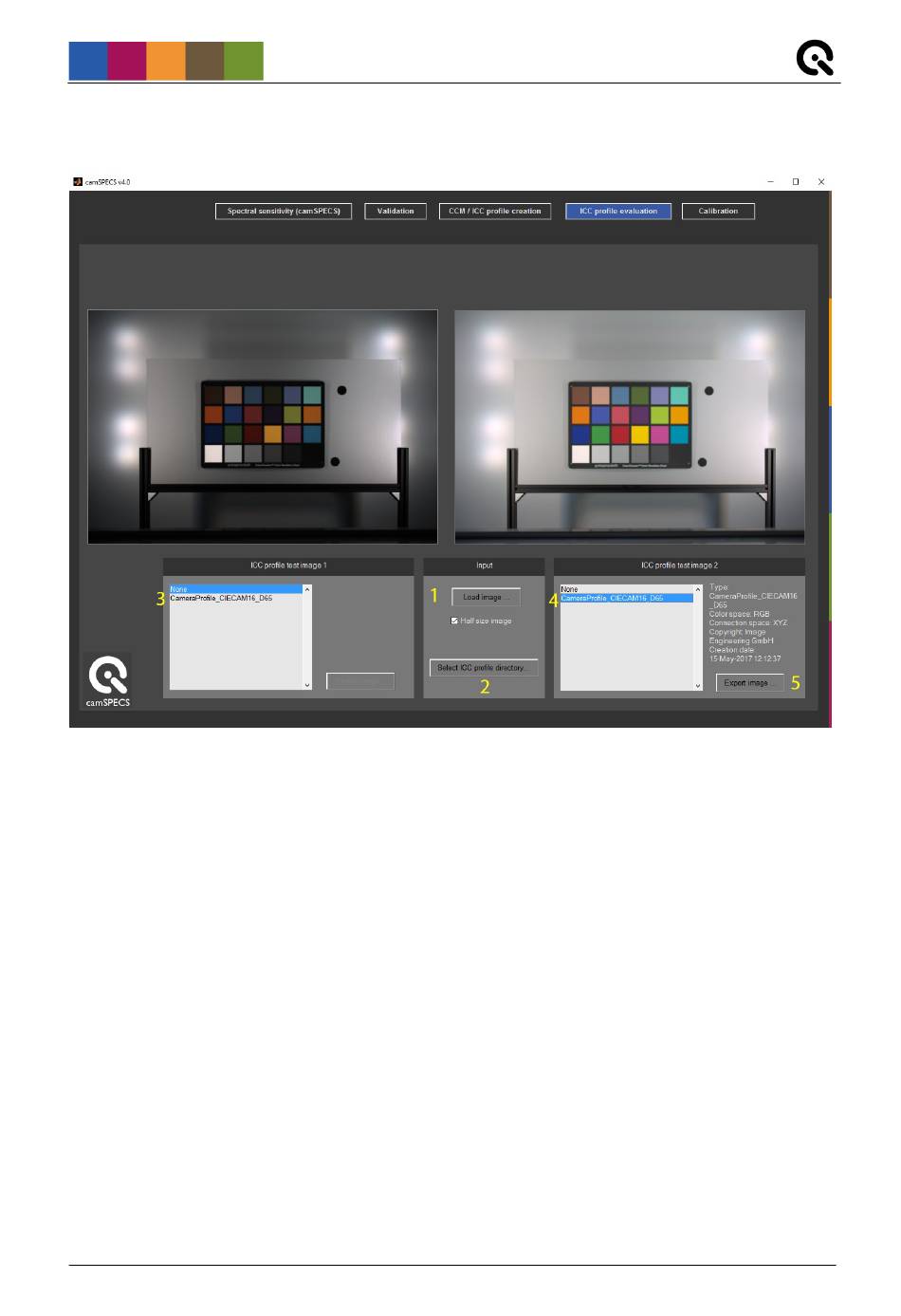

4.6 ICC profile evaluation

1. Load Image... selects a raw test image captured under the same illumination for which the ICC
profile was computed. The image will be opened and converted from raw to white balanced,16 bit,
linear RGB. The Half size image option, if checked, reduces the image size for faster processing
and viewing.
2. Select ICC profile directory... selects the directory where ICC profiles are located or were saved
in the CCM/ICC profile creation module.
3. ICC profile test image 1 selects from a list of ICC profiles. To view the raw image, select None.
4. ICC profile test image 2 selects from a list of ICC profiles. To view the image color managed for
viewing on an sRGB device, select the ICC profile just created in the CCM/ICC profile creation
module.
5. Export image... saves the white balanced, 16 bit, linear RGB image with the ICC profile
embedded.
