KEEP FOR FUTURE REFERENCE
INSTRUCTIONS
MANUAL
INTENDED FOR USE BY SKILLED
TECHNICAL PROFESSIONALS • READ AND
UNDERSTAND BEFORE INSTALLING AND USING

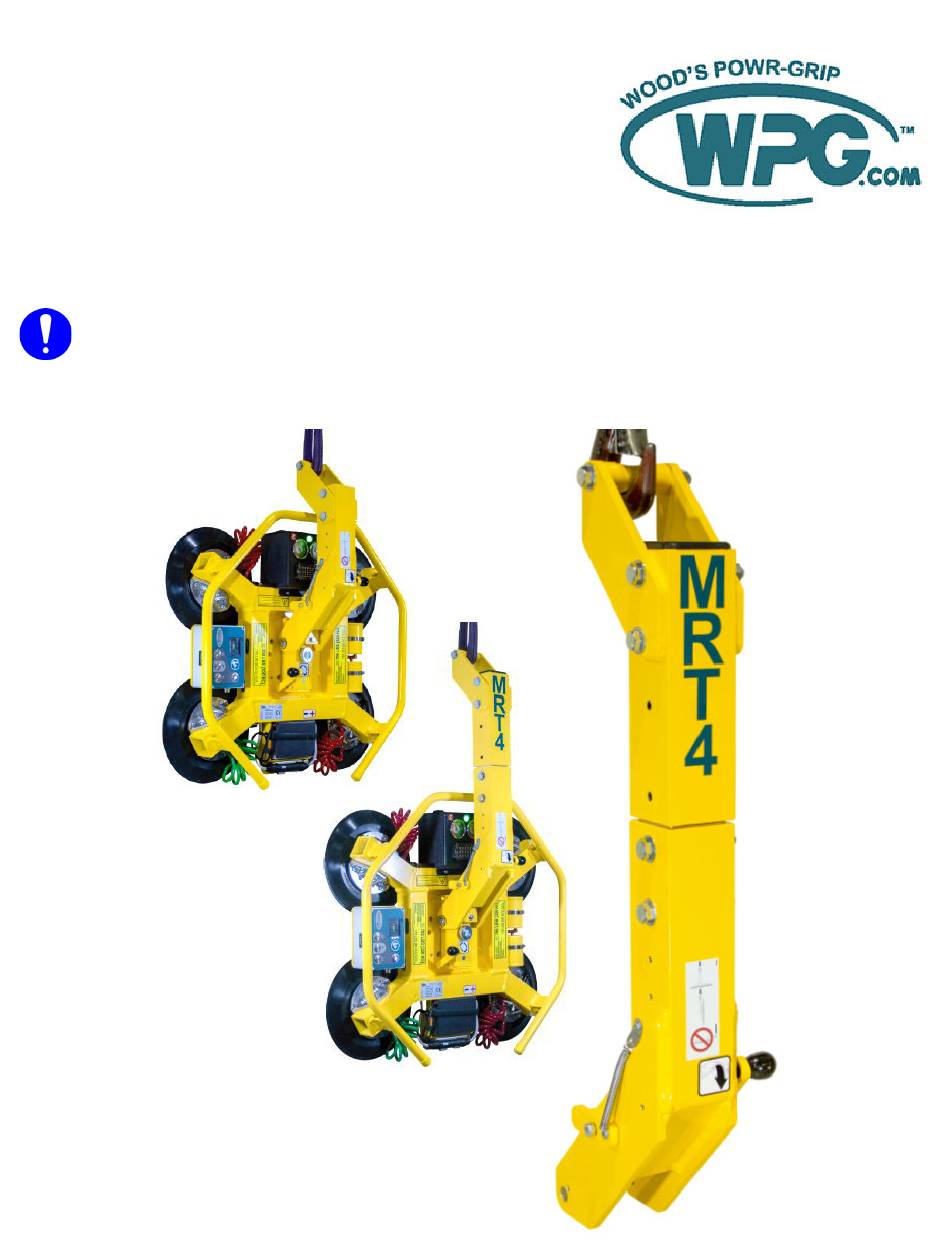

MRT4 ADAPTABLE-LENGTH LIFT BAR
Stock number: 95723
Rev 3.1/9-22
1
908 W. Main • P.O. Box 368
Laurel, MT USA 59044
800-548-7341 (phone)
406-628-8231 (phone)
406-628-8354 (fax)
www.WPG.com
#35202AFT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MRT4 and is the answer not in the manual?

Questions and answers

Summary of Contents for WPG MRT4

  • Page 1 908 W. Main • P.O. Box 368 Laurel, MT USA 59044 800-548-7341 (phone) 406-628-8231 (phone) 406-628-8354 (fax) INTENDED FOR USE BY SKILLED www.WPG.com TECHNICAL PROFESSIONALS • READ AND UNDERSTAND BEFORE INSTALLING AND USING MRT4 ADAPTABLE-LENGTH LIFT BAR Stock number: 95723 Rev 3.1/9-22 #35202AFT...
  • Page 2 #35202AFT Rev 3.1/9-22...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ..................2 INSTALLATION ..................3 ..........3 NSTALL THE DAPTABLE ENGTH ASSEMBLY....................4 ..........4 ELECT THE PPROPRIATE ONFIGURATION ............5 P THE HORT ONFIGURATION .............6 P THE TANDARD ONFIGURATION REPLACEMENT PARTS................7 LIMITED WARRANTY ................8 .............8 BTAIN EPAIRS OR ARRANTY ERVICE Rev 3.1/9-22 #35202AFT...
  • Page 4: Specifications

    SPECIFICATIONS This lift bar is designed for applications requiring minimal clearance between the lifter and the hoisting Product Description equipment, such as installations under eaves, gables or overhangs. Stock Number 95723 Maximum 700 lbs [320 kg] Load Capacity 10 lbs [5 kg] Weight Note: Make sure to add the weight of all options to the Lifter Weight when you are selecting appropriate Increase...
  • Page 5: Installation

    INSTALLATION NSTALL THE DAPTABLE ENGTH 1) Remove the original lift bar from the vacuum lifter: 1.1) Remove the cotter pin (A) from the end of the tilt pin (B). 1.2) Remove the hex head bolt (C) and its washer from the opposite end. This will enable you to slide the tilt pin out from the center section (D).
  • Page 6: Assembly

    ASSEMBLY ELECT THE PPROPRIATE ONFIGURATION Before suspending the vacuum lifter from hoisting equipment as directed in the “ASSEMBLY” section of the lifter’s OPERATING INSTRUCTIONS, assemble the Adaptable-Length Lift Bar in the appropriate configuration for the intended use: • For normal applications (see “OPERATION:...
  • Page 7: T O Set U P The Short Configuration

    ASSEMBLY P THE HORT ONFIGURATION Disconnect the lift point assembly from the upper lift bar segment: 1.1) Remove the 4¾" hex head bolts and associated hardware (items A in fig. 1A) that secure the assembly on the segment. 1.2) Remove the assembly from the segment. 2) Remove the 4"...
  • Page 8: T O Set U P The Standard Configuration

    ASSEMBLY P THE TANDARD ONFIGURATION 1) Disconnect the lift point assembly from the lower lift bar segment: 1.1) Remove the 4¾" hex head bolts and associated hardware that secure the assembly to the segment. 1.2) Remove the assembly from the segment. 2) Connect the upper and lower lift bar segments.
  • Page 9: Replacement Parts

    12760 1/2" Split Lock Washer 11124 1/2-13 Hex Nut 10859 1/2-13 x 4-3/4" Hex Head Bolt 10854 1/2-13 x 4" Hex Head Bolt ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 3.1/9-22 #35202AFT...
  • Page 10: Limited Warranty

    Contact the WPG Technical Service Department. When factory service is required, ship the complete product – prepaid – along with your name, address and phone number to the street address listed at the bottom of this page. WPG may be reached by phone or fax numbers listed below.
