KEEP FOR FUTURE REFERENCE
OPERATING
INSTRUCTIONS
INTENDED FOR USE BY SKILLED
PROFESSIONALS • READ AND
UNDERSTAND BEFORE OPERATING
FLEXR(L) SERIES FLAT LIFTER,
DC-VOLTAGE

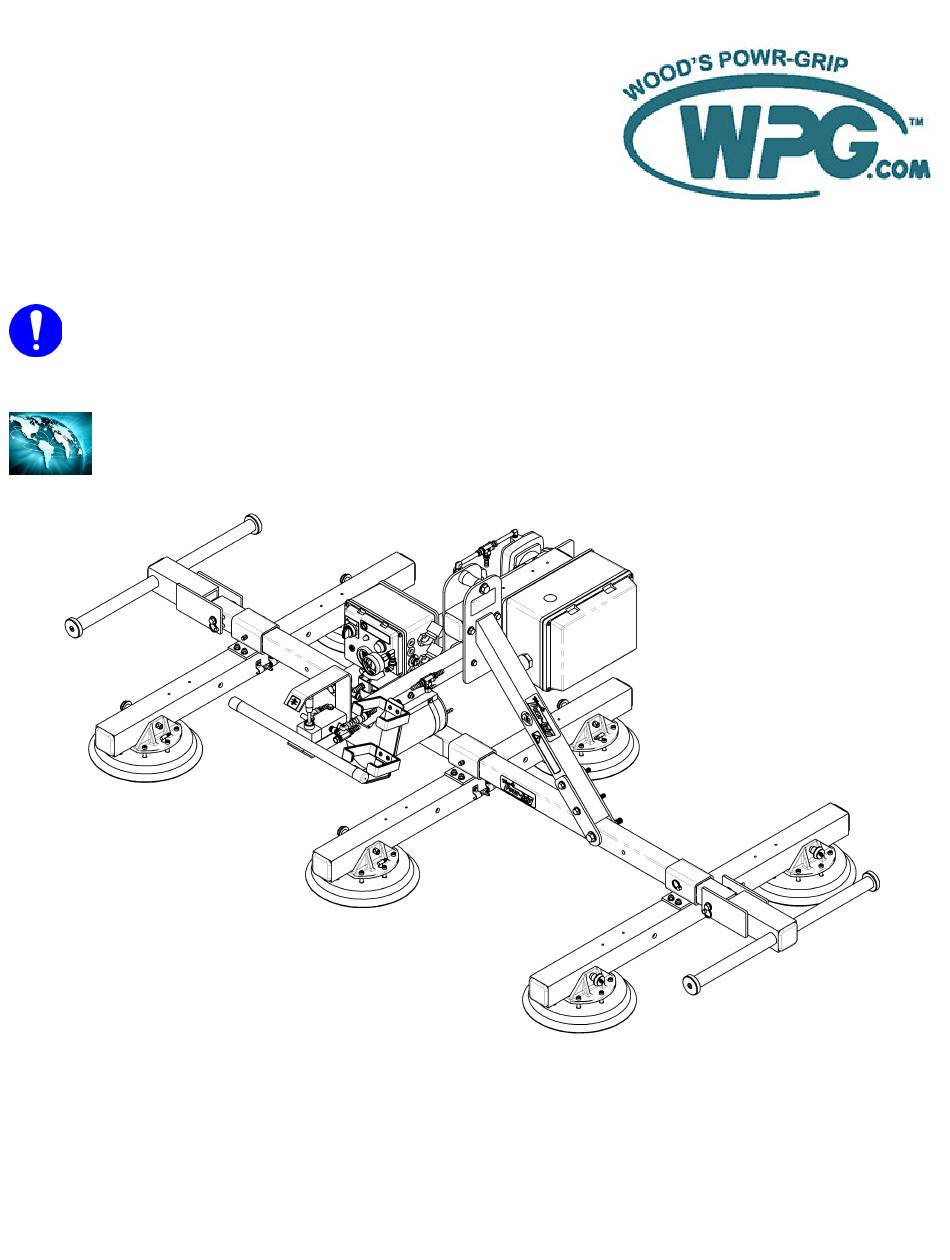

Model numbers: FLEXR4HV11DC, FLEXR6HV11DC (shown), FLEXRL6HV11DC
Serial number: ___________________________ (to locate, see serial label on the product)
Rev 5.1/4-21
1
908 W. Main • P.O. Box 368
Laurel, MT USA 59044
800-548-7341 (phone)
406-628-8231 (phone)
406-628-8354 (fax)
www.WPG.com
FLEXR(L)-HV11DC: #35037
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WPG FLEXR Series
Summary of Contents for WPG FLEXR Series
- Page 1 908 W. Main • P.O. Box 368 Laurel, MT USA 59044 800-548-7341 (phone) 406-628-8231 (phone) 406-628-8354 (fax) INTENDED FOR USE BY SKILLED www.WPG.com PROFESSIONALS • READ AND UNDERSTAND BEFORE OPERATING FLEXR(L) SERIES FLAT LIFTER, DC-VOLTAGE Model numbers: FLEXR4HV11DC, FLEXR6HV11DC (shown), FLEXRL6HV11DC Serial number: ___________________________ (to locate, see serial label on the product) Rev 5.1/4-21...
- Page 2 FLEXR(L)-HV11DC: #35037 Rev 5.1/4-21...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ..................3 SAFETY....................5 OPERATING FEATURES................6 ASSEMBLY....................7 INTENDED USE ..................8 .................8 HARACTERISTICS ................9 PERATING NVIRONMENT ................9 ISPOSAL OF THE IFTER OPERATION..................10 ................10 EFORE SING THE IFTER Taking Safety Precautions ....................10 Performing Inspections and Tests ..................10 Checking the Battery......................11 ............12 SE THE PTIONAL... - Page 4 TABLE OF CONTENTS INSPECTIONS AND TESTS..............22 ................22 NSPECTION CHEDULE ....................23 ESTING Lifter/Load Compatibility Test...................23 Operational Tests ......................24 Vacuum Test........................24 Rated Load Test.........................25 MAINTENANCE ..................26 ...............26 ACUUM AINTENANCE Pad Inspection ........................26 Pad Cleaning ........................27 ..................28 ATTERY ECHARGE REPLACEMENT PARTS................29 LIMITED WARRANTY ................30 ...........30 BTAIN EPAIRS OR...
-
Page 5: Specifications
“qualified person” should evaluate the effective lifting capacity for each use (see definition under “Rated Load Test”). 2..Available with other rubber compounds for special purposes (see www.wpg.com). 3..Vacuum pads, filter elements and other wear-out items are excluded. 4..To view this guide, click the link above. - Page 6 SPECIFICATIONS Note: A standard FLEXR6HV11DC is shown. FLEXR(L)-HV11DC: #35037 Rev 5.1/4-21...
-
Page 7: Safety
SAFETY Wear personal protective Make sure the contact surfaces of equipment that is appropriate for the load and vacuum pad are clean the load material. Follow trade before attaching the lifter (see association guidelines. “MAINTENANCE”). Do not remove or obscure safety Position the vacuum pads correctly labels. -
Page 8: Operating Features
OPERATING FEATURES Features shown here are underlined on their first appearance in each section following. LIFT POINT CONTROL HANDLE PAD FRAME SLIDING PAD ARM VACUUM PAD AIR FILTER BATTERY TEST BUTTON BATTERY GAUGE LOW VACUUM WARNING LIGHT 10 Enclosure with VACUUM SWITCH 11 POWER SWITCH 12 VACUUM GAUGE 13 VACUUM CONTROL VALVE... -
Page 9: Assembly
ASSEMBLY 1) Remove all shipping materials and save them with the shipping container for future use. 2) Suspend the lifter from appropriate hoisting equipment: 2.1) Select a crane and/or hoist rated for the Maximum Load Capacity plus the Lifter Weight. Note: Any lifter use must comply with all statutory or regulatory standards for hoisting equipment in your region. -
Page 10: Intended Use
2..A “single piece” of material includes curtainwall assemblies, unitized glazing systems and similar construction units. 3..Vacuum pads made from a heat-resistant rubber compound can enable you to lift loads with higher surface temperatures. Contact WPG or an authorized dealer for more information. -
Page 11: Operating Environment
1..Although lifter use may be possible at higher elevation, lifting capacity is reduced whenever the lifter is unable to attain vacuum in the green range on the vacuum gauge. Contact WPG for more information. 2..Special provisions may allow the lifter to operate outside the specified temperature range. Contact WPG for more information. Rev 5.1/4-21... -
Page 12: Operation
OPERATION EFORE SING THE IFTER Determine whether the vacuum lifter is capable of each intended task (see “SPECIFICATIONS” “INTENDED USE”). Then complete the following preparations: Taking Safety Precautions • Be trained in all industry Read all directions and safety rules before using and regulatory standards lifter. -
Page 13: Checking The Battery
OPERATION Checking the Battery Always check battery energy before every lift. Use the battery gauge to determine whether the battery needs to be charged (see “B ATTERY ”). Never use the lifter unless battery energy appears in the green range. ECHARGE •... -
Page 14: T O Use The Optional Pad Shutoffs
OPERATION SE THE PTIONAL HUTOFFS Each pad shutoff on the pad frame controls the vacuum line to the adjacent vacuum pad. Activating or deactivating the airflow at specific pads enables the lifter to handle loads with different weights and dimensions (see “SPECIFICATIONS”) or to avoid holes in the load surface. To support the maximum load weight and larger load Closing any pad shutoff dimensions, all pads must be activated;... -
Page 15: T O Adjust Pad Positions
OPERATION DJUST OSITIONS To reposition the vacuum pads on the pad frame for Position vacuum hoses handling various load dimensions (see “OPERATING as needed to prevent FEATURES”), move the sliding pad arms and movable pad damage to them during lifter mounts as needed to provide optimal load support and to operation. -
Page 16: Positioning Pad Mounts
OPERATION Positioning Pad Mounts Remove the cotterless hitch pin from one movable pad mount (fig. 1A). 2) Move the pad mount to a suitable position where the pin holes align (fig. 2A). 3) Reinsert the pin (fig. 3A). 4) Reposition the other pad mount on the same arm at an equal distance from the main beam of the pad frame (fig. -
Page 17: Ttach The Ads To Aoad
OPERATION TTACH THE ADS TO A Powering up the Lifter Make sure the lever on the vacuum control valve is in the center position (fig. 1A). Place the power switch in the “on” position ( in fig 2A). Do not place power switch in “off” position ( ) while operating lifter. -
Page 18: Sealing The Pads On The Load
OPERATION Center the pad frame on the load (fig. 2B). Off-center Always center pad loading could result in unexpected load movement, release frame on load. or personal injury. 3) Make sure all vacuum pads will fit on the load and will be loaded evenly (fig. 3B). Consult the Per-Pad Load Capacity. -
Page 19: Reading The Vacuum Gauge
SERVICE MANUAL). • Perform the “Vacuum Test”. 1..If the lifter is used above the maximum Operating Elevation (see “SPECIFICATIONS”), it may not be able to maintain sufficient vacuum for lifting. Contact WPG for more information. Rev 5.1/4-21 FLEXR(L)-HV11DC: #35037... -
Page 20: T O Lift And Move The Load
OPERATION IFT AND OVE THE Interpreting the Warning Light When vacuum is Never lift load unless warning devices turn off, because sufficient to lift the this could result in load release and personal injury. Maximum Load Capacity, the vacuum pump and the low vacuum warning light turn off temporarily, to conserve battery energy. -
Page 21: Controlling The Lifter And Load
OPERATION Controlling the Lifter and Load When the lifter is ready, use the hoisting equipment to raise the lifter and load as needed. Use the control handle (circled in fig. 1A) to keep the lifter and load in the required position. Once there is enough clearance, you may move the load as required. -
Page 22: T O Release The Pads From The Load
OPERATION ELEASE THE ADS FROM THE Make sure load is at rest and fully supported before releasing vacuum pads. Place the vacuum control valve lever in the “release” position ( — fig. 1A), to break the vacuum seal. Do not move lifter until pads release completely, because such movement could result in load damage or personal injury. -
Page 23: Storing The Lifter
OPERATION Caution: Do not set the lifter on surfaces that could soil or damage vacuum pads. Note: The adjustable control handles (fig. 2C) can be used to support an unloaded lifter when not suspended (see “T ”). DJUST THE ONTROL ANDLES Storing the Lifter Use the covers supplied to keep the vacuum pads clean (fig. -
Page 24: Inspections And Tests
2..The Periodic Inspection is also required whenever the lifter has been out of service for 1 year or more. Keep a written record of all Periodic Inspections. If necessary, return the lifter to WPG or an authorized dealer for repair (see “LIMITED... -
Page 25: Testing
12" Hg [-41 kPa] for 5 minutes. If not, lifting this load requires additional precautions (eg, a load sling). Contact WPG for more information. 8) Lower the load after 5 minutes or before the vacuum level diminishes to 12" Hg [-41 kPa]. -
Page 26: Operational Tests
1..The load should have either a flat surface or no more curvature than the lifter is designed for, if any. 2..For more information, search for your lifter’s Model Number at www.wpg.com and select the “Troubleshooting” link on the product page. -
Page 27: Rated Load Test
7) Prepare a written report of the test and keep it on file. 1..An equivalent simulation may also be used. Contact WPG for more information. 2..A “qualified person” has successfully demonstrated the ability to solve problems relating to the subject matter and work, either by possessing a recognized degree in an applicable field or a certificate of professional standing, or by possessing extensive knowledge, training and experience. -
Page 28: Maintenance
MAINTENANCE Note: Refer to SERVICE MANUAL #36114 when applicable. ACUUM AINTENANCE The Maximum Load Capacity is determined by testing of clean, new, standard rubber vacuum pads on clean, dry, regular glass. If the lifter is used under any other conditions, a qualified person must first determine the effective lifting capacity. -
Page 29: Pad Cleaning
4) Allow each pad to dry completely before using the lifter. 1..A brush with bristles that do not harm rubber can help remove contaminates clinging to sealing edges. If these cleaning methods are not successful, contact WPG or an authorized dealer for assistance. Rev 5.1/4-21... -
Page 30: Battery Recharge
The red error light can indicate other problems, depending on the mode selected and level of charging; if necessary, contact WPG for assistance. 5..The charger automatically reduces the charging rate when the battery is fully charged. -
Page 31: Replacement Parts
* — Length as required; sold by the foot (approx 30.5 cm) **— Quantity as required SERVICE MANUAL #36114 for additional parts. ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 5.1/4-21 FLEXR(L)-HV11DC: #35037... -
Page 32: Limited Warranty
Contact the WPG Technical Service Department. When factory service is required, ship the complete product – prepaid – along with your name, address and phone number to the street address listed at the bottom of this page. WPG may be reached by phone or fax numbers listed below. - Page 33 DRAWINGS 908 W. Main • P.O. Box 368 Laurel, MT USA 59044 800-548-7341 (phone) • 406-628-8231 (phone) 406-628-8354 (fax) • www.WPG.com INTENDED FOR USE BY SKILLED TECHNICAL PROFESSIONALS • READ AND UNDERSTAND BEFORE ROUTING, WIRING AND/OR ASSEMBLING FLEXR(L) SERIES FLAT LIFTER,...
