INTENDED FOR USE BY PROFESSIONAL EQUIPMENT OPERATORS
OPERATING
INSTRUCTIONS
READ AND UNDERSTAND BEFORE
OPERATING THIS EQUIPMENT
APPLICABLE TO SERIAL NUMBERS 20210808
AND LATER. FOR EARLIER NUMBERS,
SEARCH WPG'S ARCHIVE.

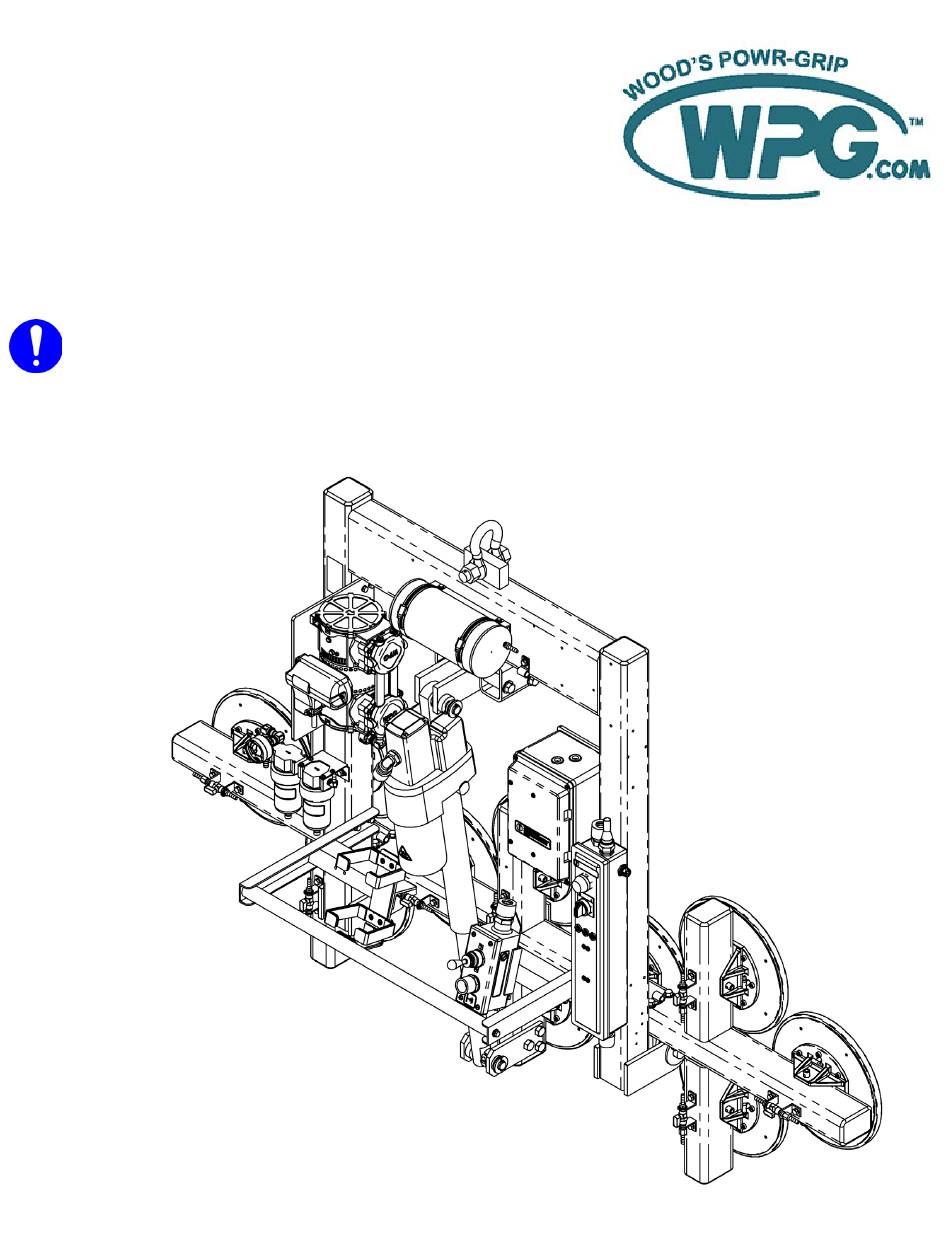

POWER TILTER 1500,
AC-VOLTAGE
Model numbers: PT1010TAC (shown), PT1010TACO, PT1410TAC
Original Instructions © Wood's Powr-Grip Co., Inc.
Rev 16.0/11-23
1
908 W. Main • P.O. Box 368
Laurel, MT USA 59044
800-548-7341
406-628-8231
www.WPG.com
PT-10TAC: #35142
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WPG PT1010TAC
Summary of Contents for WPG PT1010TAC
- Page 1 READ AND UNDERSTAND BEFORE OPERATING THIS EQUIPMENT APPLICABLE TO SERIAL NUMBERS 20210808 AND LATER. FOR EARLIER NUMBERS, SEARCH WPG’S ARCHIVE. POWER TILTER 1500, AC-VOLTAGE Model numbers: PT1010TAC (shown), PT1010TACO, PT1410TAC Original Instructions © Wood’s Powr-Grip Co., Inc. Rev 16.0/11-23 PT-10TAC: #35142...
- Page 2 PT-10TAC: #35142 Rev 16.0/11-23...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ..................3 SAFETY....................5 OPERATING FEATURES................6 ASSEMBLY....................7 ..........10 NSTALL THE ONTROL ANDLE XTENSIONS INTENDED USE ..................11 ................11 HARACTERISTICS ..................12 NDIRECT OADING ................12 PERATING NVIRONMENT ................12 ISPOSAL OF THE IFTER OPERATION..................13 ................13 EFORE SING THE IFTER Taking Safety Precautions ....................13 Performing Inspections and Tests ..................13 .................14 SE THE... - Page 4 Pad-to-Load Friction Coefficient ..................26 Pad Inspection ........................26 Pad Cleaning ........................27 VPFS10T P ..........28 EPLACE EALING ING IN REPLACEMENT PARTS................29 REGISTRATION AND LIMITED WARRANTY ..........30 WPG P ...............30 EGISTER THIS RODUCT ..............30 BOUT THE IMITED ARRANTY Obtaining Warranty Service or Repair Service..............30 PT-10TAC: #35142...
-
Page 5: Specifications
PARTS”). 5..Specifications shown for 120V AC lifters; characteristics may vary for other voltages. 6..While the Control Handle Extensions are optional for the PT1010TAC(O), they are standard equipment for the PT1410TAC. The extensions are not installed before shipping. 7..Vacuum pads, filter elements and other wear-out items are excluded. - Page 6 SPECIFICATIONS Note: A standard PT1010TAC is shown at top; a PT1010TACO (with pad frame option) is shown at center; a standard PT1410TAC (with Control Handle Extension) is shown at bottom. PT-10TAC: #35142 Rev 16.0/11-23...
-
Page 7: Safety
SAFETY Wear personal protective equipment Make sure the contact surfaces of the that is appropriate for the load load and vacuum pads are clean material. Follow trade association before attaching the lifter (see guidelines. “MAINTENANCE”). Do not remove or obscure safety Position the vacuum pads correctly on labels. -
Page 8: Operating Features
17 VACUUM LIFT LIGHT 18 POWER SWITCH 19 CIRCUIT BREAKERS Note: A standard PT1010TAC is shown. Although some of the following photos do not show this specific lifter, they all illustrate how this kind of lifter functions. For information about specific parts, see “REPLACEMENT PARTS”... -
Page 9: Assembly
ASSEMBLY 1) Remove all shipping materials and save them with the shipping container for future use. Connect the power cable: Make sure power source has ground fault circuit interrupter. 2.1) Wire the female connector provided Wiring must be performed by to an appropriate power source, as qualified service personnel, taking indicated on the label attached. - Page 10 ASSEMBLY 3.2) Raise the lift bar by engaging the tilt actuator (see “T ”) and manually ILT THE lifting the bar at the same time (figs. 3A-B). Caution: Manually assist tilt actuator when raising lift bar, to avoid damaging actuator. 3.3) Attach the hoisting hook to the lift point (fig.
- Page 11 ASSEMBLY Remove the pad covers (fig. 4A) and save them for future use. 5) Perform tests as required under “T ”. ESTING Rev 16.0/11-23 PT-10TAC: #35142...
-
Page 12: Nstall The Ontrol Andle Xtensions
ASSEMBLY NSTALL THE ONTROL ANDLE XTENSIONS When applicable, install the Control Handle Extensions using the parts supplied: RIGHT CONTROL HANDLE EXTENSION 1/4-20 X 3/4" HEXHEAD SCREW 1/4" SPLIT LOCK WASHER 1/4" SAE FLAT WASHER CONTROL HANDLE EXTENSION CONNECTOR LEFT CONTROL HANDLE EXTENSION 3/8-16 X 4"... -
Page 13: Intended Use
2..A “single piece” of material includes curtainwall assemblies, unitized glazing systems and similar construction units. 3..Vacuum pads made from a heat-resistant rubber compound can enable you to lift loads with higher surface temperatures. Contact WPG or an authorized dealer for more information. -
Page 14: Indirect Loading
1..Although lifter use may be possible at higher elevation, lifting capacity is reduced whenever the lifter is unable to attain vacuum in the green range on the vacuum gauge. Contact WPG for more information. 2..Special provisions may allow the lifter to operate outside the specified temperature range. Contact WPG for more information. PT-10TAC: #35142... -
Page 15: Operation
OPERATION EFORE SING THE IFTER Determine whether the vacuum lifter is capable of each intended task (see “SPECIFICATIONS” “INTENDED USE”). Then complete the following preparations: Taking Safety Precautions • Be trained in all industry Read all directions and safety rules before using and regulatory standards lifter. -
Page 16: T O Use The Pad Shutoffs
OPERATION SE THE HUTOFFS Each pad shutoff on the pad frame controls the vacuum line to the adjacent vacuum pad. Activating or deactivating the airflow at specific pads enables the lifter to handle loads with different weights and dimensions (see “SPECIFICATIONS”) or to avoid holes in the load surface. To support the maximum load weight and larger load Closing any pad shutoff dimensions, all pads must be activated;... -
Page 17: Ttach The Ads To Aoad
OPERATION TTACH THE ADS TO A Generating Airflow Place the power switch in the “on” position ( ), to engage the vacuum pump. Keep pump running throughout lift. The lifter is designed for the vacuum pump to run continuously. Placing the power switch in the “off” position ( ) during lifter operation could result in a load release and personal injury (see “In Case of a Power... -
Page 18: Reading The Vacuum Gauge
1..Although a vacuum pad may become distorted during shipping or storage, this condition should correct itself with continued use. 2..If the lifter is used above the maximum Operating Elevation (see “SPECIFICATIONS”), it may not be able to maintain sufficient vacuum for lifting. Contact WPG for more information. PT-10TAC: #35142... -
Page 19: Ift And Ove The Oad
OPERATION IFT AND OVE THE Lift bar must be vertical to lift load. Interpreting the Lift Light When vacuum is sufficient vacuum Never lift load unless lift light is to lift the Maximum Load Capacity, illuminated, because premature lifting the vacuum lift light turns on could result in load release and personal injury. -
Page 20: Controlling The Lifter And Load
OPERATION Controlling the Lifter and Load When the lifter is ready, use the hoisting equipment to raise the lifter and load as needed. Use a control handle (circled in fig. 1A) to keep the lifter and load in the required position. Once there is enough clearance, you may move the load as required. -
Page 21: T O Tilt The Load
OPERATION ILT THE Make sure load is positioned correctly on lifter (as previously directed). Caution: Unbalanced loads can interfere with the lifter’s tilt capability. 1) Make sure the load has enough clearance to tilt without contacting anyone or anything. 2) Use the tilt toggle switch on the movable control pendant to tilt the load as required: •... -
Page 22: T O Release The Pads From The Load
OPERATION ELEASE THE ADS FROM THE Make sure load is at rest and fully supported before releasing vacuum pads. Push the vacuum release button ( — circled in fig. 1A) on the movable control pendant, to break the vacuum seal. Continue to hold the release button Do not move lifter until pads release until the vacuum pads release the... -
Page 23: Storing The Lifter
OPERATION Note: Parking feet (circled) on the pad frame can be used to support an unloaded lifter when not suspended. Make sure the lifter leans securely against an appropriate support that does not contact the vacuum pads. Storing the Lifter Disconnect the electrical connectors (figs. -
Page 24: Inspections And Tests
2..The Periodic Inspection is also required whenever the lifter has been out of service for 1 year or more. Keep a written record of all Periodic Inspections. If necessary, return the lifter to WPG or an authorized dealer for repair (see “REGISTRATION AND LIMITED... -
Page 25: Testing
12" Hg [-41 kPa] for 5 minutes. If not, lifting this load requires additional precautions (eg, a load sling). Contact WPG for more information. 8) Lower the load after 5 minutes or before the vacuum level diminishes to 12" Hg [-41 kPa]. -
Page 26: Operational Tests
INSPECTIONS AND TESTS Perform the following tests before placing the lifter in service initially, following any repair, when directed in the “I ”, or whenever necessary: NSPECTION CHEDULE Operational Tests Test all features and functions of the lifter (see “OPERATING FEATURES” and “OPERATION”). Vacuum Test 1) Clean the faces of the vacuum pads (see “Pad... -
Page 27: Rated Load Test
7) Prepare a written report of the test and keep it on file. 1..An equivalent simulation may also be used. Contact WPG for more information. 2..A “qualified person” has successfully demonstrated the ability to solve problems relating to the subject matter and work, either by possessing a recognized degree in an applicable field or a certificate of professional standing, or by possessing extensive knowledge, training and experience. -
Page 28: Maintenance
MAINTENANCE Note: Refer to SERVICE MANUAL #35275 when applicable. ACUUM AINTENANCE Pad-to-Load Friction Coefficient The friction coefficient represents the lifter's ability to resist load slippage. The Maximum Load Capacity assumes a friction coefficient of 1, based on testing of clean, new, standard rubber vacuum pads on clean, dry, regular glass. -
Page 29: Pad Cleaning
4) Allow the pad to dry completely before using the lifter. 1..A brush with bristles that do not harm rubber can help remove contaminates clinging to sealing edges. If these cleaning methods are not successful, contact WPG or an authorized dealer for assistance. Rev 16.0/11-23... -
Page 30: T O Replace Sealing Ring In Vpfs10T Pads
MAINTENANCE VPFS10T P EPLACE EALING ING IN If the lifter has VPFS10T vacuum pads, replace sealing rings (#49724RT or #49724TT) as follows: 1) Remove the old sealing ring (fig. 1A). Note: Make sure the entire vacuum pad is clean, including the mounting groove. -
Page 31: Replacement Parts
10900 10 / 14 * — Length as required; sold by the inch (approx 2.5 cm). SERVICE MANUAL #35275 for additional parts. ERVICE ONLY WITH IDENTICAL REPLACEMENT PARTS WPG.COM AVAILABLE AT OR THROUGH AN AUTHORIZED DEALER Rev 16.0/11-23 PT-10TAC: #35142... -
Page 32: Registration And Limited Warranty
PRODUCT REGISTRATION page at wpg.com and complete the form. Registration keeps you advised of important updates and notifications, and simplifies inquiries to WPG regarding your product. Registration is not required to activate your Limited Warranty (see next section). BOUT THE... - Page 33 Rev 16.0/11-23 PT-10TAC: #35142...
- Page 34 PT-10TAC: #35142 Rev 16.0/11-23...
- Page 35 Rev 16.0/11-23 PT-10TAC: #35142...
- Page 36 PT-10TAC: #35142 Rev 16.0/11-23...
- Page 37 Rev 16.0/11-23 PT-10TAC: #35142...
- Page 38 PT-10TAC: #35142 Rev 16.0/11-23...
