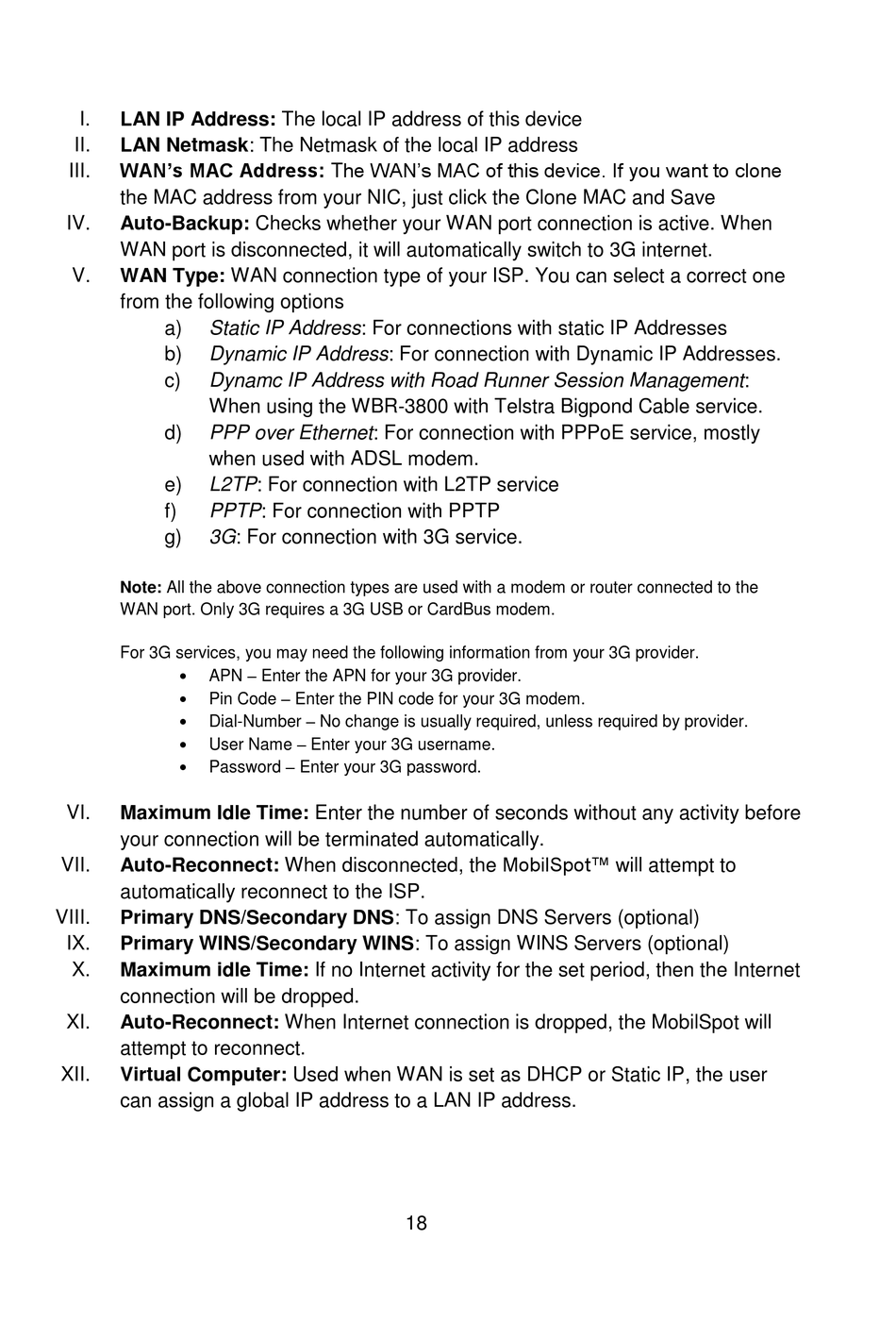

LevelOne MobilSpot WBR-3800 User Manual page 23

I. LAN IP Address: The local IP address of this device
II. LAN Netmask: The Netmask of the local IP address
WAN's MAC Address: The WAN's MAC of this device. If you want to clone
III.
the MAC address from your NIC, just click the Clone MAC and Save
IV. Auto-Backup: Checks whether your WAN port connection is active. When
WAN port is disconnected, it will automatically switch to 3G internet.
V. WAN Type: WAN connection type of your ISP. You can select a correct one
from the following options
a) Static IP Address: For connections with static IP Addresses
b) Dynamic IP Address: For connection with Dynamic IP Addresses.
c) Dynamc IP Address with Road Runner Session Management:
When using the WBR-3800 with Telstra Bigpond Cable service.
d) PPP over Ethernet: For connection with PPPoE service, mostly
when used with ADSL modem.
e) L2TP: For connection with L2TP service
f) PPTP: For connection with PPTP
g) 3G: For connection with 3G service.
Note: All the above connection types are used with a modem or router connected to the
WAN port. Only 3G requires a 3G USB or CardBus modem.
For 3G services, you may need the following information from your 3G provider.

APN – Enter the APN for your 3G provider.

Pin Code – Enter the PIN code for your 3G modem.

Dial-Number – No change is usually required, unless required by provider.

User Name – Enter your 3G username.

Password – Enter your 3G password.
VI. Maximum Idle Time: Enter the number of seconds without any activity before
your connection will be terminated automatically.
Auto-Reconnect: When disconnected, the MobilSpot™ will attempt to
VII.
automatically reconnect to the ISP.
VIII. Primary DNS/Secondary DNS: To assign DNS Servers (optional)
IX. Primary WINS/Secondary WINS: To assign WINS Servers (optional)
X. Maximum idle Time: If no Internet activity for the set period, then the Internet
connection will be dropped.
XI. Auto-Reconnect: When Internet connection is dropped, the MobilSpot will
attempt to reconnect.
XII. Virtual Computer: Used when WAN is set as DHCP or Static IP, the user
can assign a global IP address to a LAN IP address.
18
