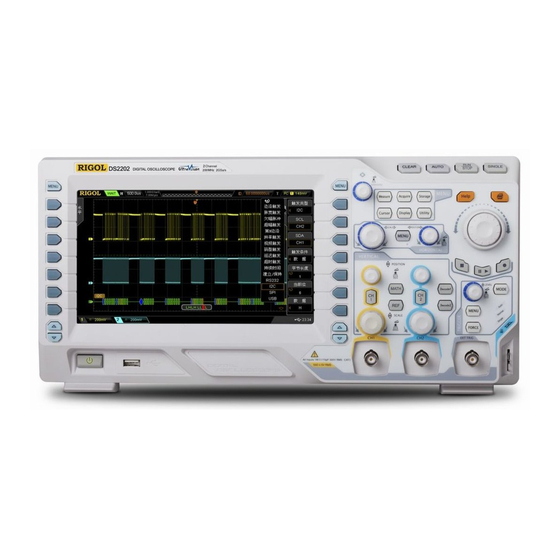

Rigol DS2000 Series Service Manual
Digital oscilloscope
Hide thumbs
Also See for DS2000 Series:
- User manual (266 pages) ,
- Quick manual (38 pages) ,
- Firmware upgrade procedure (4 pages)
Related Manuals for Rigol DS2000 Series
Summary of Contents for Rigol DS2000 Series
- Page 1 RIGOL Service Guide DS2000 Series Digital Oscilloscope Feb. 2014 RIGOL Technologies, Inc.
-
Page 3: Guaranty And Declaration
Notices RIGOL products are protected by patent law in and outside of P.R.C. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 4: Safety Requirement
Do Not Operate With Suspected Failures. If you suspect damage occurs to the instrument, have it inspected by qualified service personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. DS2000 Service Guide... - Page 5 RIGOL Keep Well Ventilation. Inadequate ventilation may cause increasing of temperature or damages to the device. So please keep well ventilated and inspect the intake and fan regularly. Do Not Operate in Wet Conditions. In order to avoid short circuiting to the interior of the device or electric shock, please do not operate in a humid environment.
-
Page 6: Safety Terms And Symbols
RIGOL Safety Terms and Symbols Terms in this Manual. These terms may appear in this manual: WARNING Warning statements indicate the conditions or practices that could result in injury or loss of life. CAUTION Caution statements indicate the conditions or practices that could result in damage to this product or other property. -
Page 7: Ds2000 Series Overview
RIGOL DS2000 Series Overview DS2000 is a high-performance and low bandwidth digital oscilloscope developed on the basis of the Ultra Vision technique. DS2000, featuring rather deep memory depth, ultra-wide dynamic range, superb waveform capture rate and all-round trigger functions as well as hardware waveform record function and good display effect, is an... -
Page 8: Table Of Contents
Guaranty and Declaration ................I Safety Requirement ..................II General Safety Summary ................II Safety Terms and Symbols ................. IV DS2000 Series Overview ................V Chapter 1 Disassemble and Assemble ............ 1-1 Disassemble and Assemble Notices ............1-1 Outside View Drawing of the Instrument ............ 1-2 Disassemble the Rear Cover .............. -
Page 9: Chapter 1 Disassemble And Assemble
RIGOL Chapter 1 Disassemble and Assemble Chapter 1 Disassemble and Assemble Disassemble and Assemble Notices Notices: Do not disassemble the instrument unless for working requirement. Only authorized personnel can disassemble the instrument. Cut off the power supply before disassembling the instrument. -
Page 10: Outside View Drawing Of The Instrument
RIGOL Chapter 1 Disassemble and Assemble Outside View Drawing of the Instrument The figure below is the outside view drawing of DS2000. You need to get a basic understanding of the main parts of the instrument before disassembling and assembling the instrument. When disassembling or assembling the instrument, please follow the procedures and take care not to scratch the surfaces of the parts. -
Page 11: Disassemble The Rear Cover
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Rear Cover Rear Cover ② ① ② Figure 1-2 Disassemble the Rear Cover Part Explanations: ① 2 screws (#PM3*10 torx pan head screw; one on each side) at the handle groove. ② 2 screws (#PM/SW/FW3*8 torx pan head screw assembly; one on the inner side of the left and right supporting legs respectively) at the supporting legs at the bottom of the cover. -
Page 12: Disassemble The Rear Metal Cover
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Rear Metal Cover ① Rear Metal Cover Figure 1-3 Disassemble the Rear Metal Cover ① Part Exaplanation: ① 8 screws (nichel-plated #FM3*6#C1018# torx countersunk head screw; four on the top and bottom respectively) fixing the front metal panel and rear metal cover. -
Page 13: Disassemble The Fan
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Fan ① Figure 1-4 Disassenble the Fan Part Explanation: ① 4 screws (#PTF5*10 torx countersunk head self tapping screw) fixing the fan. Disassemble Steps: 1. Remove the 4 screws (①) fixing the fan using the screw driver (T10). -
Page 14: Disassemble The Power Module
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Power Module Power Module ② Power Cover ① Figure 1-5 Disassemble the Power Module Part Explanations: ① 4 screws (#PM/SW/ FW3*6 torx pan head screw assembly) fixing the power cover. ② 4 screws (#PM/SW/ FW3*6 torx pan head screw assembly) fixing the power module(note that one screw is not marked out in the figure). -
Page 15: Disassemble The Front Panel And Knobs
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Front Panel and Knobs ① ② ② ② ② ② ② ② ② ② Figure 1-6 Disassemble the Front Panel and Knobs Part Explanations: ① 9 knobs. ② 9 screws (#PM/SW/ FW3*6 torx pan head screw assembly) fixing the front panel. -
Page 16: Disassemble The Keyboard
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Keyboard ① Left Keyboard ① Main Keyboard ② Figure 1-7 Disassemble the Keyboard Part Explanations: ① 2 screws (nichel-plated #FM3*6#C1018# torx countersunk head screw) fixing the left keyboard. ② 5 screws (M3*6 pan head torx) fixing the main keyboard. -
Page 17: Disassemble The Lcd
RIGOL Chapter 1 Disassemble and Assemble Disassemble the LCD ① Figure 1-8 Disassemble the LCD Part Explanation: ① 4 screws (nichel-plated #FM3*6#C1018# torx countersunk head screw) fixing the LCD. Disassemble Steps: Remove the 4 screws (①) fixing the LCD using the screw driver (T10) and remove the screen line connecting the main board. -
Page 18: Disassemble The Top Keys
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Top Keys Top Key Spacer Top Keys Top Key Board Top Key Clip Top Key Support ① Figure 1-9 Disassemble the Top Keys Part Explanation: ① 1 screw (M3*6 pan head torx) fixing the top key support. -
Page 19: Disassemble The Main Board
RIGOL Chapter 1 Disassemble and Assemble Disassemble the Main Board ① ① ① ① ① ① ① ① ① ① ① ① ① ① ① Figure 1-10 Disassemble the Main Board Part Explanation: ① 15 screws (M3*6 pan head torx) fixing the main board and front metal panel. -
Page 20: Assemble Procedures
RIGOL Chapter 1 Disassemble and Assemble Assemble Procedures The assemble procedures are the reverse of the disassemble procedures. Check whether the cables are correctly connected and whether all the screws are installed after each step of assemble. You are recommended to follow the order and method introduced above when disassembling and assembling the instrument to avoid damage to the instrument due to improper operation and to save your time. -
Page 21: Chapter 2 Troubleshooting&Maintenance
The commonly encountered failures and their solutions are listed below. When you encounter those problems, please solve them following the corresponding steps. If the problem remains still, please contact RIGOL and provide your device information (acquisition method: Utility System System Info). - Page 22 USB storage being used with this oscilloscope is no larger than 8 GBytes. (4) Restart the instrument and then insert the USB storage to check it.If the USB storage still can not be used normally, please contact RIGOL. DS2000 Service Guide...
-
Page 23: Maintenance
RIGOL warrants that its products mainframe and accessories will be free from defects in materials and workmanship within the warranty period. If a product is proven to be defective within the respective period, RIGOL guarantees the free replacement or repair of products which are approved defective. To get repair service, please contact with your nearest RIGOL sales and service office. -
Page 24: General Care And Cleaning
RIGOL Chapter 2 Troubleshooting&Maintenance General Care and Cleaning General Care: Do not store or leave the instrument in where the instrument will be exposed to direct sunlight for long periods of time. Cleaning: Clean the instrument regularly according to its operating conditions. To clean the exterior surface, perform the following steps: Disconnect the instrument from all power sources.
