PosterBOX ID
Installation Guide for 701946-6WLNP1, -6WSNP1
WARNING: Risk of electrical shock. New installation and LED Retrofit Kit installation requires knowledge of sign electrical systems. If not qualified, do
not attempt installation. Contact a qualified electrician. Follow all NEC and local codes. PosterBOX ID is not suitable for submersion or direct exposure
to water for extended periods of time. AVERTISSEMENT: Risque de choc électrique. La nouvelle installation et l'installation du kit de modification à
LED nécessitent la connaissance des systèmes électriques de signalisation. Si non qualifié, ne tentez pas l'installation. Contactez un électricien qualifié.
Suivez tous les codes NEC et locaux. PosterBOX ID ne convient pas à la submersion ni à l'exposition directe à l'eau pendant de longues périodes.

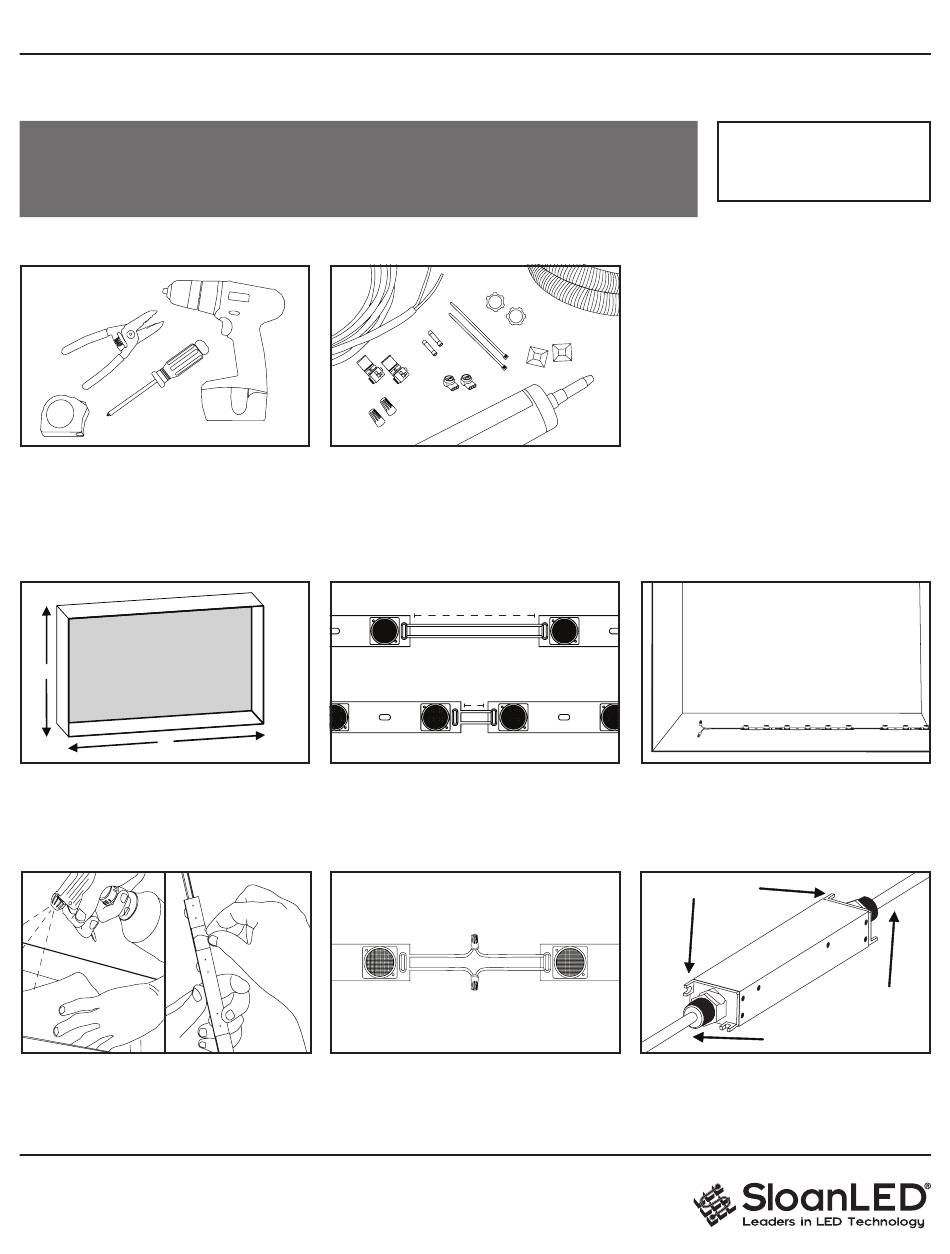

New Installation
Recommended tools:
• Measuring tape • Drill
• Wire strippers • Screwdriver
Layout Guidelines
It is recommended to test LED density in a sample cabinet to evaluate brightness, uniformity, and color.
If you have questions or require assistance in testing, please contact your SloanLED Customer Service Representative.
Y
X
1. Measure sign box to determine quantities of
PosterBOX ID (see Power Supply capacity
table on page 3).
2b. If desired, double-stick tape can be used to mount
modules. Before mounting, clean mounting
surfaces inside of sign box with rubbing alcohol
and allow to dry for proper tape adhesion.
From factory
For best performance
TIP: For best results, space Long modules 2/m (19.7" on
center) and Short modules 4/m (9.8" on center). For best
performance in a single-sided box, mount modules on
returns, near rear wall of box (~.5 – .75" [1 – 2 cm]). For a
double-sided sign box, mount modules in center of returns.
3. Connections: Modules may be connected
in series or parallel. Modules should not be
looped to create a closed circuit. Cap all
unused, exposed wire ends.
For New Installation, proceed
with Step 1 below. For Retrofit
Installations, begin with
Retrofit Instructions on page 2.
Components list:

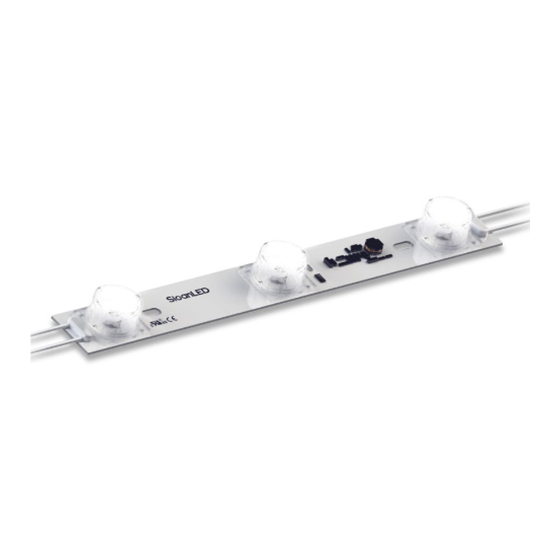

• SloanLED PosterBOX ID modules,
model numbers 701946-(X)WLNP1 or
701946-(X)WSNP1
• SloanLED 24 V Class 2 output power supply (refer to
"SloanLED Power Supply Guide for Sign
Products" for appropriate 24 V power supply models)
• UL approved 18 AWG (1 mm²),
or larger diameter supply wire
• UL approved wire connectors appropriate
for wire gauge used
• Optional for mounting: Electrical grade
silicone, #8 (M4) sheet metal screws,
or 5/32" (4 mm) aluminum rivets
2a. Secure modules to sides of sign box using
#8 (M4) pan head sheet metal screws or
5/32" (4 mm) aluminum rivets.
Mounting Tabs
Secondary Wires
4. Mount Power Supply: Identify primary
wires, secondary wires, and location of
mounting tabs.
Primary Wires
PAGE 1 OF 3
